Stone Round AERO Colorful Chainring Inward 4mm Offset 110BCD 1x for Shimano 105 R7000 UT R8000 DA R9100 R9200 5800 6800 9000 Road Bike 12s 12 Speed
Aluminum Plate + Aluminum Chainring Set
Offset: Inward 4mm

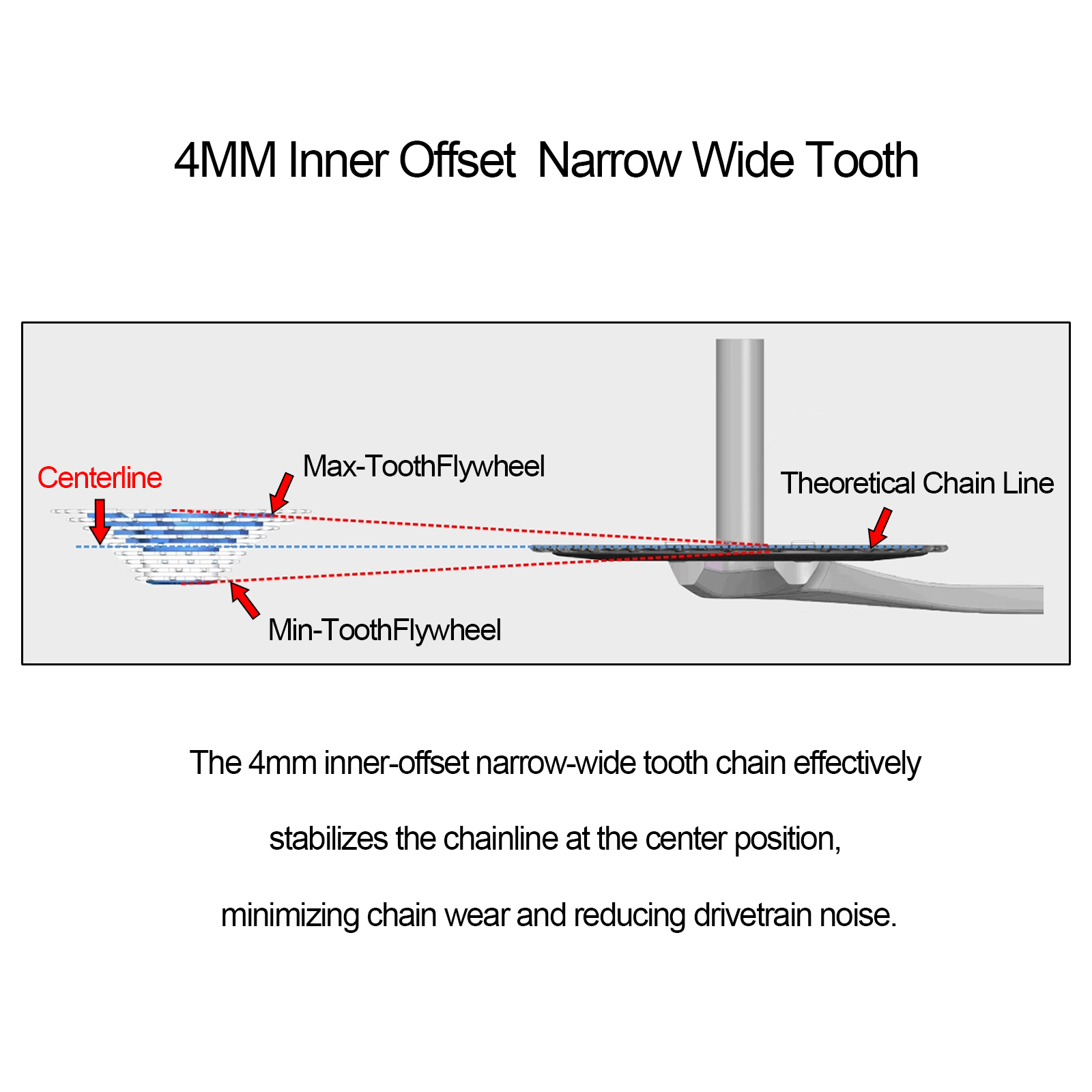

Advantages of 4mm Inward Offset Narrow-Wide Chainring
The inward offset narrow-wide chainring, when installed, aligns with the factory-set chainline of the crank.
This means that when the chain is on the middle sprocket of the rear derailleur, the chainline is parallel to the designed chainline of the bike frame (cassette centerline).
The chain’s deflection angle is symmetrical when on the largest and smallest cassette sprockets, significantly reducing wear on the narrow-wide chainring and minimizing chain noise.
Material: Alu 7075
Thickness: 4mm for chainring and 4mm inner spider. Totally 8mm.
Material Hardness: HB150
CNC process precision:0.03mm
Size: 110 BCD 4arms
Package:1 chainring+spider with bolts
This chainring is design for 1x speed bike, not support 2x speed bike and not support front shifter and derailleur.
Chain Speed support:
9-10-11-12 speed(MTB chain)
9-11s( for Sram Road bike chain)
9-12s(for shimano Road bike chain)
Default Not support AXS flattop chain.
If want tooth shape for sram axs flattop chain, please send us a message to customize and pay extra surcharge.
Compatibility

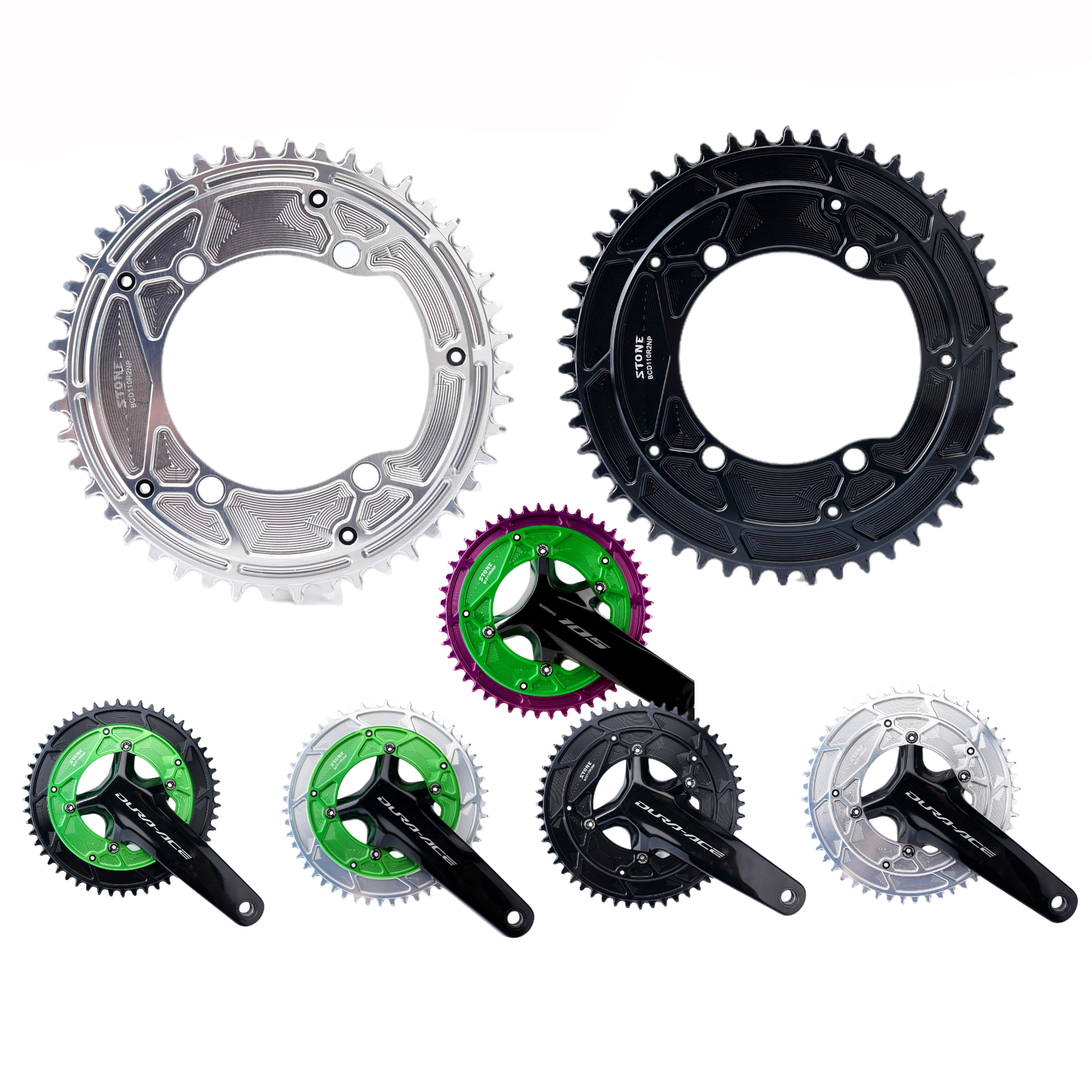

This chainring is compatible with Shimano R7100/R8100/R9200 cranks (downward compatibility with R7000/R8000/R9100/FC-5800/6800/9000).
Can be installed with 110 BCD four-arm power meter spiders.
Compatible with STONE-manufactured 110 BCD four-arm spiders.
Surface Treatment

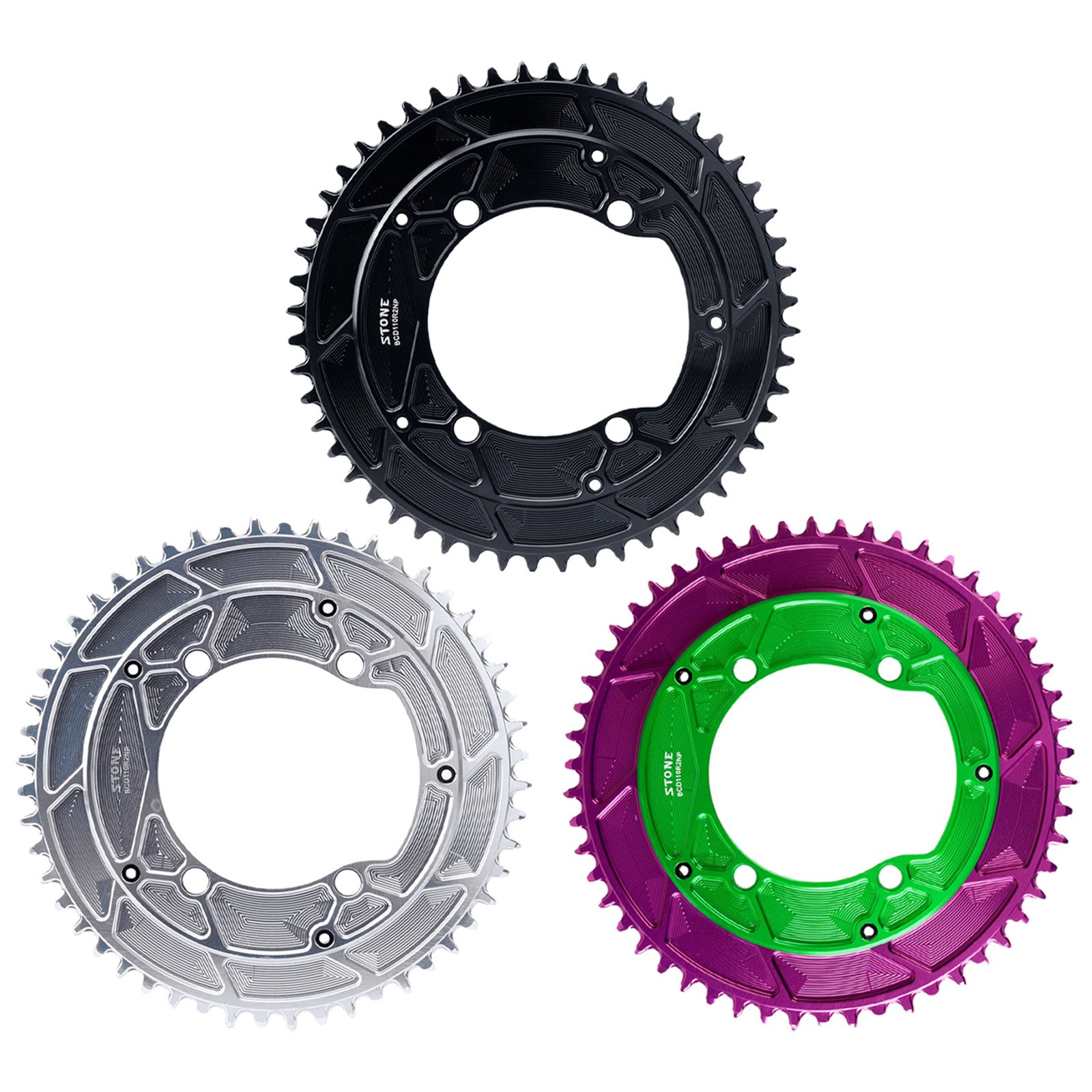

The product undergoes anodizing treatment to prevent aluminum alloy from oxidizing and turning black over time. Colors for the adapter plate are selectable.
Easy Installation
The chainring comes with aluminum bolts made of 7075 aluminum alloy, featuring double-sided hexagonal design for locking. Easy to install.
The adapter plate and chainring bolts are pre-installed for hassle-free assembly and great customer feedback.
Combination of offset chainring exclusively developed by Stone.
The combination of a 7075 adapter plate and 7075 aluminum alloy teeth ensures an offset of 4mm for the narrow-wide chainring.
Applicable to various crank models, compatible with BCD110 double, BCD110 single, BCD130 triple, etc.
The larger adaptability allows the use of 7075 adapter plates to facilitate part replacements, or swapping adapter plates and the crank with different mounting hole orientations.
STONE offers more than just the fully aluminum closed single chainring with a 4mm inward offset. Another option features a combination of a carbon fiber plate and an aluminum alloy chainring. This design is lighter in weight while maintaining sufficient strength. It has been on the market for over two years and has gained recognition from many customers.
