STONE 110BCD 4-Arm Wide Spider – Shimano 12-Speed Fitment and Specifications
This STONE 110BCD 4-arm widen-style spider is built for Shimano 12-speed double chainrings and STONE 110R2B chainrings. Offered in black or silver, it fits road cranksets with SRAM 3-bolt, SRAM 8-bolt, EASTON EC90, and ROTOR Aldhu interfaces — including cranks matched to Shimano R7100, R8100, and R9200 groupsets, as well as SRAM AXS FORCE, RIVAL, and XPLR 12-speed/13-speed setups.
Product Overview

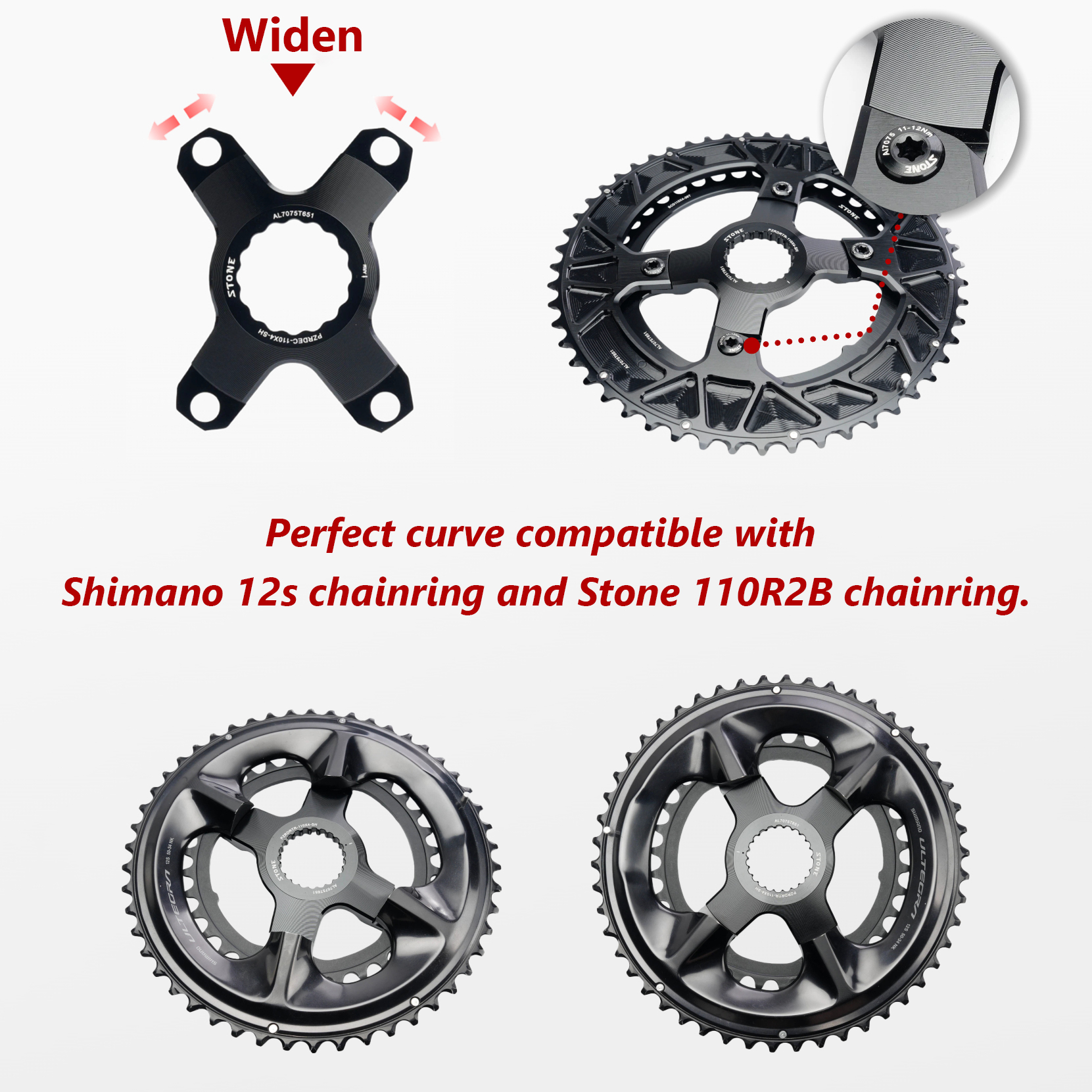

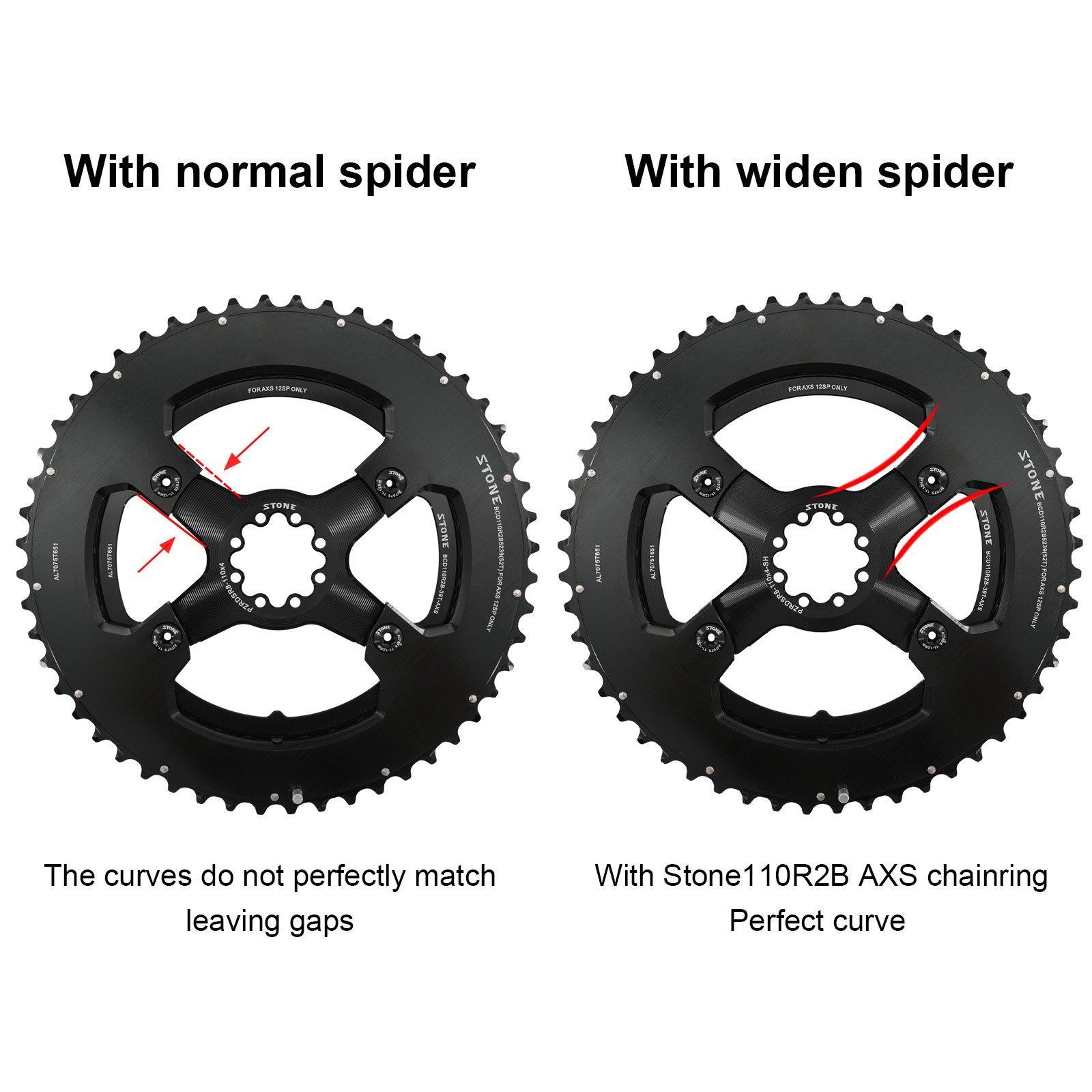

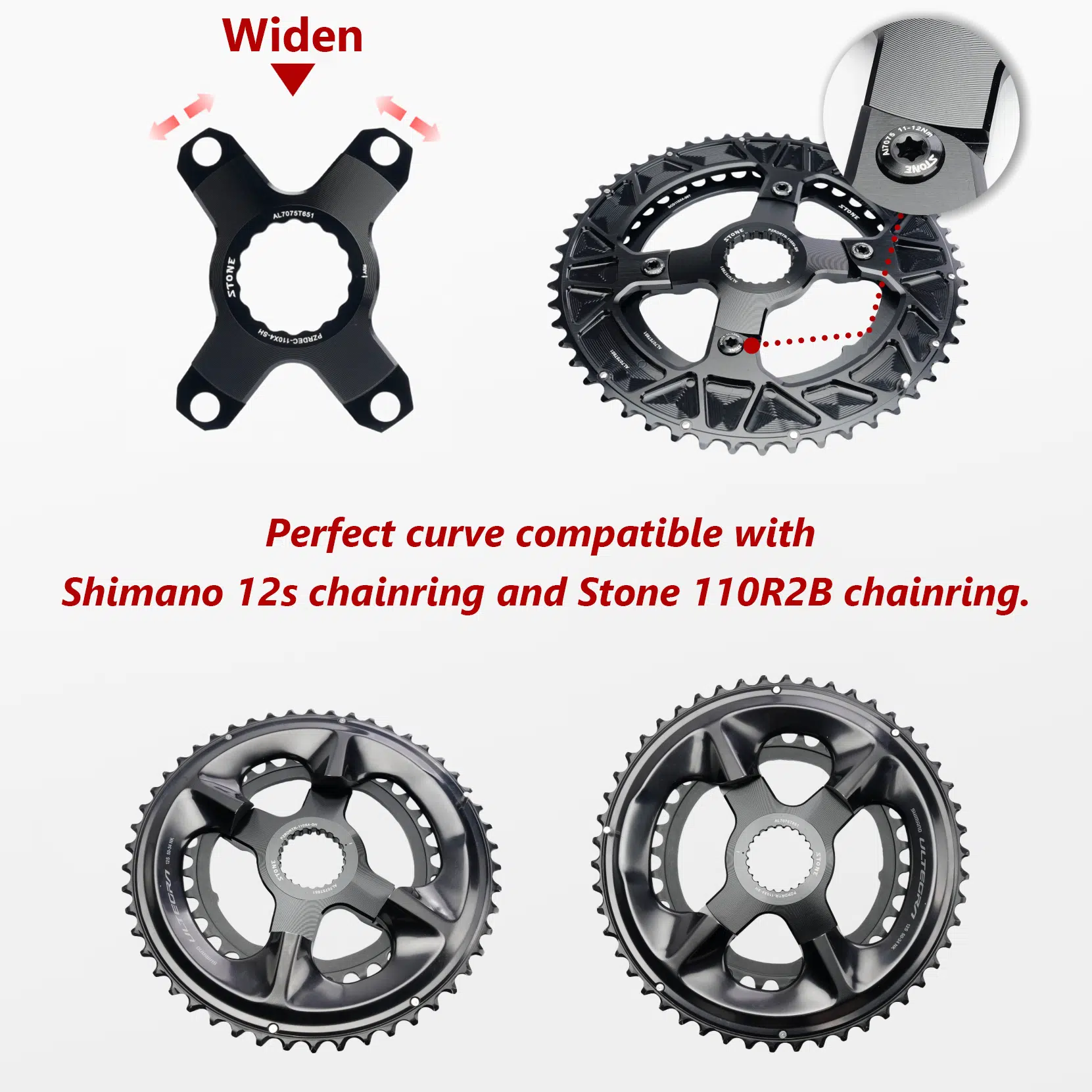

- The widen-style spider is designed around the Shimano 12-speed chainring curve and the STONE 12-speed double chainring 110R2B curve, so the chainring sits perfectly true once installed.

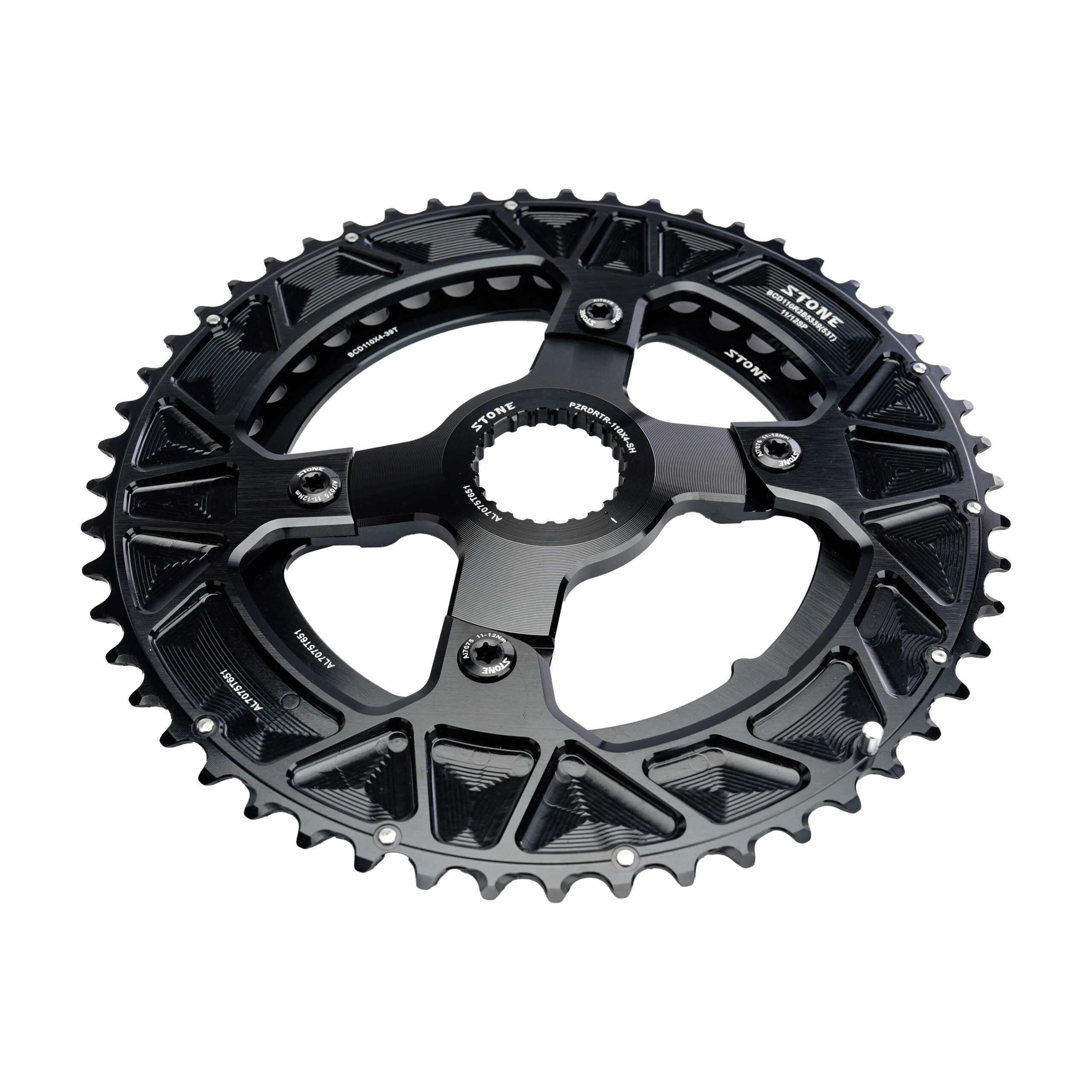

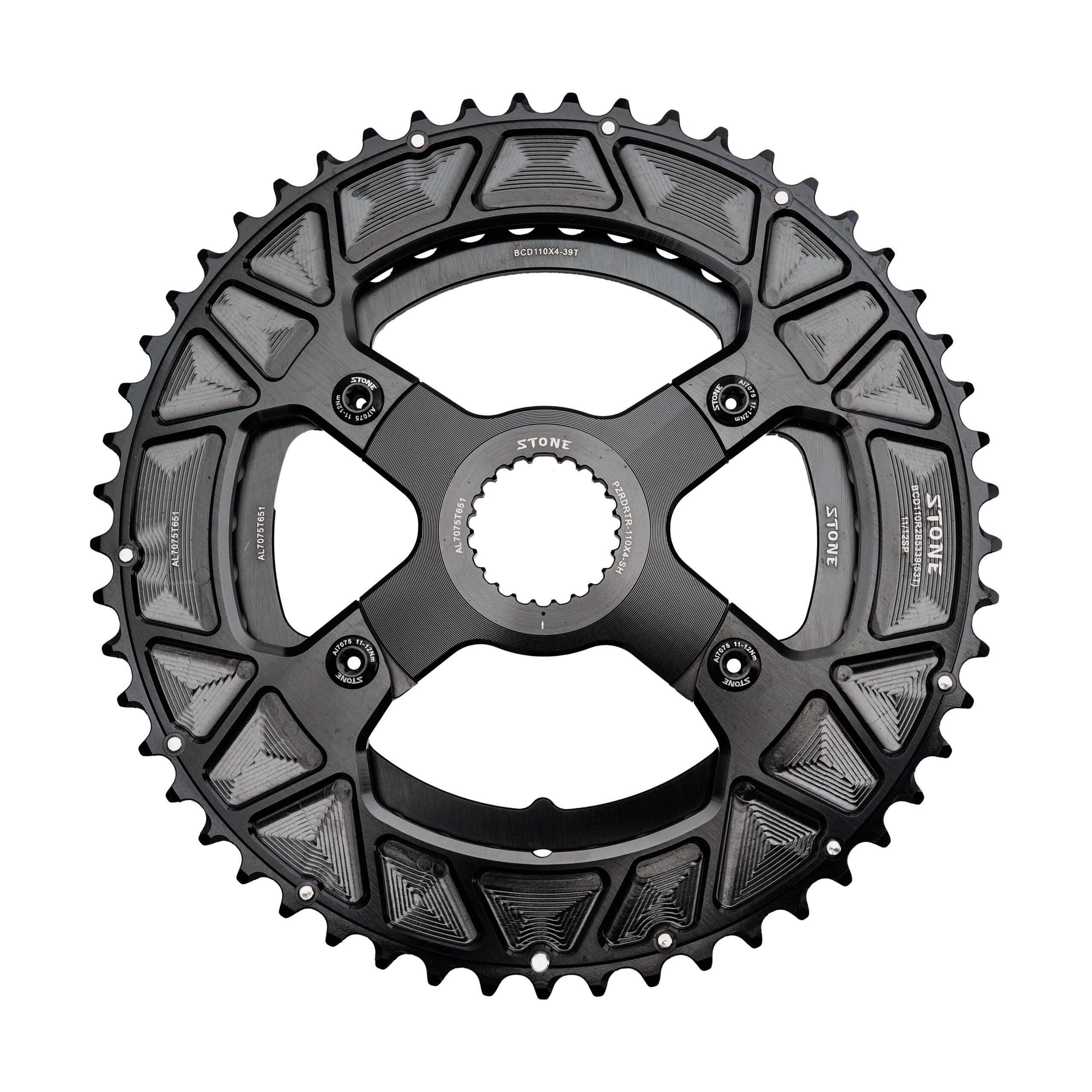

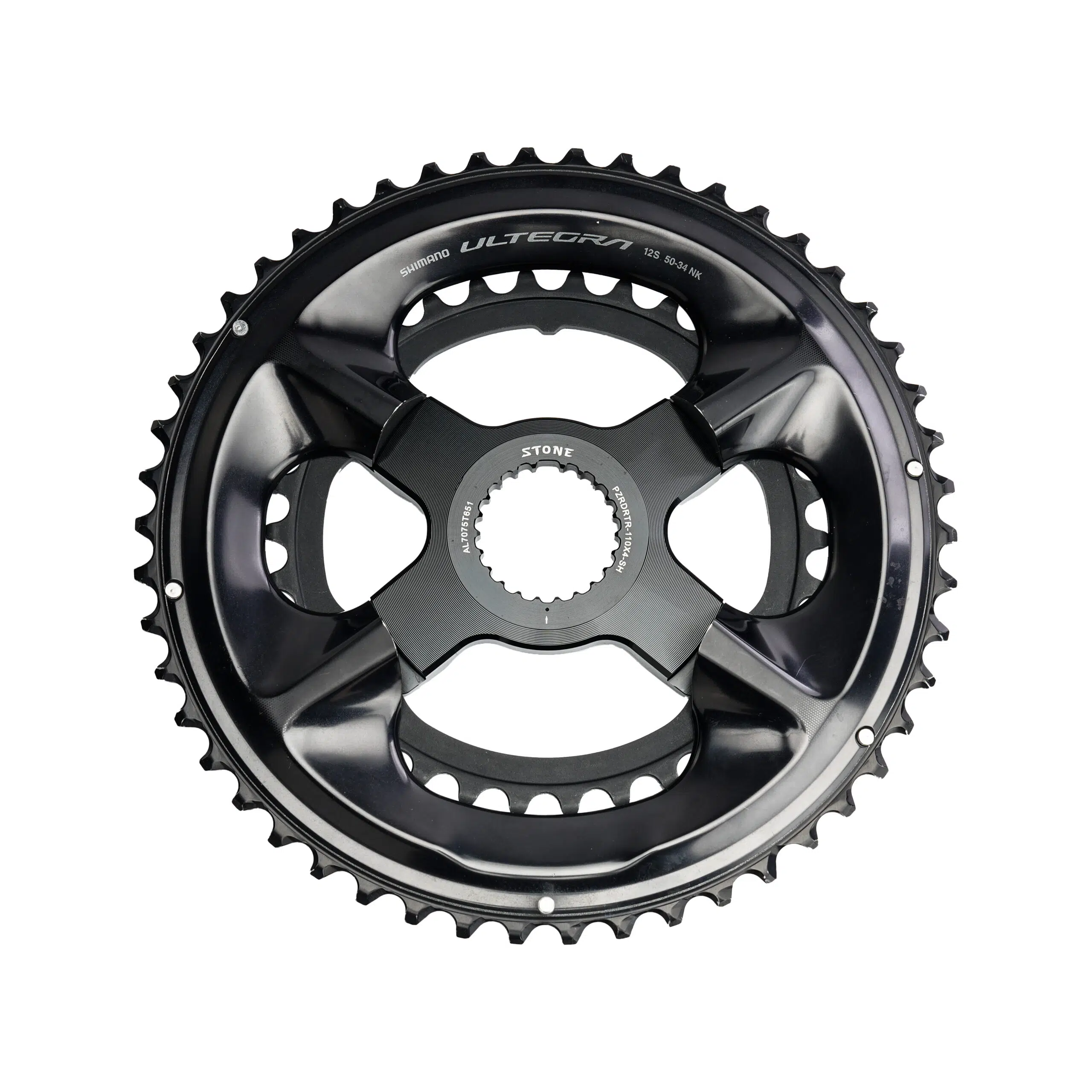

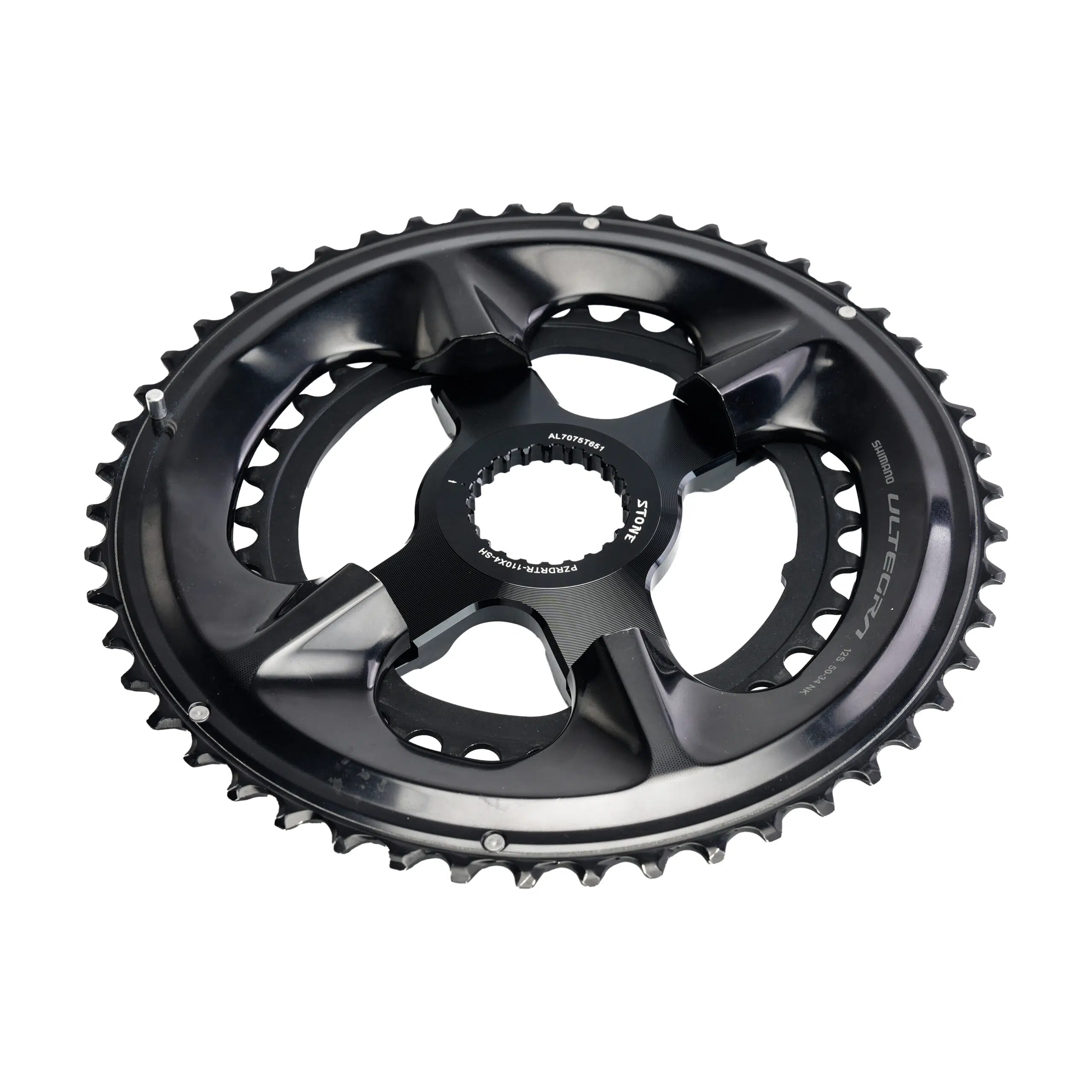

- Works with chainrings for R7100, R8100, R9200, other Shimano 12-speed chainrings, and STONE 110R2B chainrings.
- Accepts two chainrings and supports both 1x and 2x drivetrains.

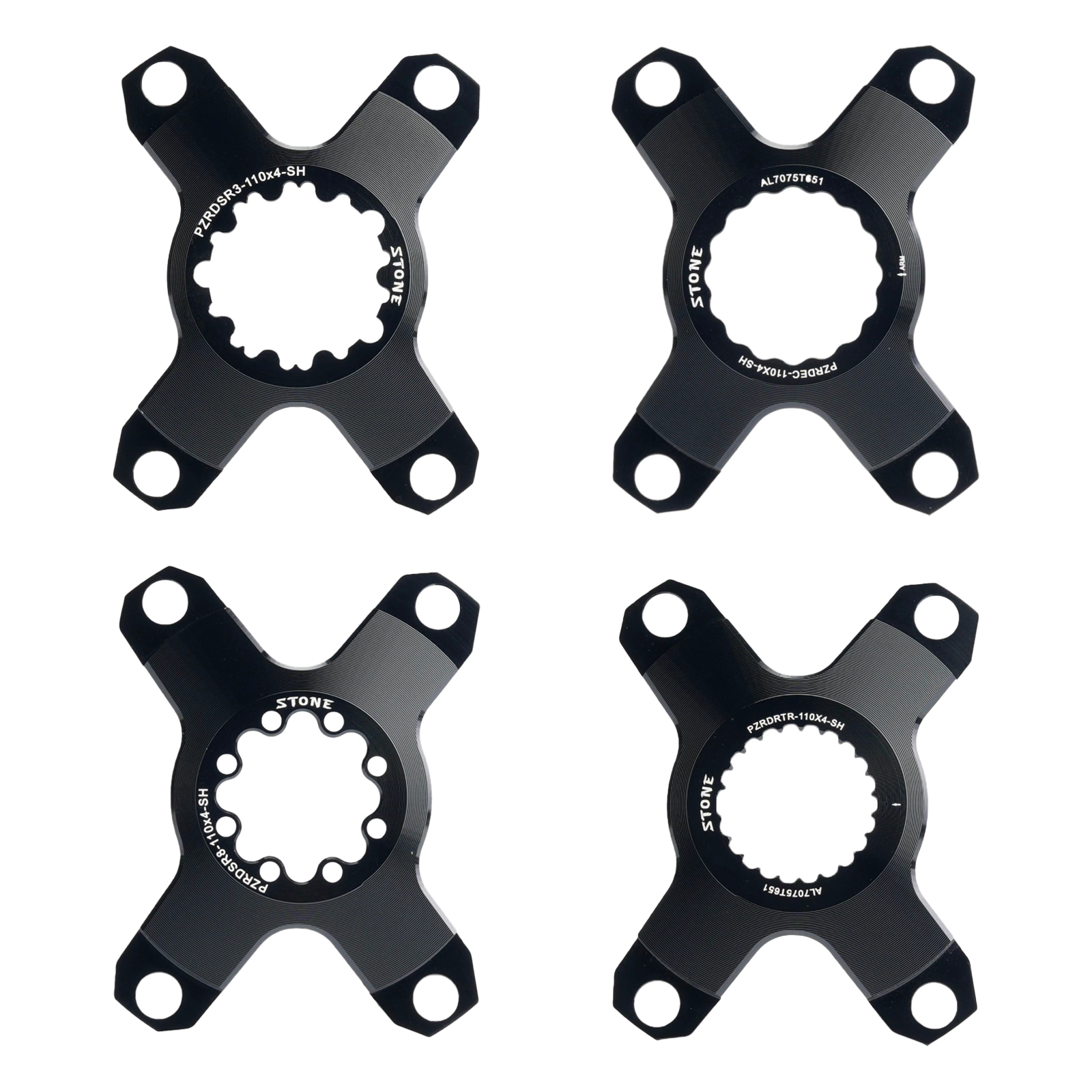

Compatible Interfaces
| Interface | Compatibility |
|---|---|

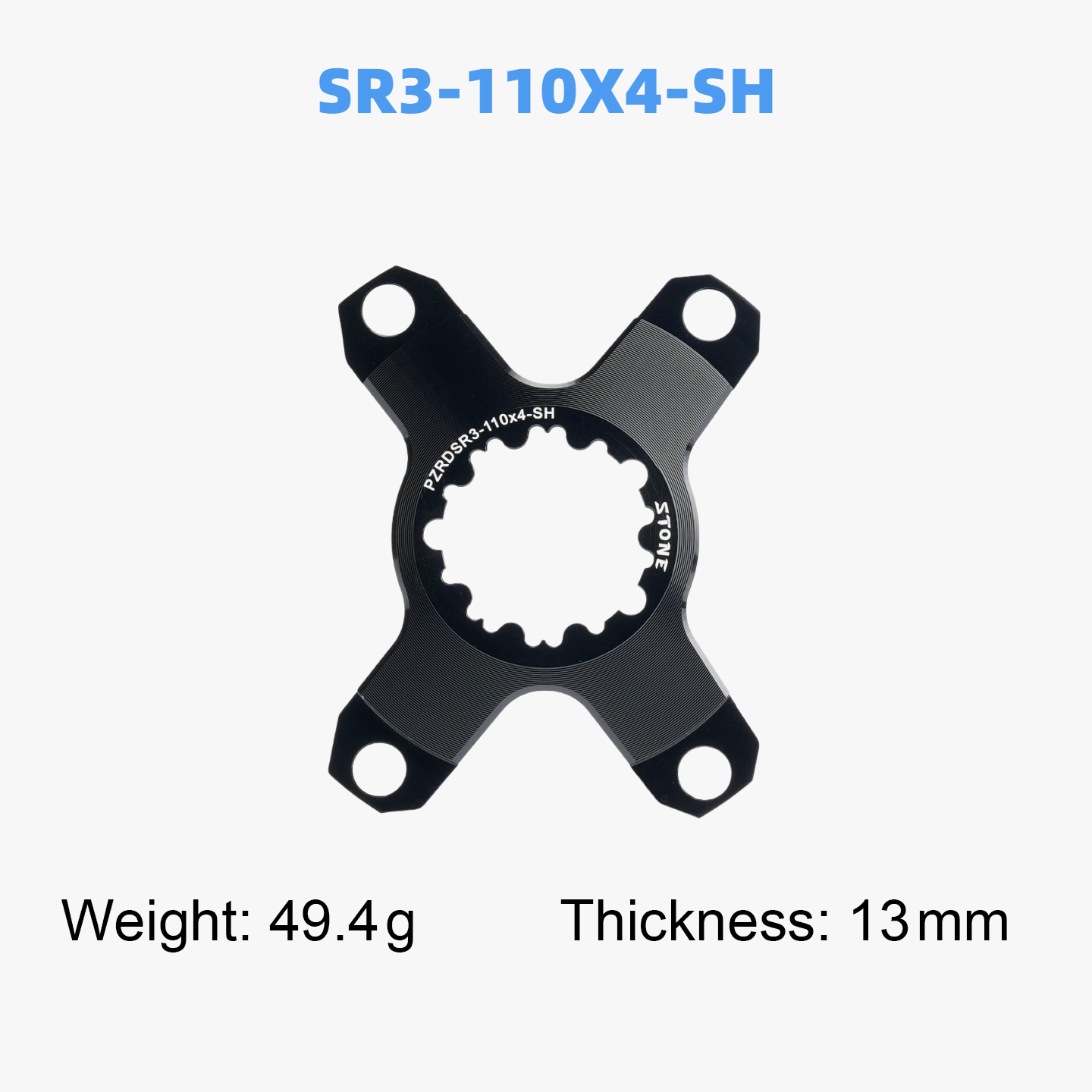

| SRAM 3-bolt | Compatible |

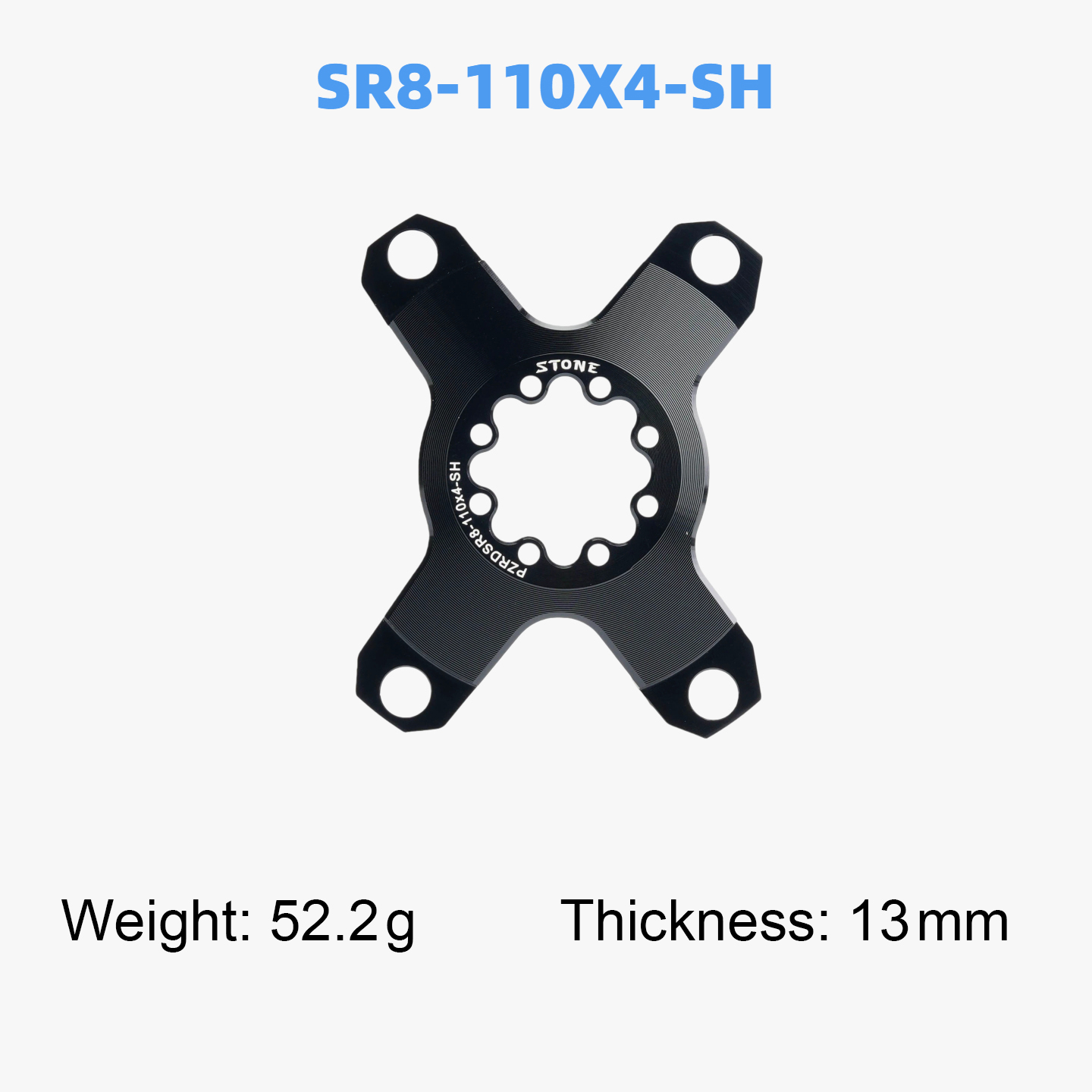

| SRAM 8-bolt | Compatible |

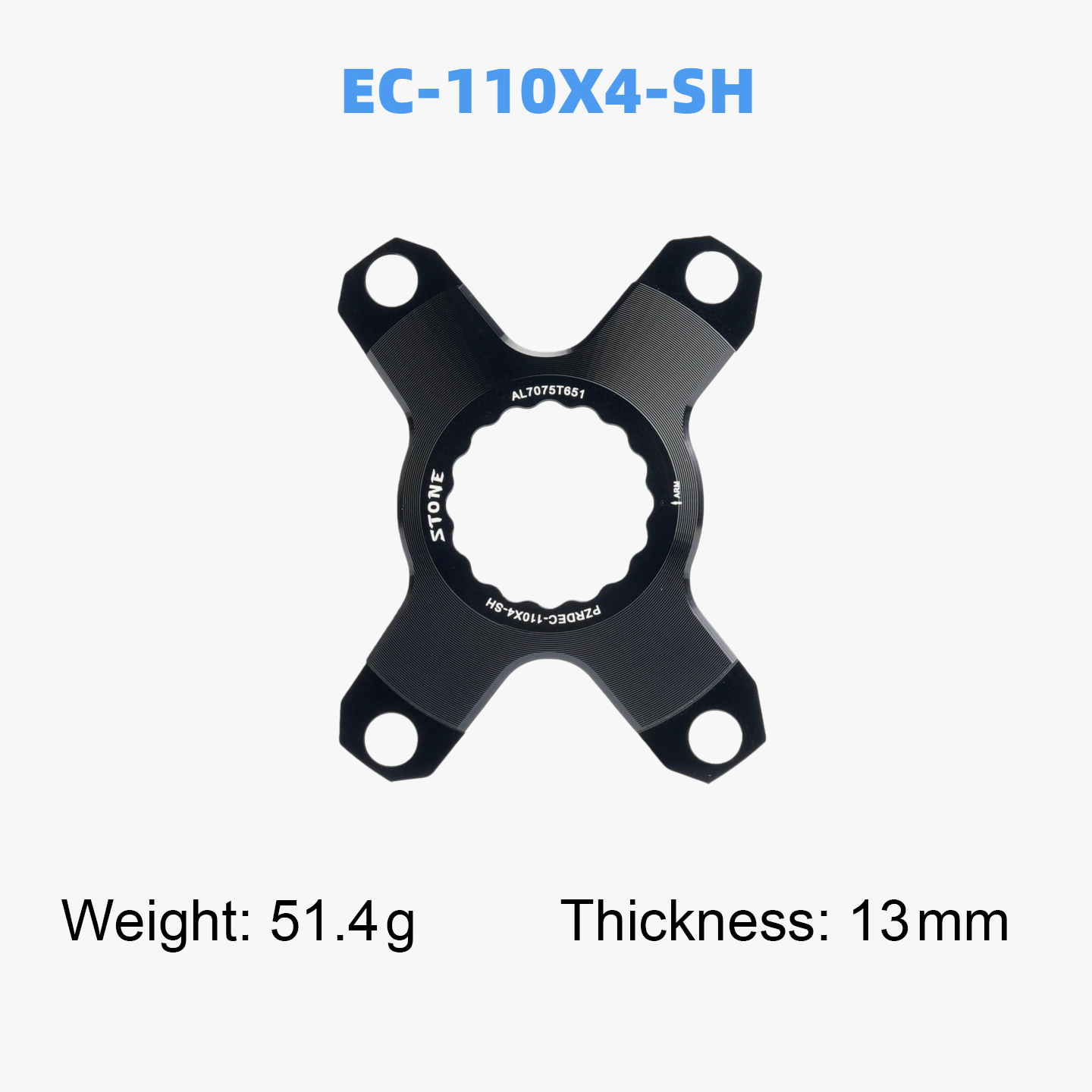

| EASTON EC90 | Compatible |
| ROTOR Aldhu | Compatible |
Suitable for road cranksets that use these interface styles.
Please check the backside of your crank before ordering.

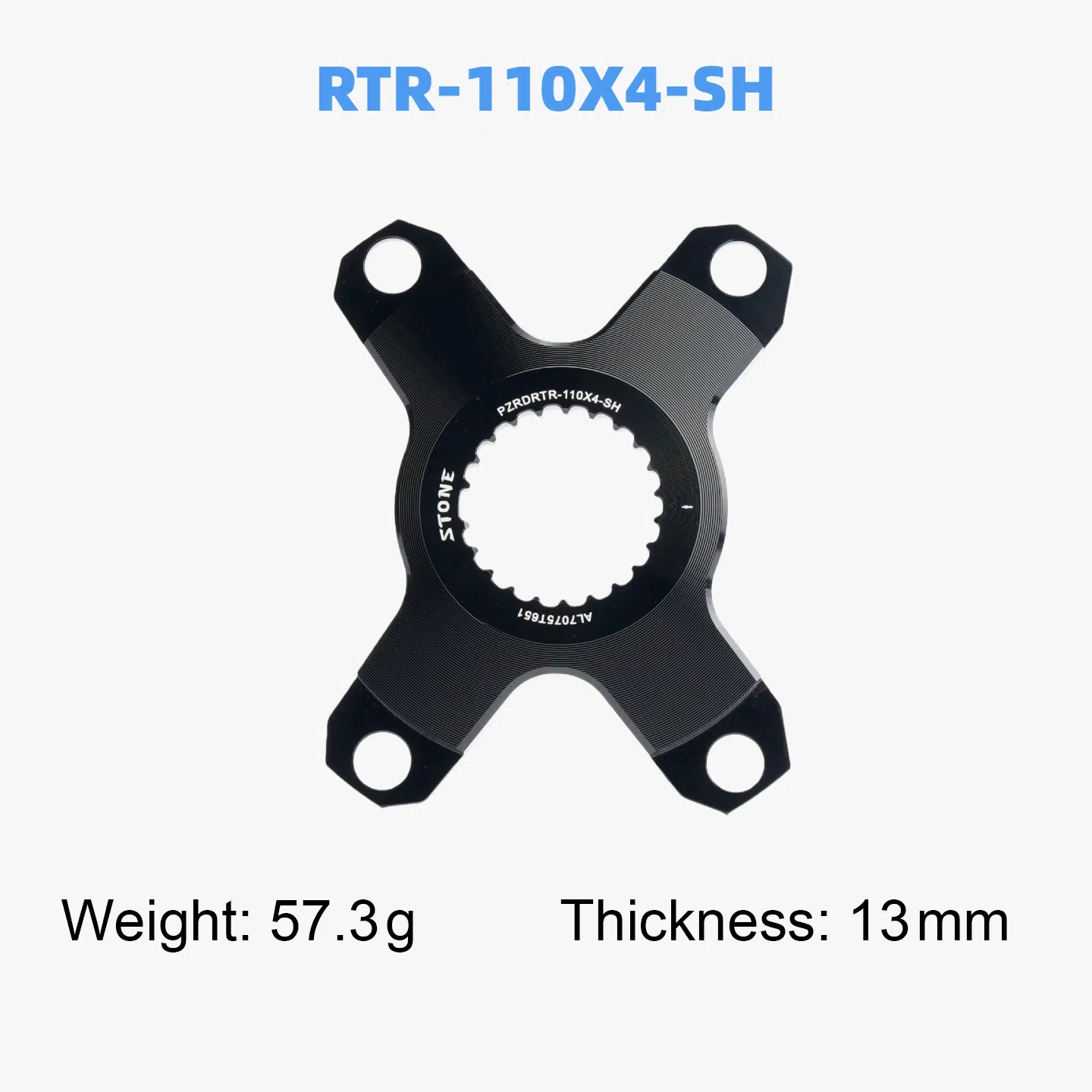

Technical Specifications
- BCD: 110mm
- Arms: 4 arms, widen style
- Material: Aluminum 7075, full CNC machined

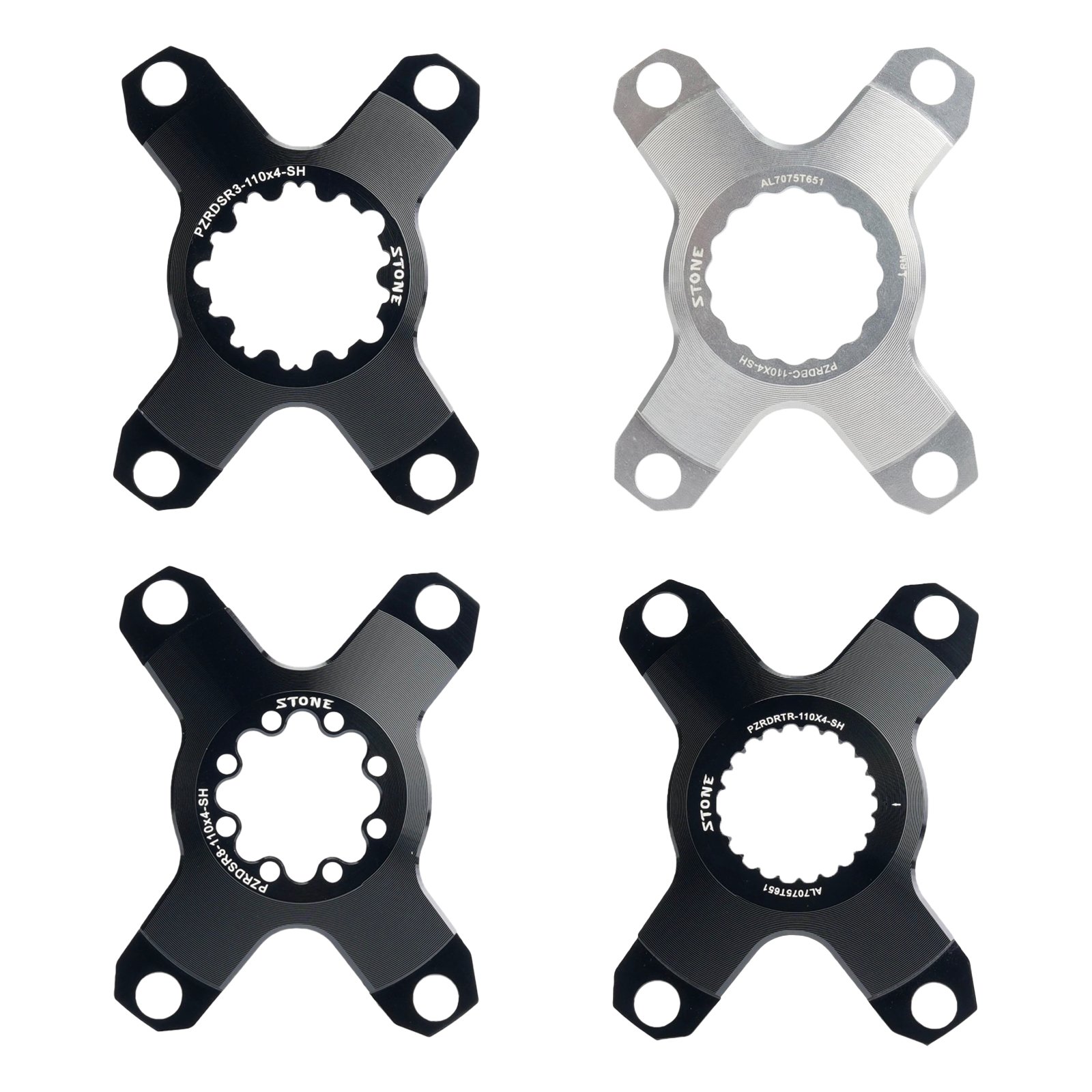

- Color: Black / silver, anodized
- Weight: 57g
- Offset: 0mm, matching Shimano parameters
Precision & Performance
- High-precision machining with tolerances up to 0.03mm
- No side play after installation
- Designed to match the Shimano 12-speed chainring curve
- Supports both double and single chainring setups
Important Notes
- Supports 1x and 2x speed setups
- This spider can mount a double chainring or a single chainring
- Please check your crank interface type before ordering
