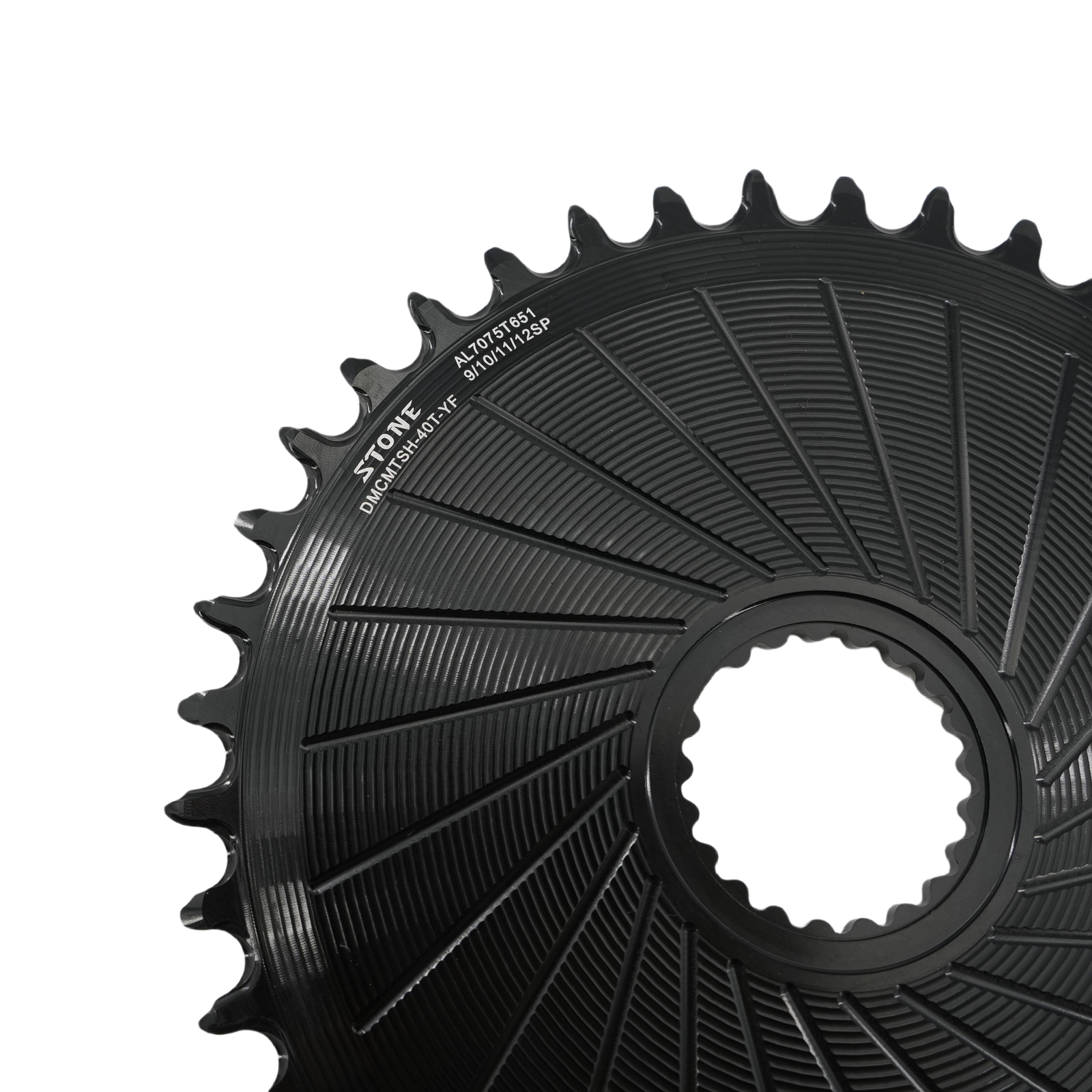

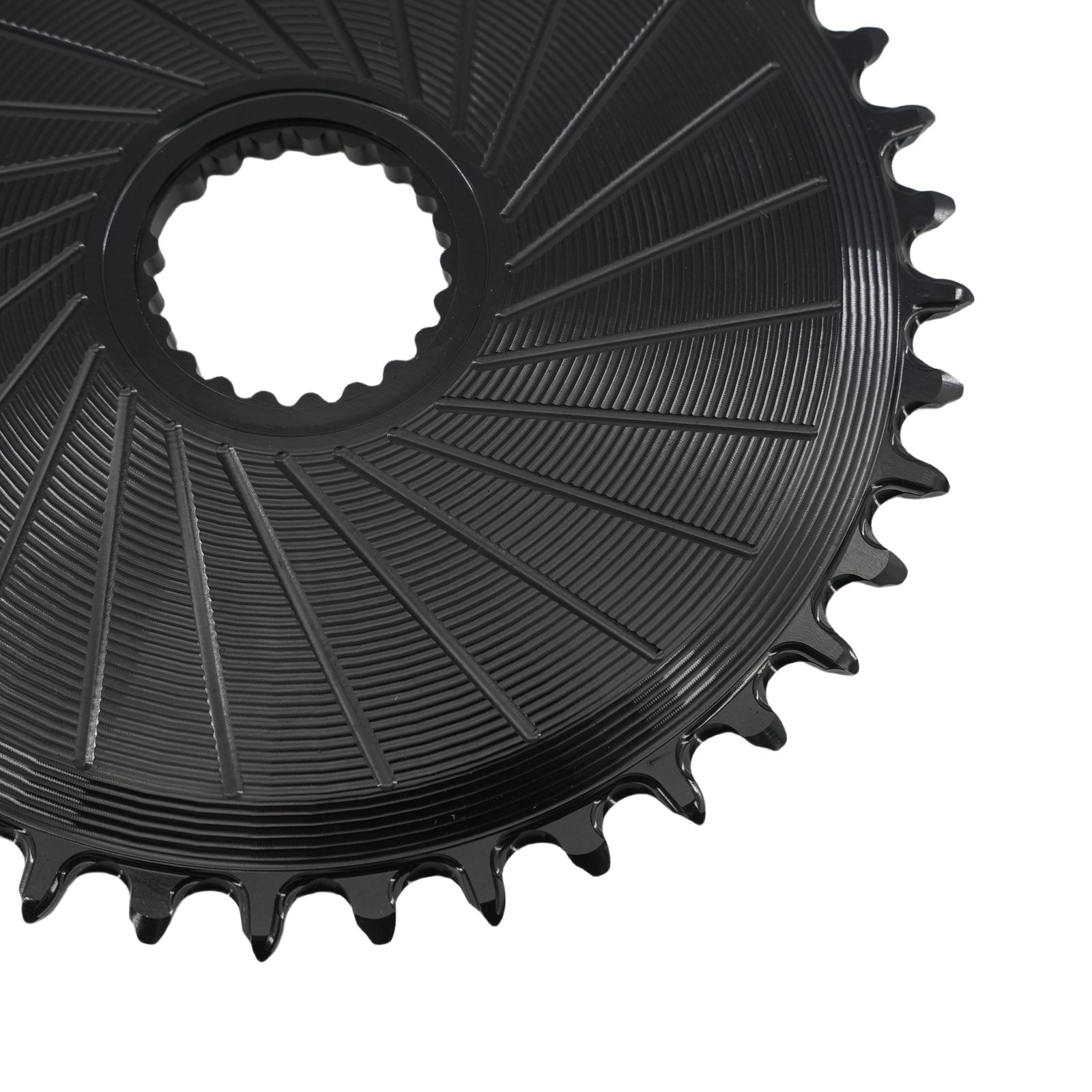

The STONE Direct Mount narrow-wide chainring is designed for modern Shimano MTB cranksets and 1x drivetrain systems.
Made from Aerospace Grade 7075-T651 aluminum alloy from Aleris USA, this chainring offers excellent stiffness, durability, and riding performance.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | STONE Direct Mount Narrow Wide Chainring |
| Material | Aerospace Aluminum 7075-T651 from Aleris USA |
| Surface Finish | Anodized |
| Standard Colors | Black, Silver |
| Thickness | 7 mm |
| Hardness | HB150 |
| Offset | 3 mm |
| Chainline | 52 mm |
| Speed Compatibility | 9 / 10 / 11 / 12 Speed |
| Chain Compatibility | 9-12 Speed Chains |
| Tooth Profile | Narrow Wide |
| Drivetrain Type | 1x MTB Drivetrain |
Key Features
- Designed for Shimano Direct Mount MTB cranksets
- 3mm offset for 52mm chainline
- Compatible with 9 / 10 / 11 / 12-speed chains
- Made from Aerospace Aluminum 7075-T651
- Precision CNC-machined with 0.03 mm accuracy
- Wolf-tooth narrow-wide tooth profile
- Improved chain retention and anti-chain-drop performance
- Better mud clearance and self-cleaning ability
- Reduced drivetrain noise
- Black and silver anodized colors available

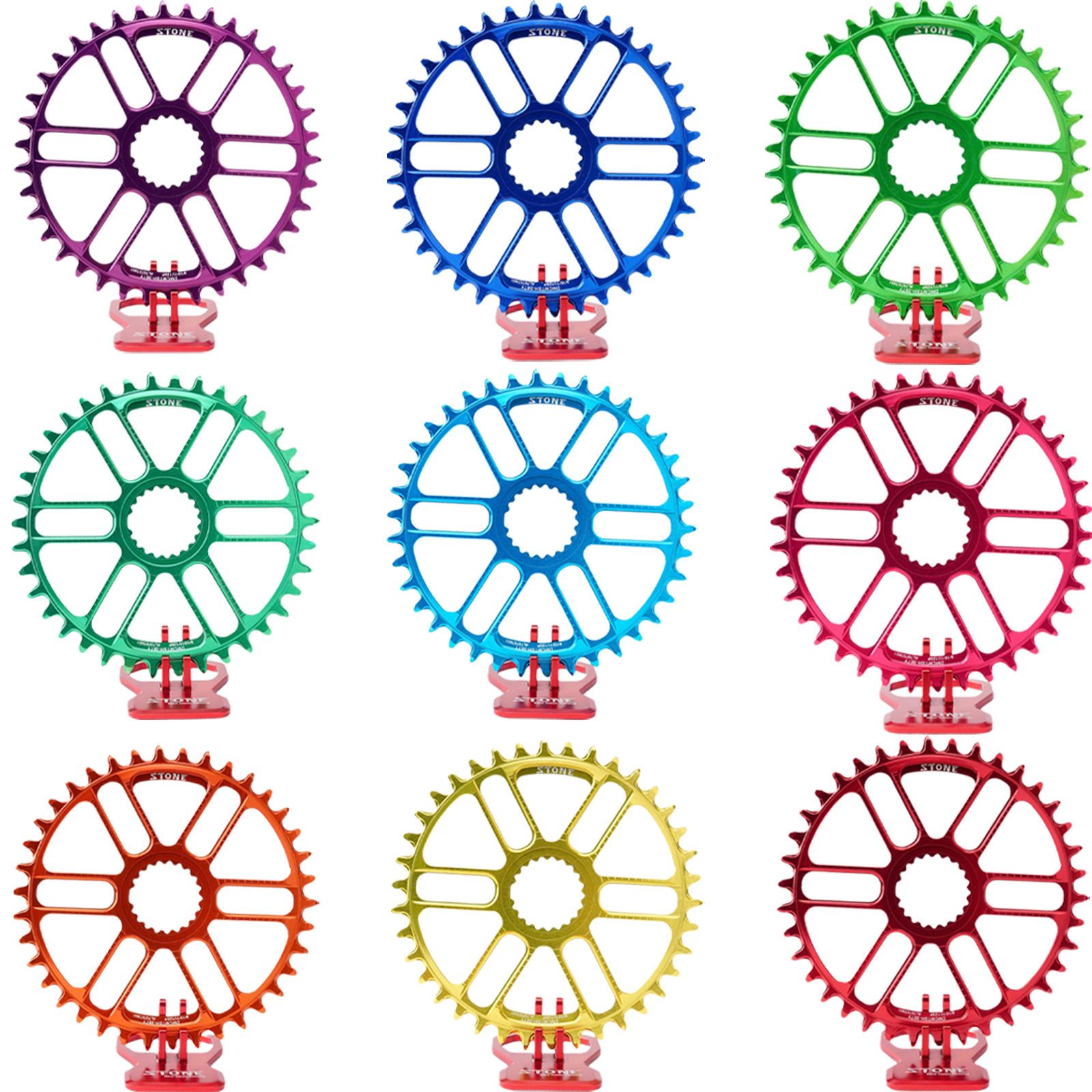

- Hollowed style available in multiple custom colors: Rose Pink,Red,Purple,Golden,Ocean Blue,Orange Copper,Gemstone Blue,Bright green,Bright Golden,Bright Blue,Apple Green.
Compatible Cranksets
This chainring fits the following Shimano Direct Mount cranksets:
- For Shimano XTR M9100
- For Shimano XT M8100
- For Shimano SLX M7100
- For Shimano Deore M6100
- For Shimano MT-900
- For Shimano M9200
- For Shimano M9220
Please confirm your crank interface before ordering.
Shimano 12-Speed Quick Link Notice
If you are using a Shimano 12-speed chain, please note:
The original Shimano 12-speed quick link may be too narrow for this chainring.
We recommend replacing the original Shimano 12-speed quick link with another compatible 12-speed quick link, such as:
- KMC
- YBN
- SUMC
- Other compatible 12-speed quick links
This helps ensure smoother installation and better chain compatibility.

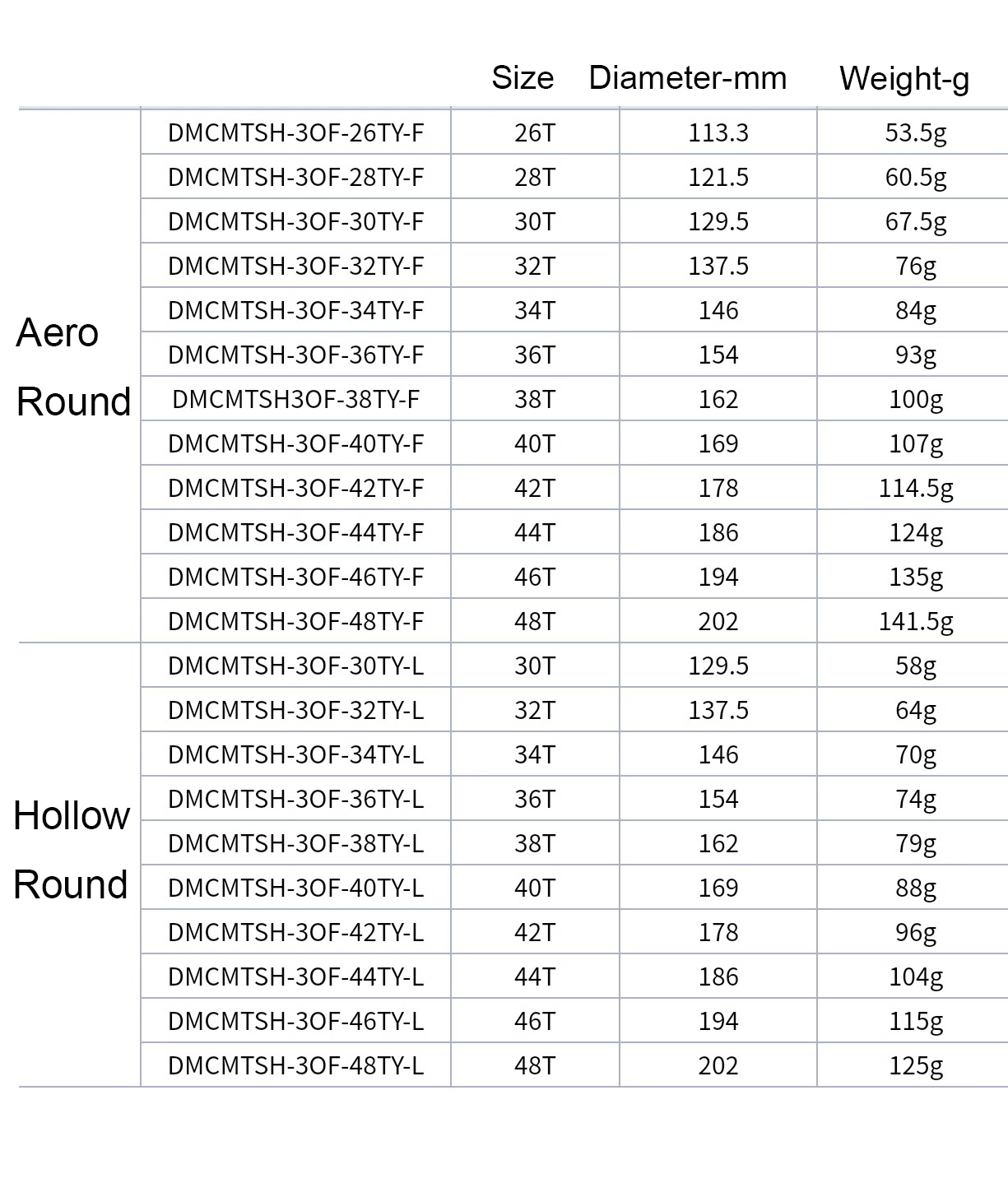

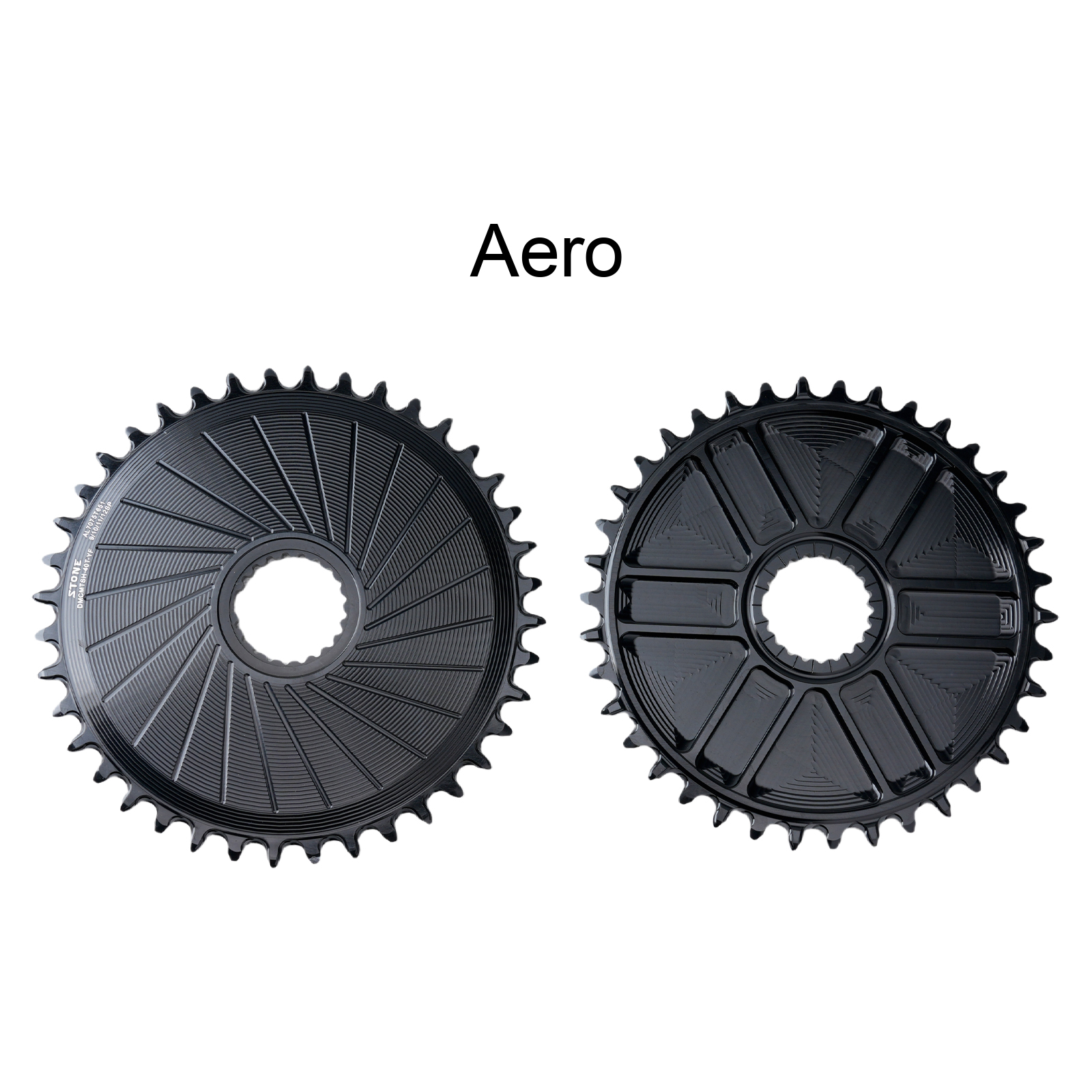

Size, Diameter & Weight — Aero Round
| Teeth | Diameter | Weight |
|---|---|---|
| 26T | 113.3 mm | 53.5 g |
| 28T | 121.5 mm | 60.5 g |
| 30T | 129.5 mm | 67.5 g |
| 32T | 137.5 mm | 76 g |
| 34T | 146 mm | 84 g |
| 36T | 154 mm | 93 g |
| 38T | 162 mm | 100 g |
| 40T | 169 mm | 107 g |
| 42T | 178 mm | 114.5 g |
| 44T | 186 mm | 124 g |
| 46T | 194 mm | 135 g |
| 48T | 202 mm | 141.5 g |
Weight may vary slightly due to manufacturing tolerance.
Package Includes
- 1 × Bike Chainring
