STONEDW Direct Mount Single Chainring | AL7075 CNC | For SRAM DUB WIDE Road/Gravel
Powerful Riding Starts with a Perfect Chainring
Engineered from imported AL7075-T651 aluminum with 150HB hardness, this direct-mount narrow-wide single chainring is specifically designed with a 6.5mm offset for SRAM DUB WIDE Road/Gravel cranksets, delivering stiff, precise, and lightweight power transfer.
IMPORTANT: Crank Spindle Compatibility
This chainring’s 6.5mm offset is designed specifically for SRAM DUB WIDE spindle cranksets (Road/Gravel Wide version) — NOT the standard DUB spindle.
Before purchasing, please confirm your crankset is the DUB WIDE version. DUB WIDE cranksets are typically used with wider tire clearance road/gravel frames. Installing on a standard DUB crank may result in incorrect chainline/Q-factor.

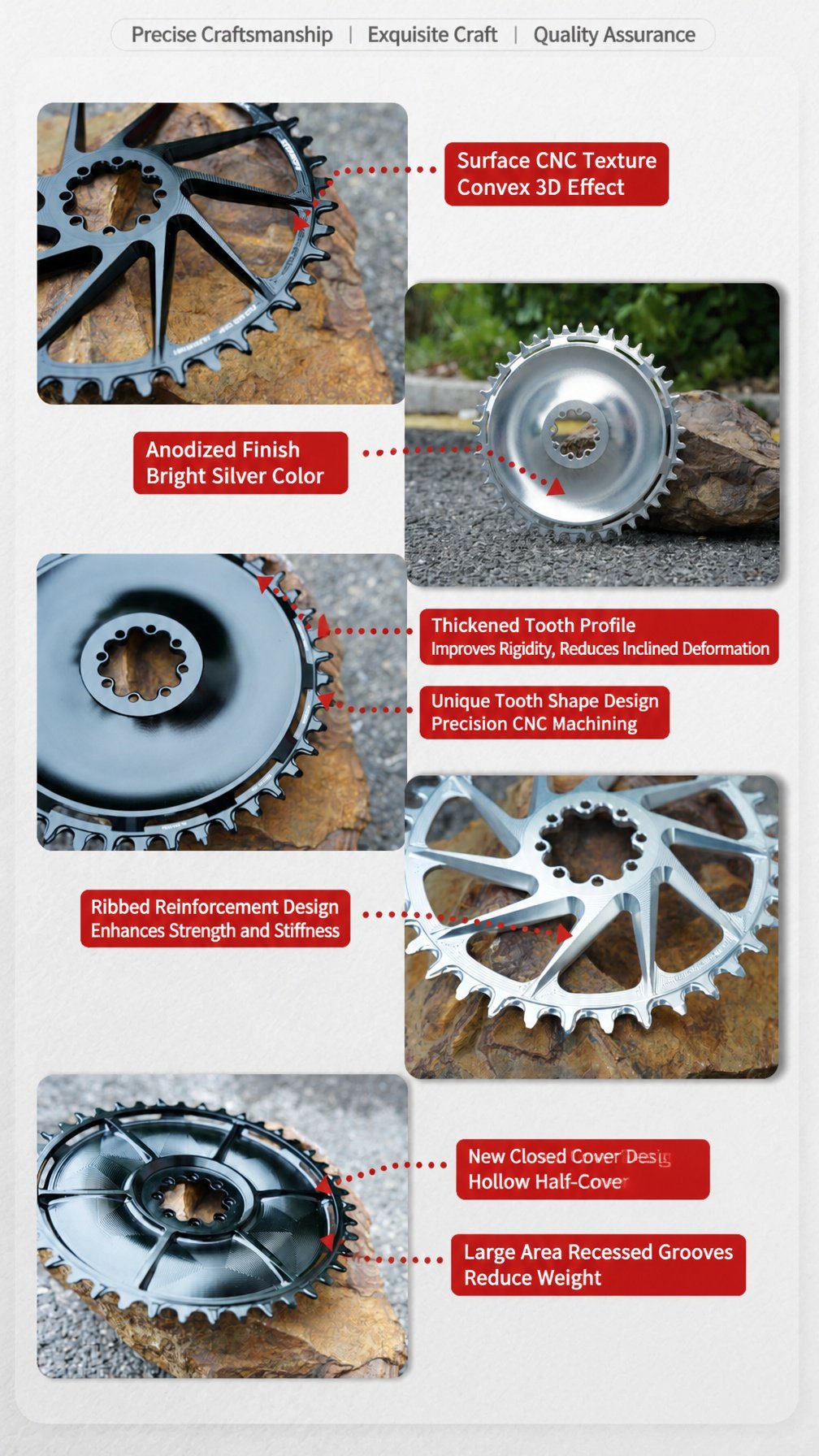

Key Features
| Feature | Description |
|---|---|
| Premium Material | Imported AL7075-T651 aluminum, heat-treated & pre-stretched for superior rigidity and minimal deformation |
| Surface Treatment | CNC machined + Anodized finish — corrosion resistant, wear resistant, insulated, fade-proof |

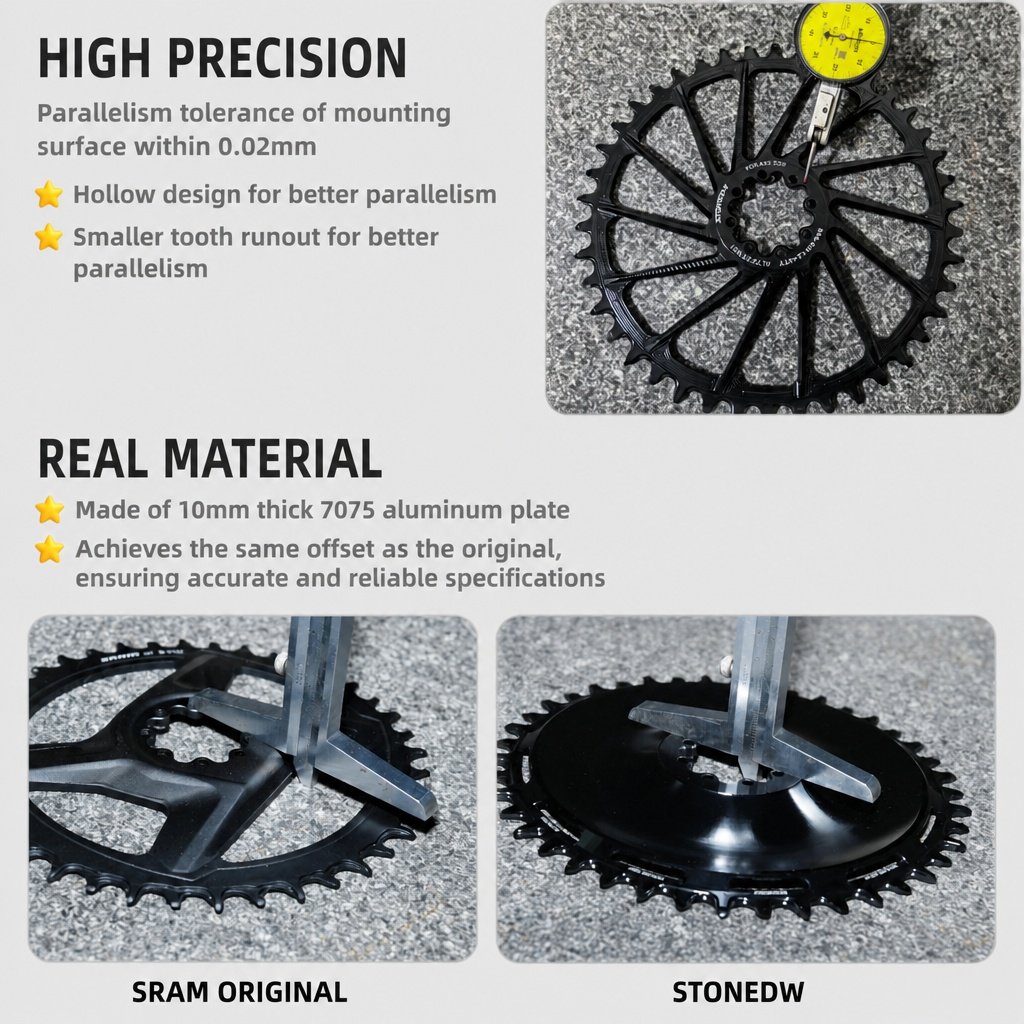

| High Precision | Interface parallelism guaranteed within 0.02mm — same-level accuracy as OEM SRAM chainrings |

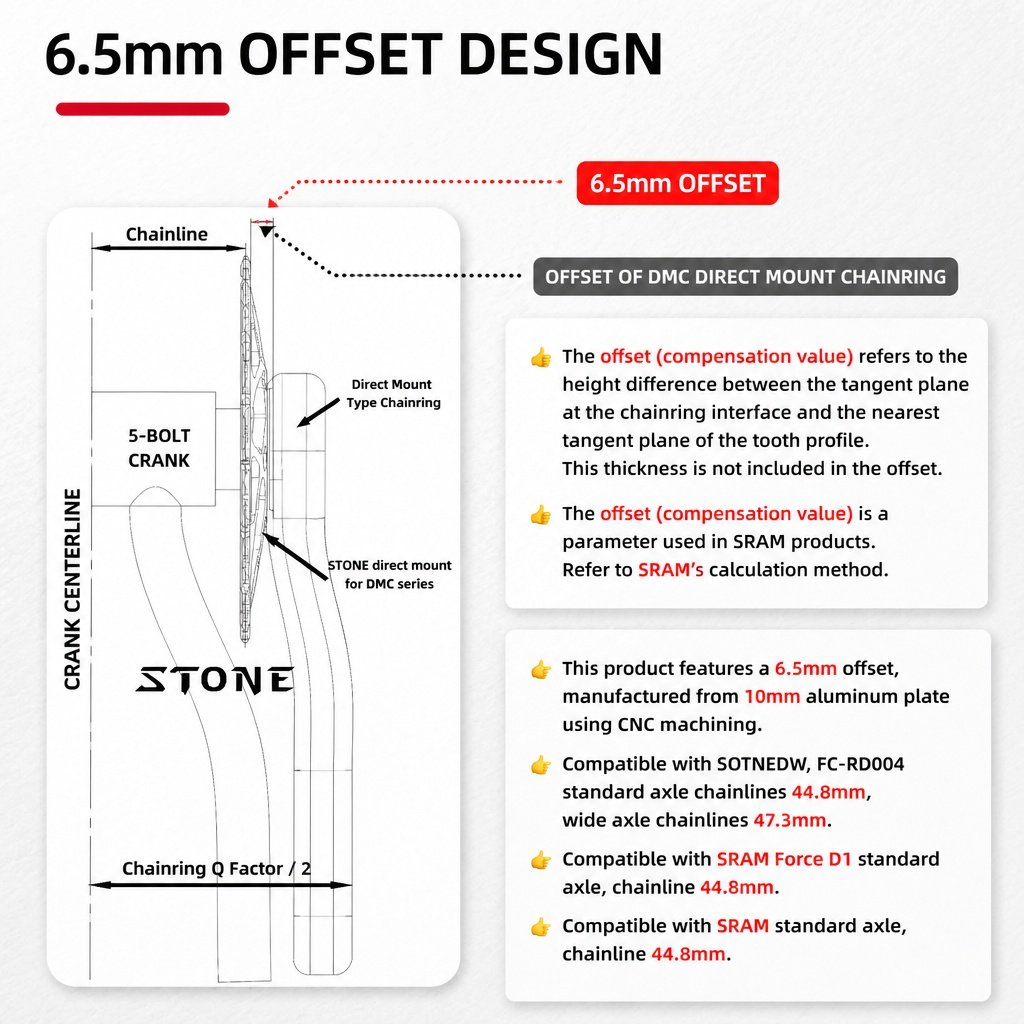

| DUB WIDE Offset Design | 6.5mm inward offset, matched to SRAM DUB WIDE |

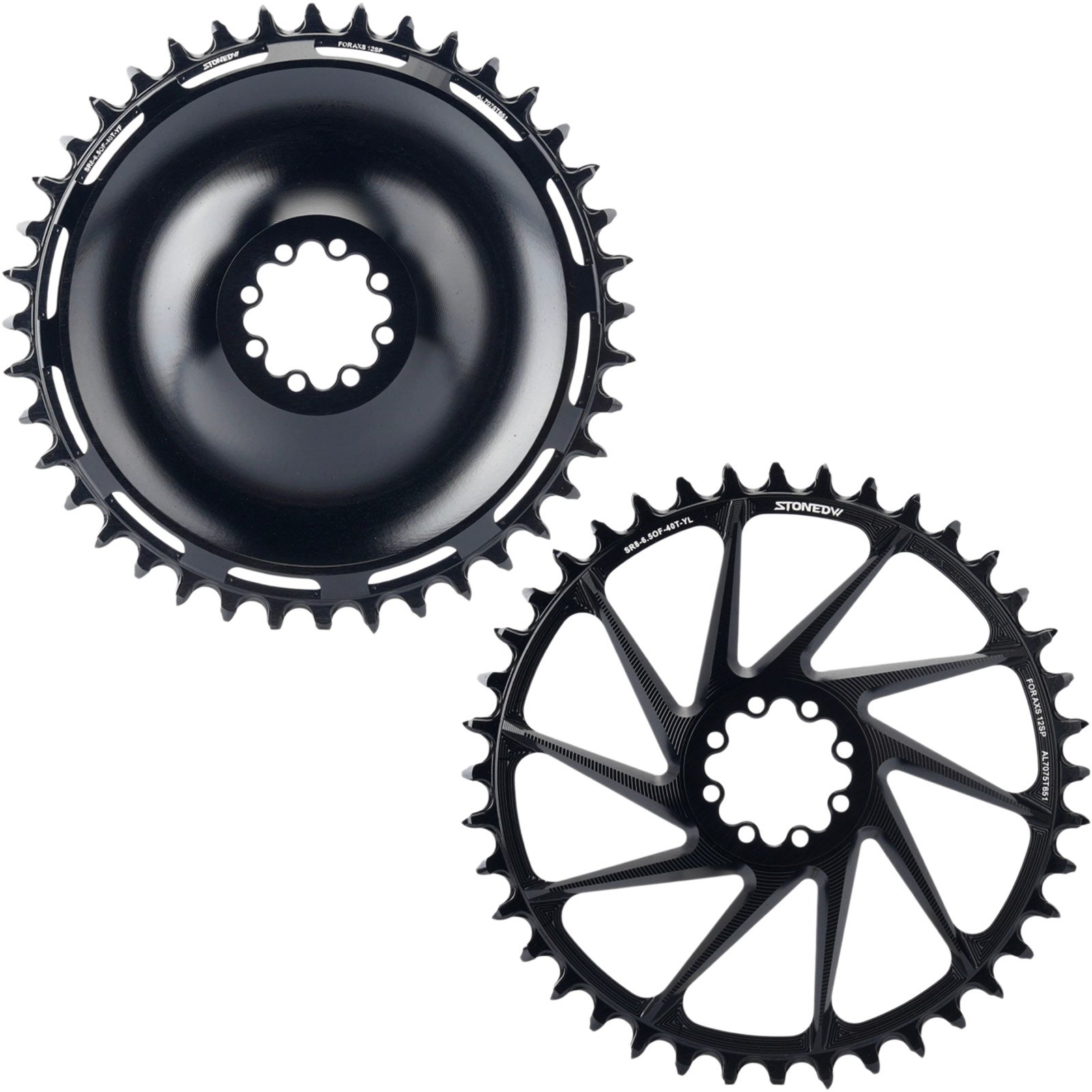

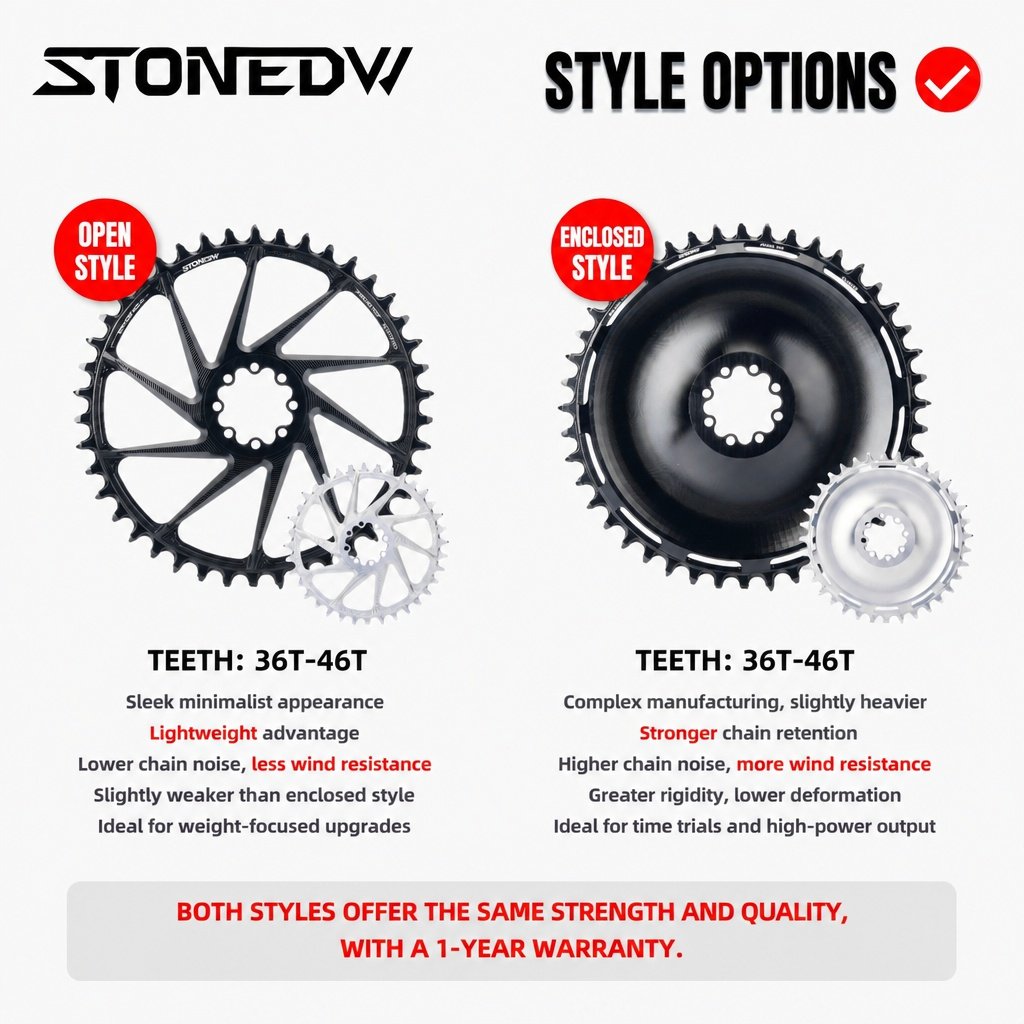

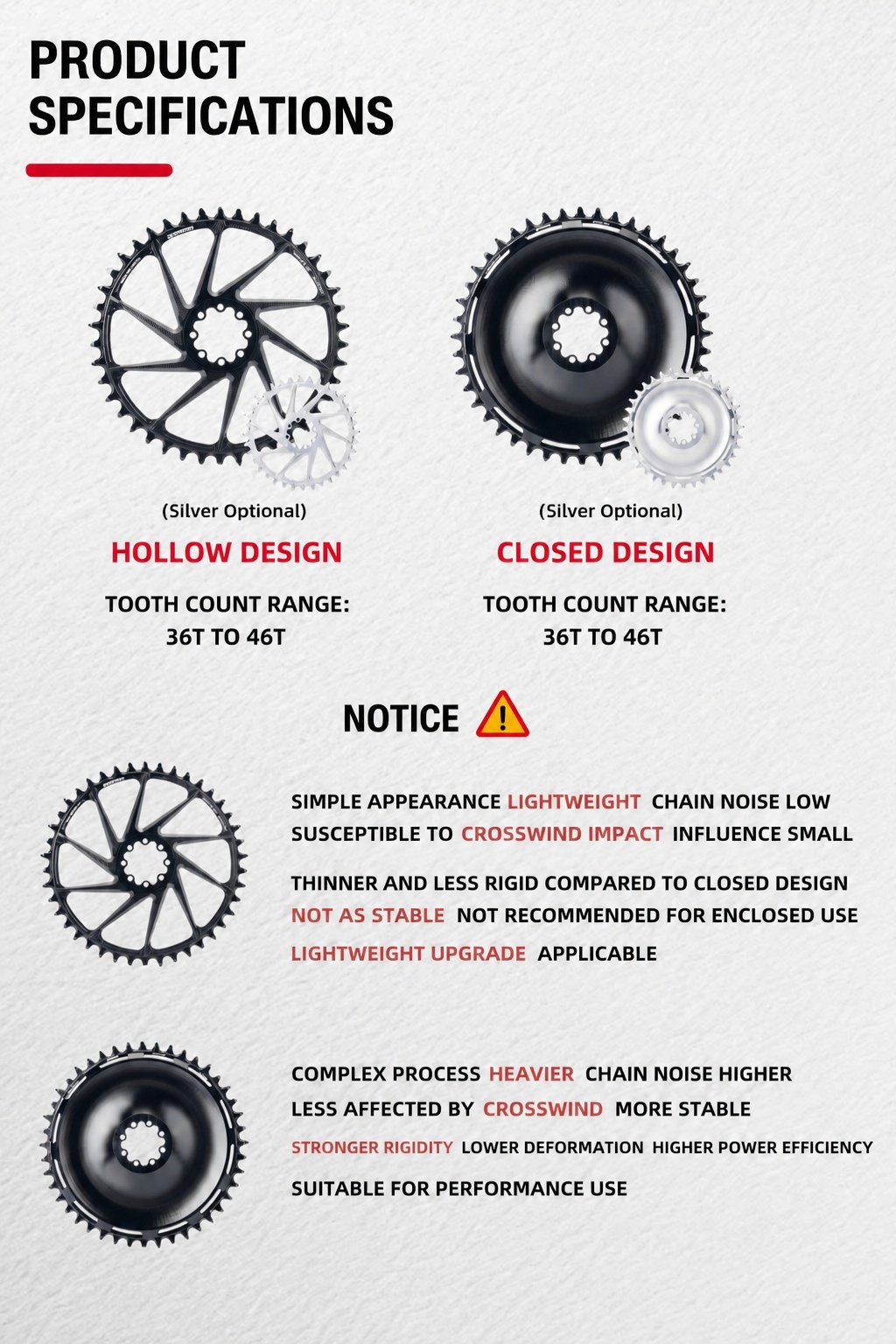

| Style Options | Cutout (Hollow) — lighter, quieter, less crosswind drag / Closed (Aero) — stiffer, lower flex, ideal for sprint power |
| Color Options | Anodized Black / Silver |

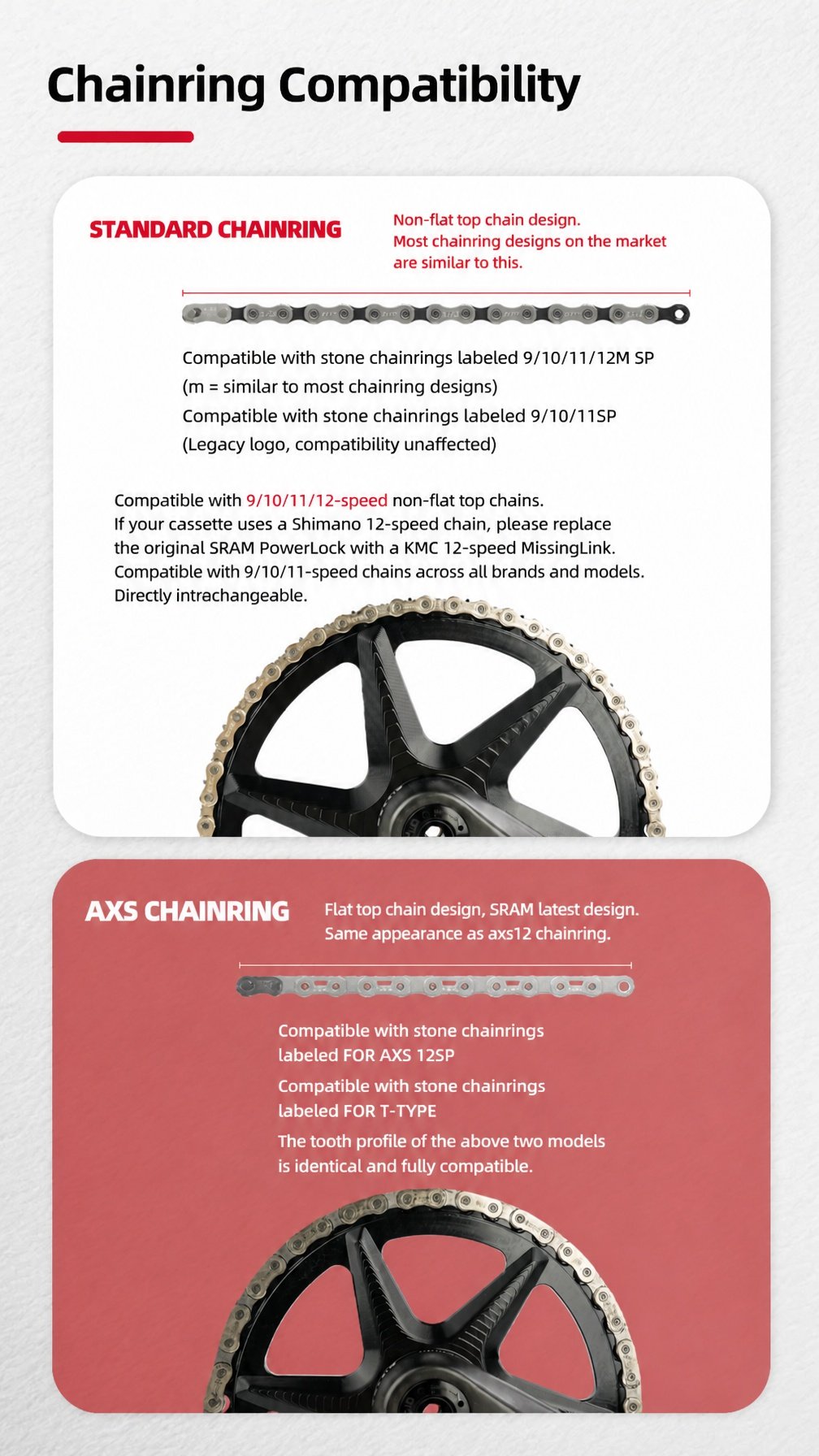

IMPORTANT: Two Tooth Profile Types — Please Choose Correctly
This chainring is available in TWO different tooth profile designs. Please select the correct version based on your chain type:
| Tooth Profile | Chain Compatibility | Marking |
|---|---|---|
| Standard Profile | Non-flat-top chains — compatible with Shimano, KMC, and most 9/10/11/12-speed chains | “9/10/11/12 SP” |
| AXS / Flat-Top Profile | Flat-top chains only — SRAM AXS road chain or SRAM T-Type chain | “FOR AXS 12SP” or “FOR T-TYPE” |
Note: If using the Standard Profile chainring with a Shimano 12-speed chain, please replace the OEM quick-link with a KMC/YBN 12-speed quick-link for full compatibility. 9/10/11-speed chains work directly regardless of brand.

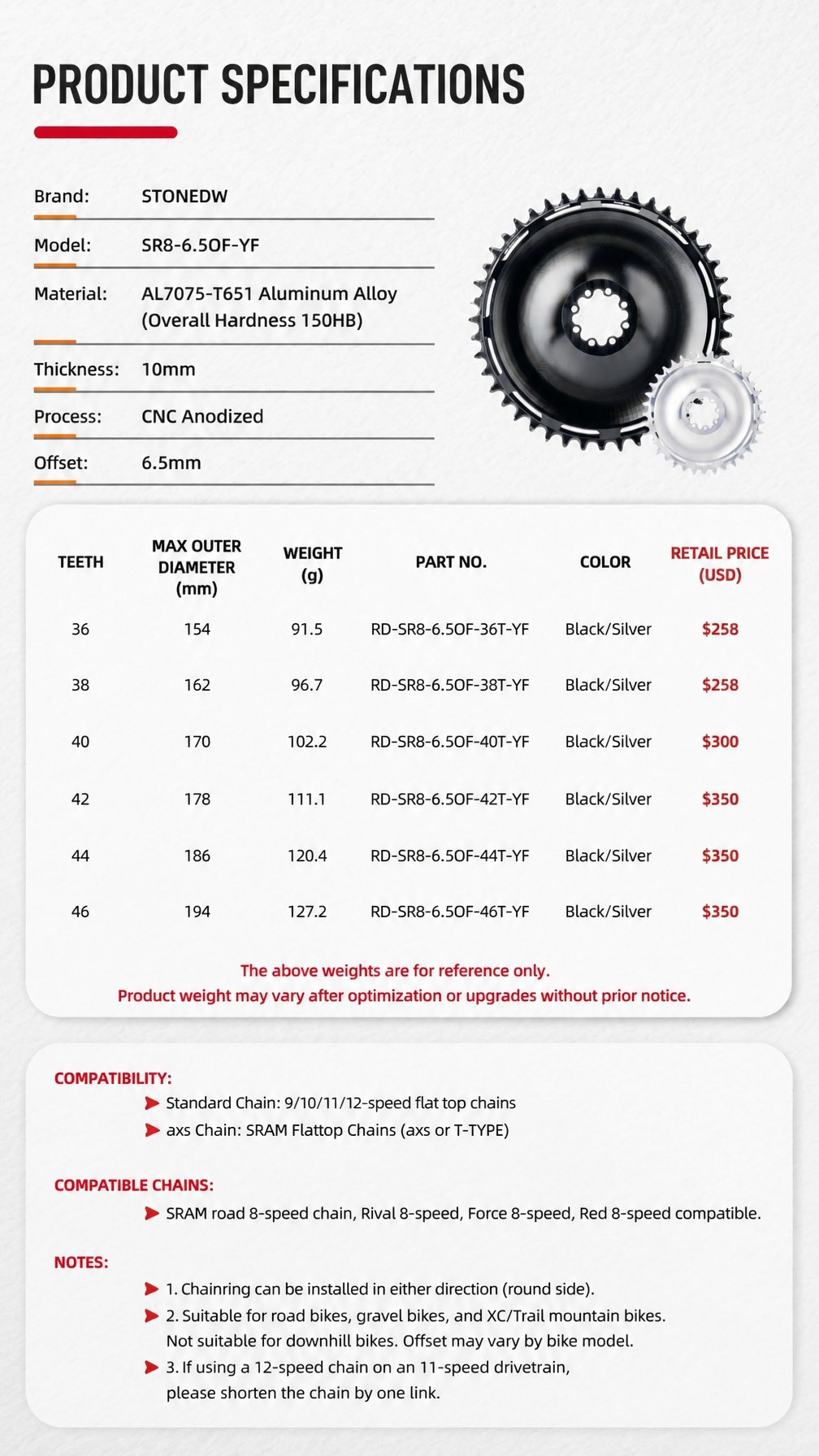

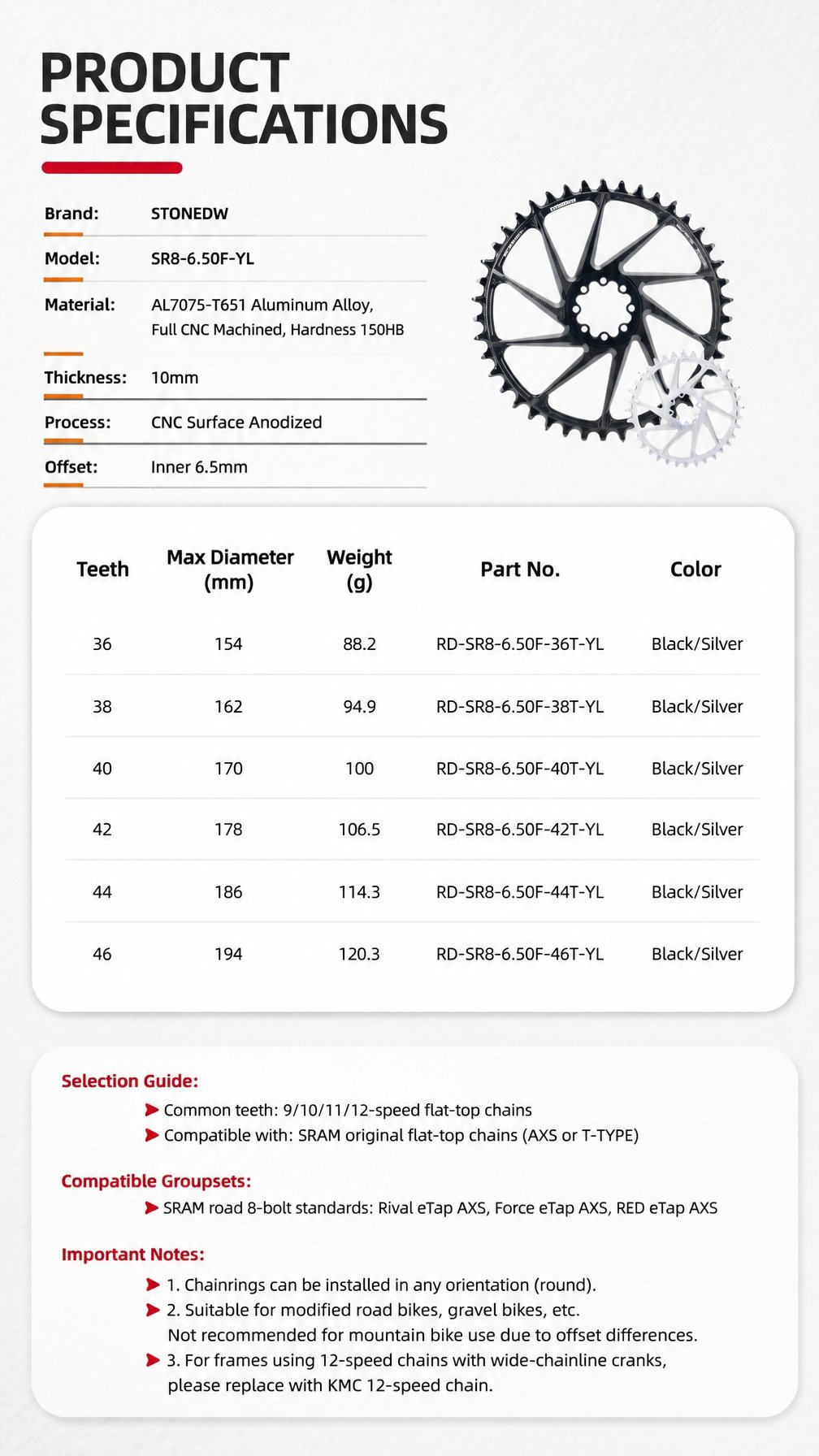

Specifications
| Item | Detail |
|---|---|
| Brand | STONEDW |
| Interface | 8-Bolt Direct Mount |
| Tooth Count Range | 36T / 38T / 40T / 42T / 44T / 46T |
| Thickness | 10mm |
| Offset | 6.5mm inward (DUB WIDE spec) |
| Material | AL7075-T651 |
| Finish | CNC + Anodized |
| Colors | Black / Silver |

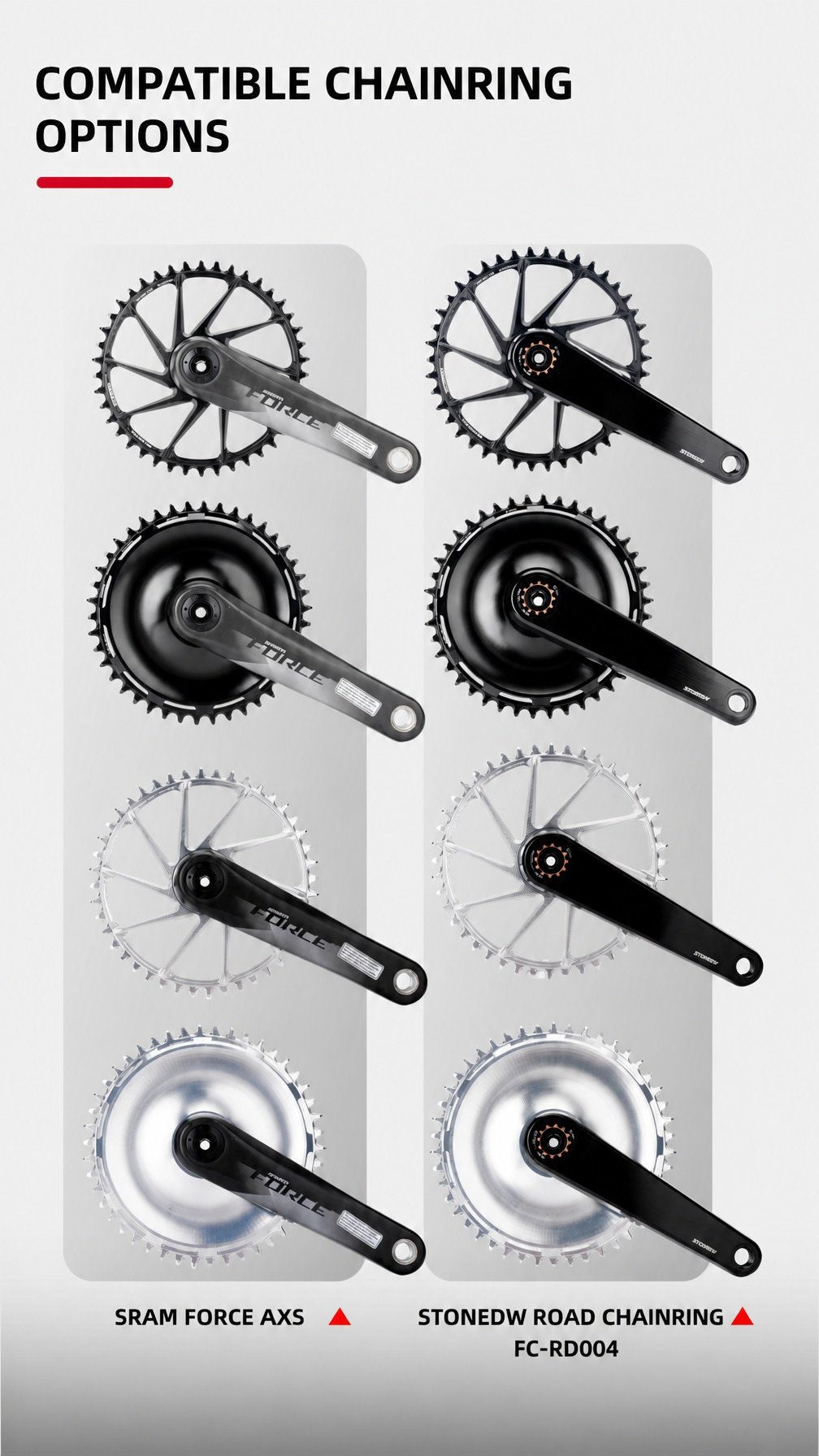

Crank Compatibility
Compatible with SRAM 8-bolt Road/Gravel DUB WIDE cranksets, including:
- SRAM Rival AXS (DUB WIDE, 8-bolt)
- SRAM Force AXS (DUB WIDE, 8-bolt)
- SRAM RED AXS (DUB WIDE, 8-bolt)
- STONEDW FC-RD004 (Wide spindle version)
Please verify your crank spindle is the WIDE version before ordering. Standard DUB spindle cranks may require a different offset chainring.

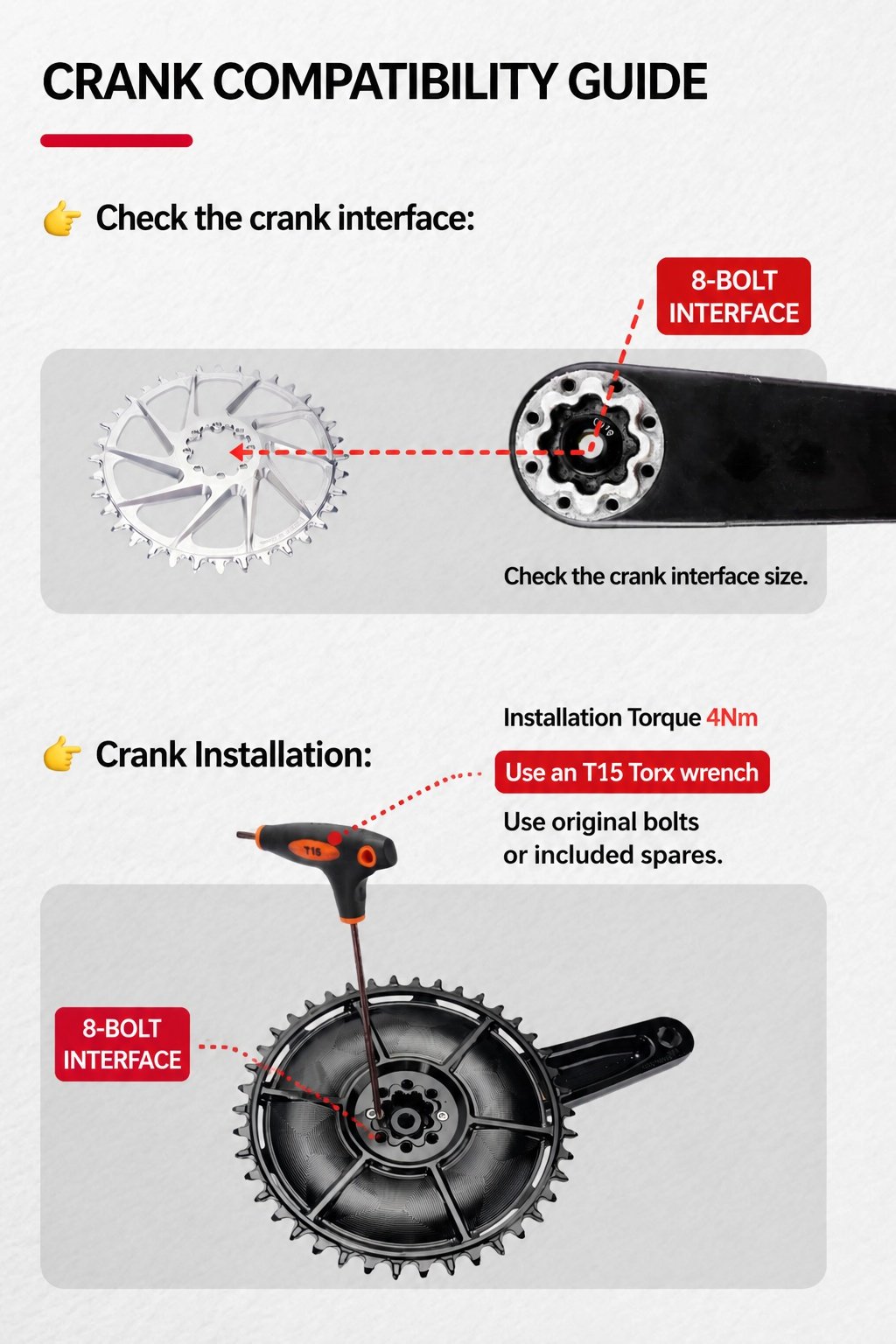

Installation
- Torque Spec: 4Nm
- Tool Required: T15 Torx wrench
- Use OEM bolts or self-prepared bolts matching 8-bolt interface

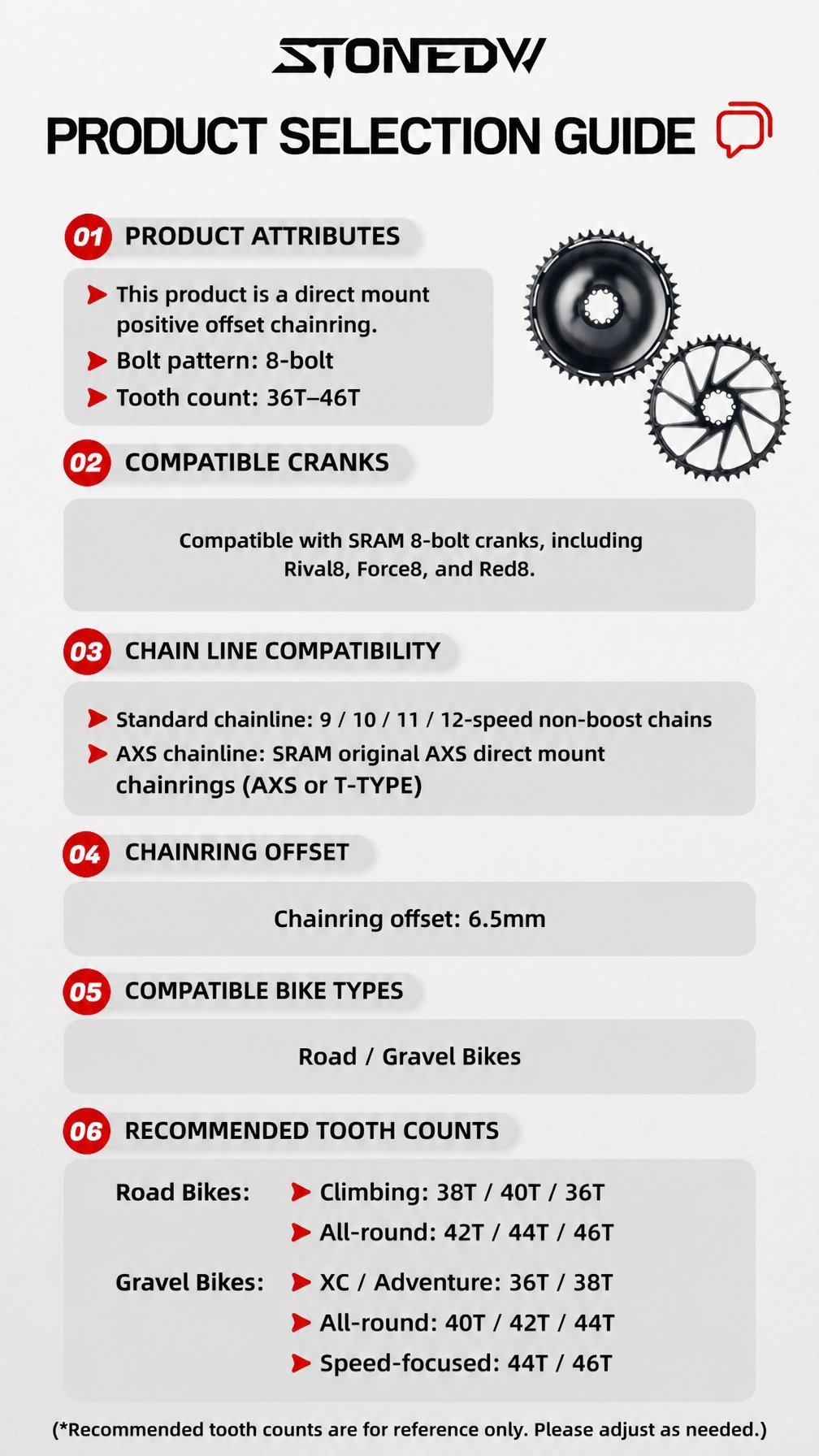

Recommended Tooth Count by Riding Style
Road Bike:
| Style | Tooth Count |
|---|---|
| Climbing | 36T / 38T / 40T |
| All-around | 42T / 44T / 46T |
Gravel Bike:
| Style | Tooth Count |
|---|---|
| Pure off-road | 36T / 38T |
| All-around | 40T / 42T / 44T |
| Speed-focused | 44T / 46T |
(Recommendations are for reference only — please choose based on your actual riding conditions)
Notes Before Purchase
- This chainring can be installed in any rotational direction (round profile, no timing marks needed)
- Designed for SRAM DUB WIDE Road/Gravel cranksets ONLY — please confirm your crank spindle type before ordering
- Suitable for road bike & gravel bike conversions — NOT compatible with mountain bike (MTB) cranksets due to different offset requirements
- MUST CONFIRM your chain type before ordering — Standard Profile for Shimano/KMC chains, AXS/Flat-Top Profile for SRAM AXS/T-Type chains
- Weight may vary slightly due to ongoing product optimization — actual weight based on latest batch
