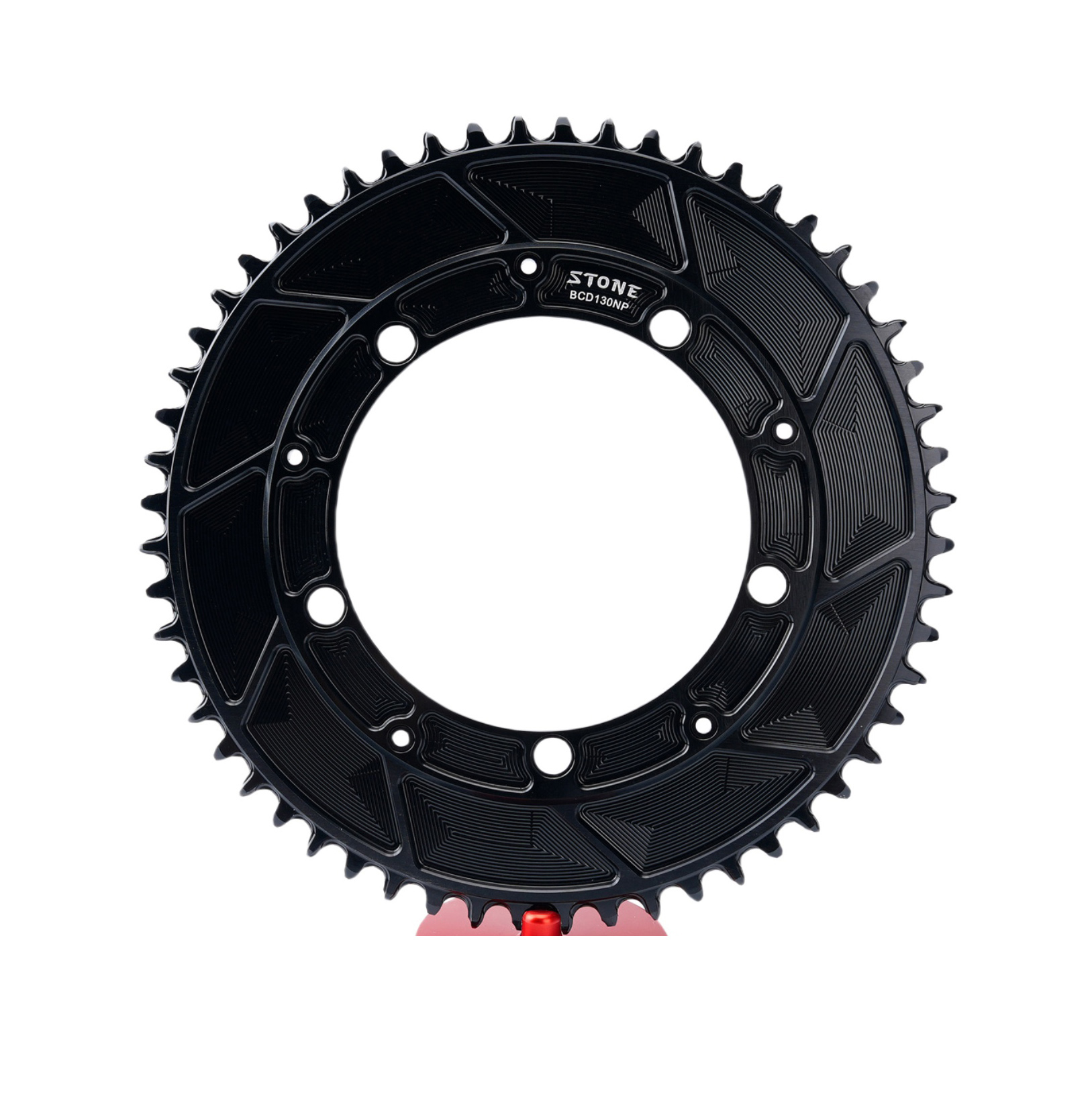

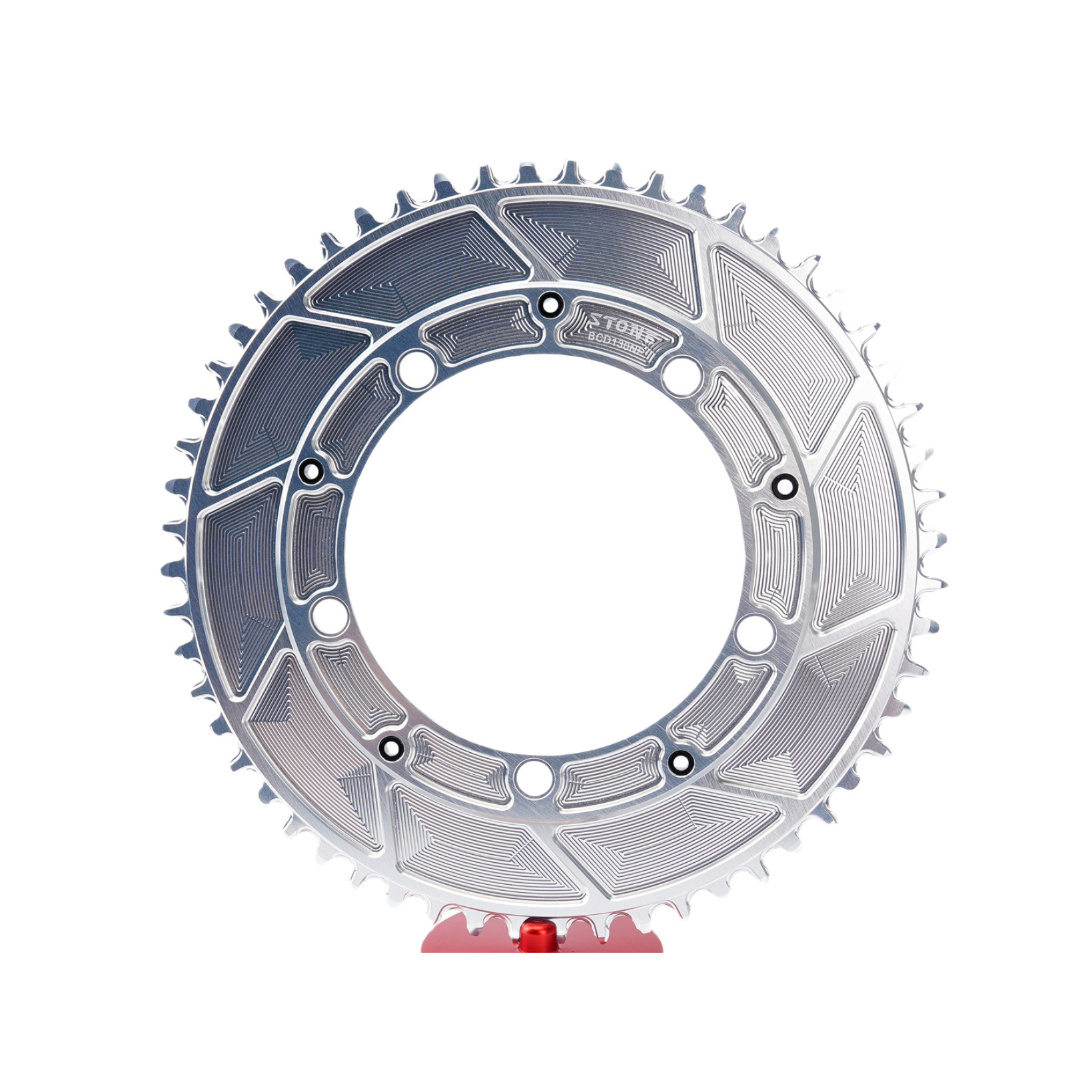

STONE 130BCD 4mm Offset Narrow-Wide 1x Chainring for Shimano 5700/6700 & SRAM Red, 42T–60T
Convert a traditional 2x crankset into a clean, efficient 1x drivetrain with the Stone 130BCD narrow-wide single chainring. The narrow-wide tooth profile is designed to hold the chain securely without a front derailleur.

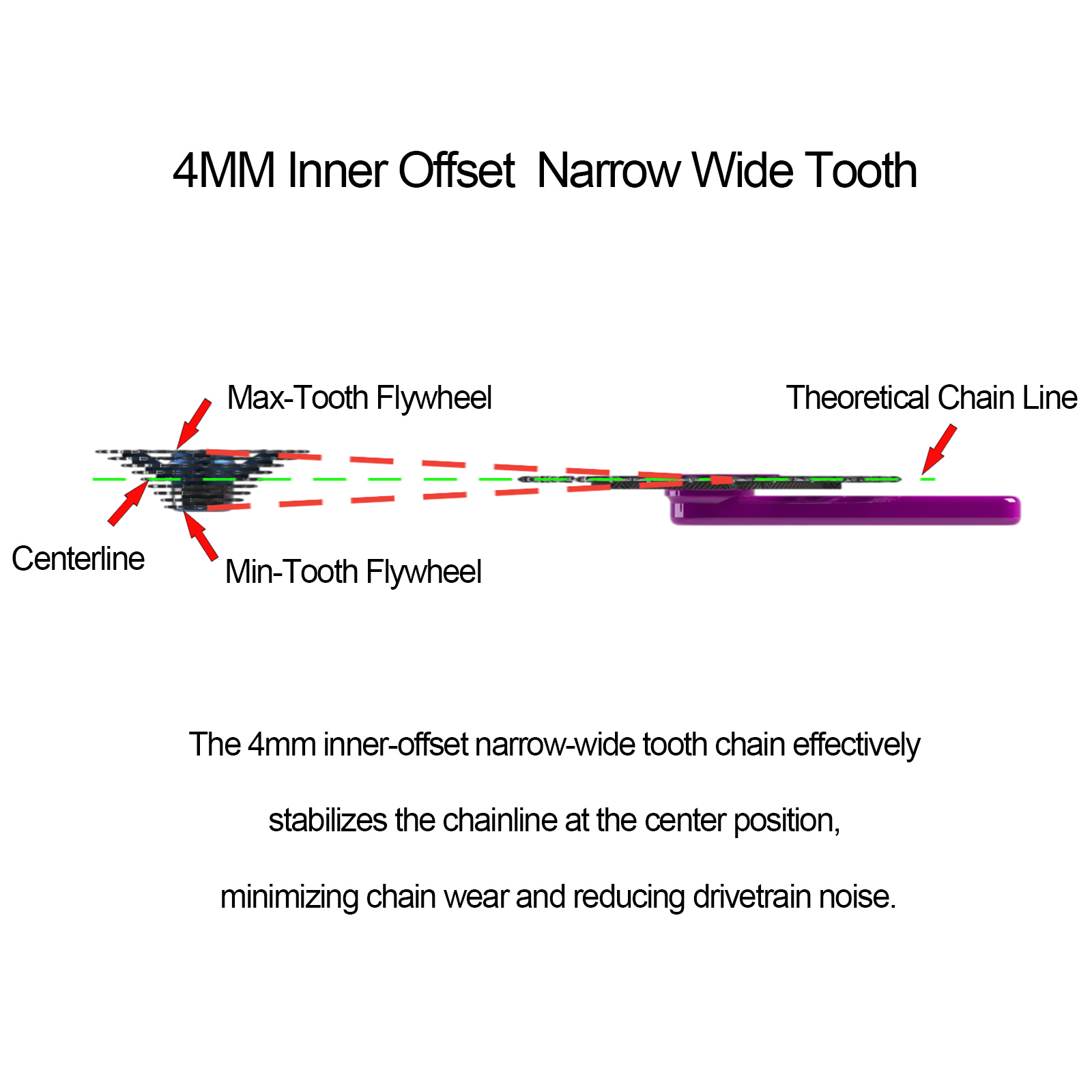

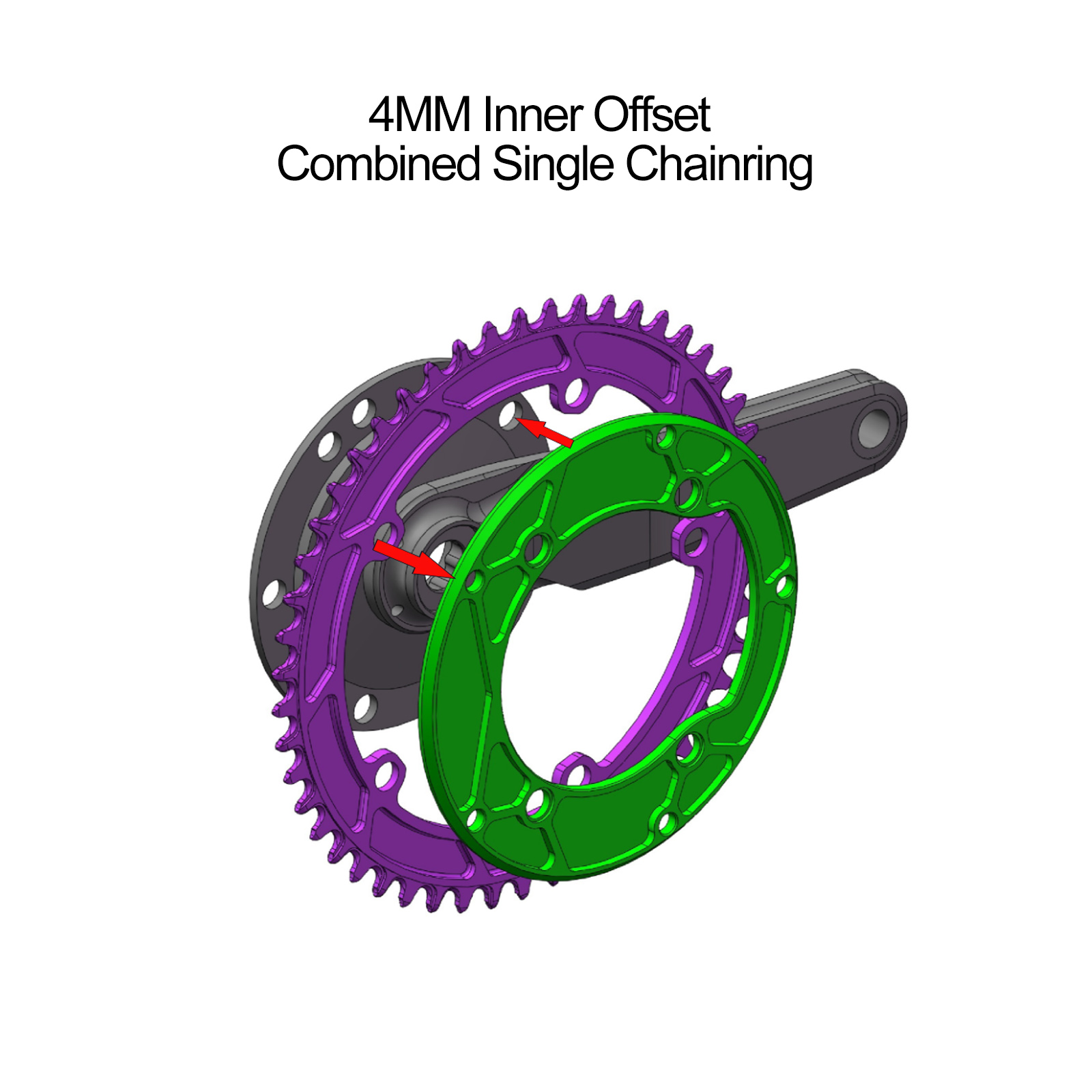

The 4mm inner offset improves chainline alignment when moving from a 2x system to a 1x setup, contributing to smoother running and better chain retention.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | 4mm Offset Narrow-Wide Single Chainring |
| Brand | Stone |
| BCD | 130BCD (5-arm) |
| Chainring Type | Round |
| Offset | 4mm inner offset |
| Material | 7075-T651 aluminum alloy |
| Thickness | 4mm + 4mm |
| Process | CNC machined, anodized finish |

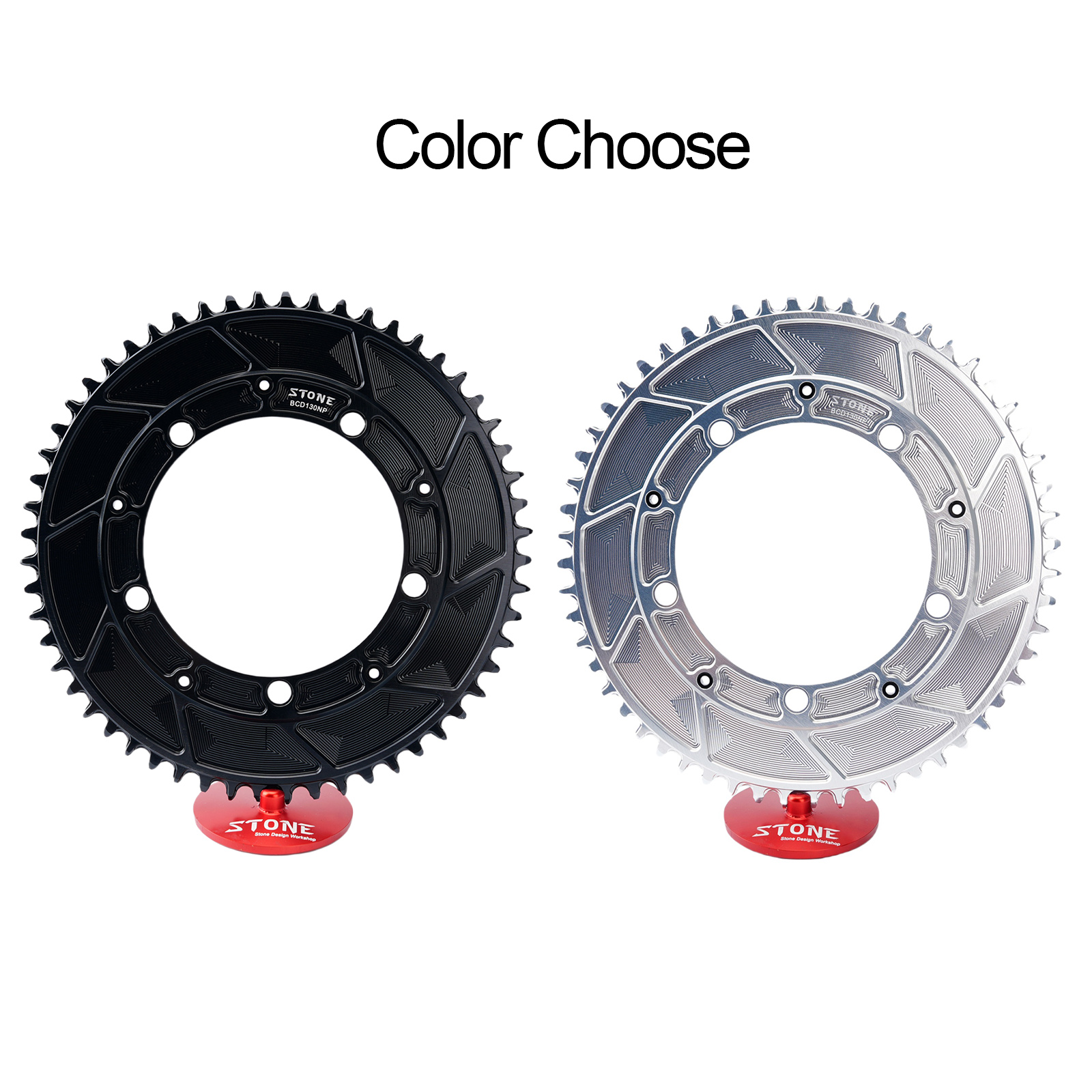

| Color Options | Black, Silver |
| Drivetrain Type | 1x only |
| Teeth Options | 42T / 44T / 46T / 48T / 50T / 52T / 54T / 56T / 58T / 60T |
Key Features
- Designed for 1x drivetrains only
- 4mm inner offset for improved chainline when converting from 2x

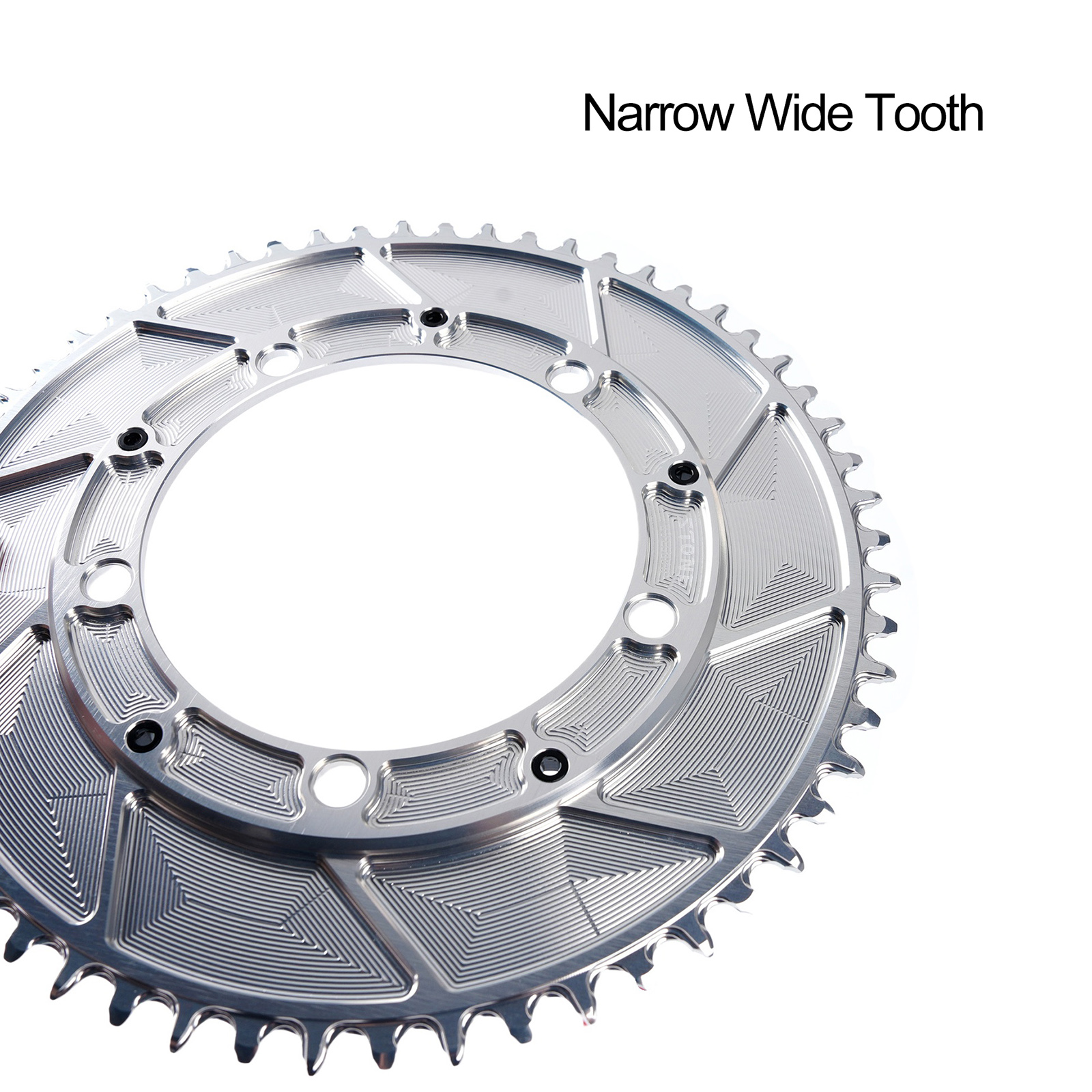

- Narrow-wide tooth profile for better chain retention
- Durable 7075-T651 aluminum alloy construction

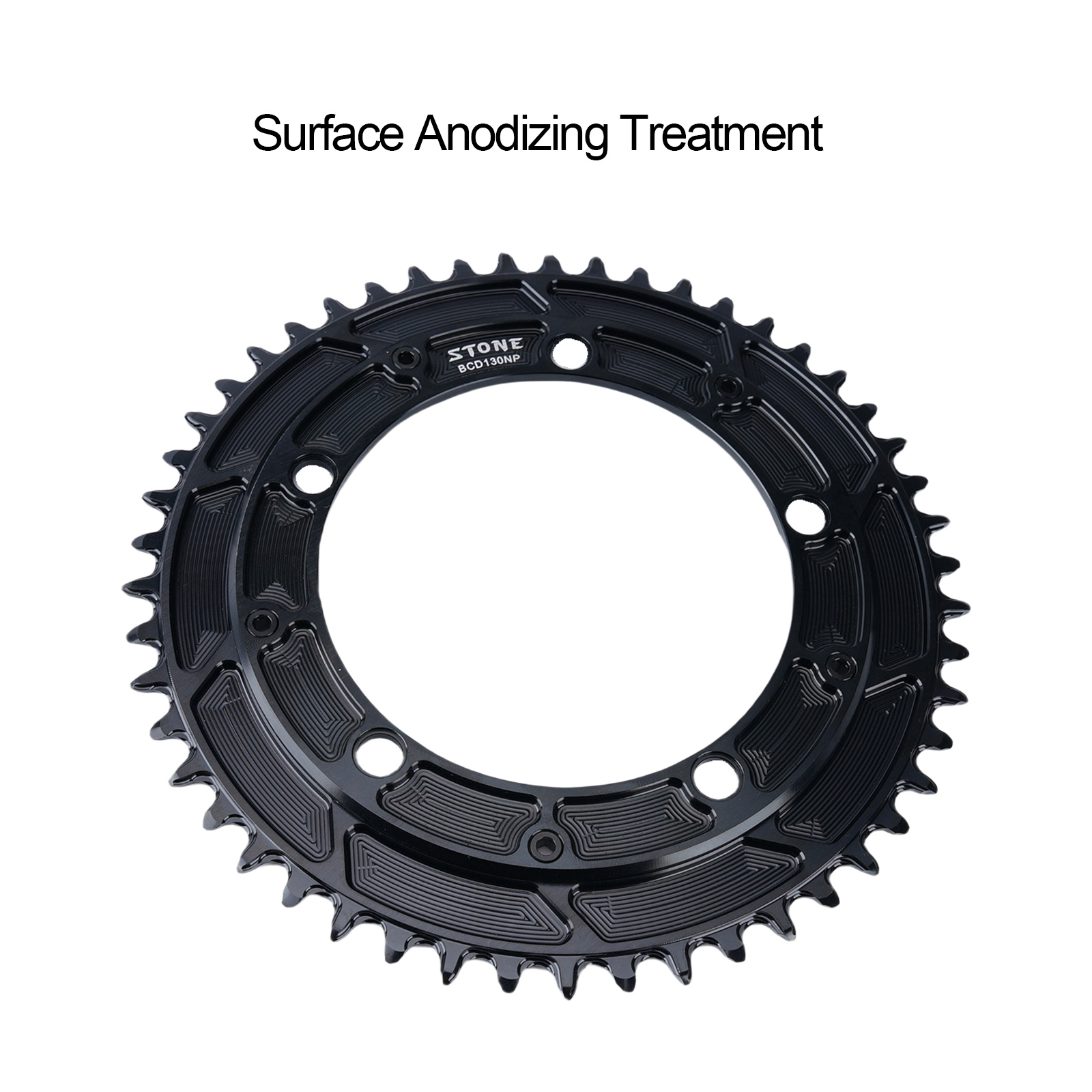

- CNC-machined with an anodized surface finish
- Compatible with most 130BCD road cranksets
- Suitable for road, gravel, commuter, and custom 1x builds

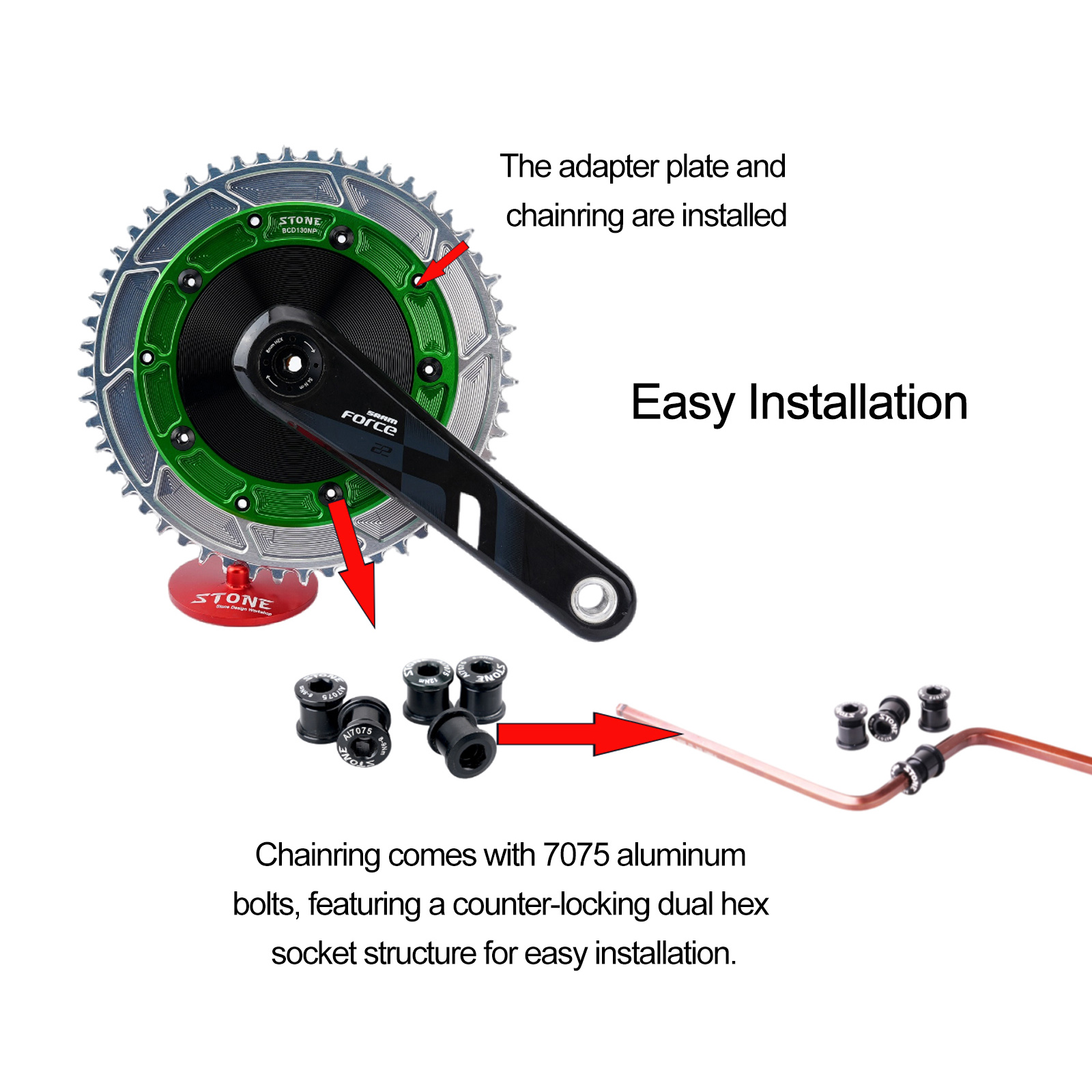

- Chainring bolts included
Important Compatibility Notice
This chainring is designed for 1x drivetrain systems only. It is not compatible with 2x drivetrains and does not support front shifting.
Do not use this chainring with:
- Front derailleur
- Front shifter
- 2x drivetrain setup
- Double-chainring configuration
Using it as part of a 2x system may cause poor shifting, chain drop, or drivetrain malfunction.
Compatible Cranksets
Compatible with most 130BCD cranksets, including:

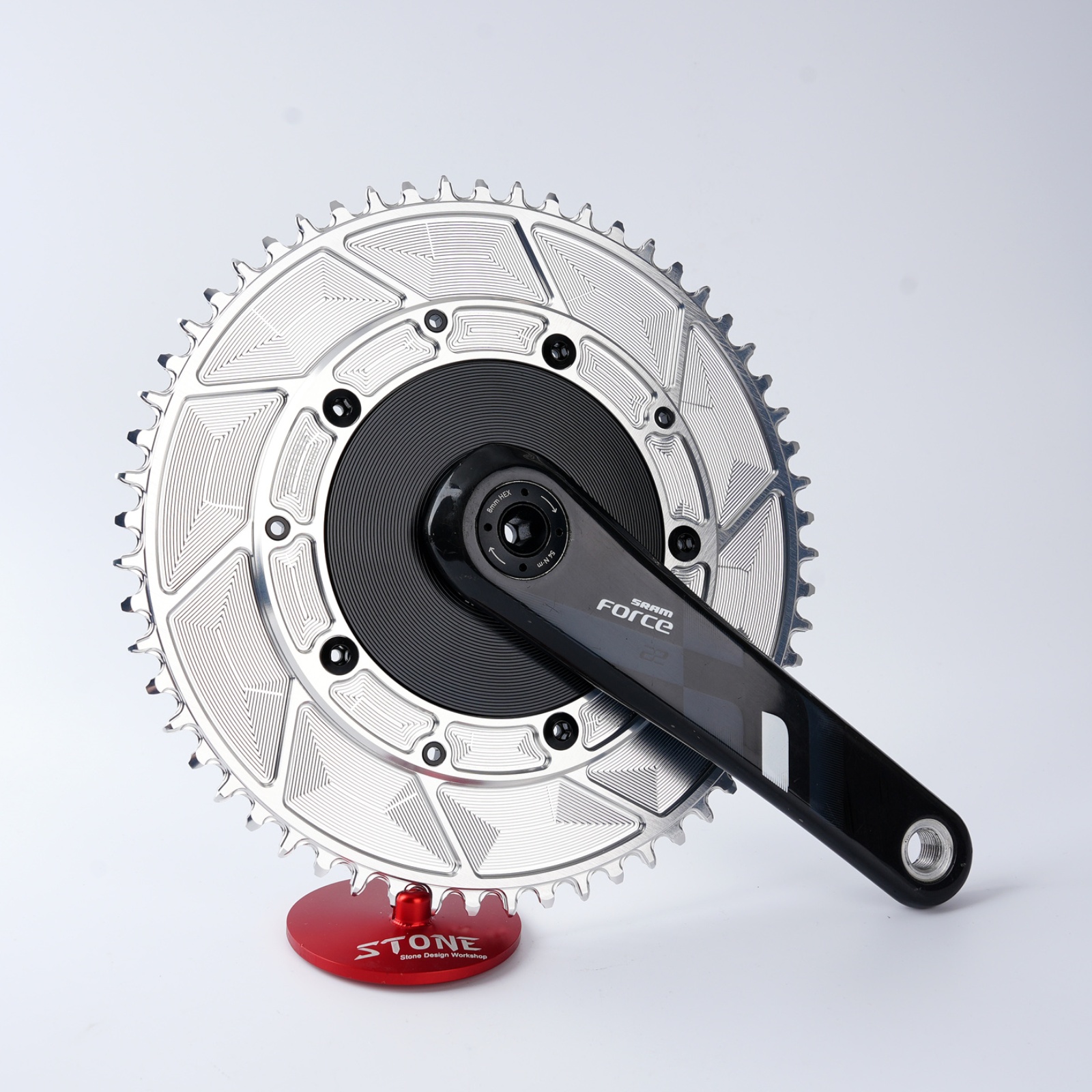

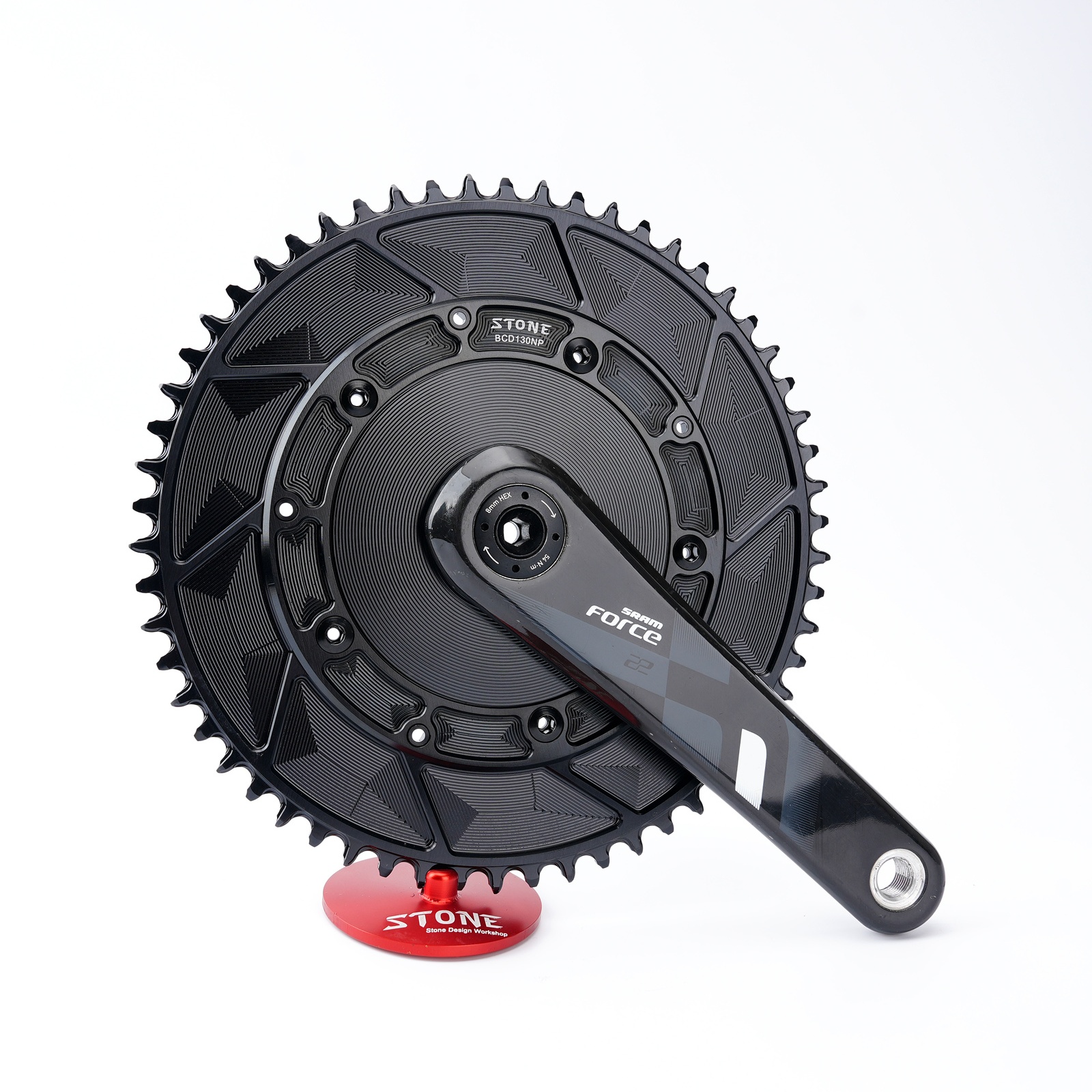

- SRAM Red
- Rotor 130BCD cranksets
- Shimano 5700
- Shimano 6700
- Other standard 130BCD cranksets
Please confirm your crankset BCD before ordering.
Chain Compatibility
| Chain Type | Compatibility |
|---|---|
| 9 / 10 / 11 / 12-speed MTB chains | Compatible |
| SRAM road 9 / 10 / 11-speed chains | Compatible |
| Shimano road 9 / 10 / 11 / 12-speed chains | Compatible with note below |
| SRAM AXS 12-speed Flattop chain | Not compatible by default |
Shimano 12-Speed Chain Notice
For Shimano 12-speed road chains, the original Shimano 12-speed quick link may be too narrow. We recommend replacing it with another compatible 12-speed quick link, such as:
- KMC
- YBN
- SUMC
- Other compatible 12-speed quick links
SRAM AXS Flattop Chain Notice
This standard chainring does not support SRAM AXS 12-speed Flattop chains.
If you need compatibility with SRAM AXS Flattop chains, please contact us for a customized AXS tooth profile option before placing your order.

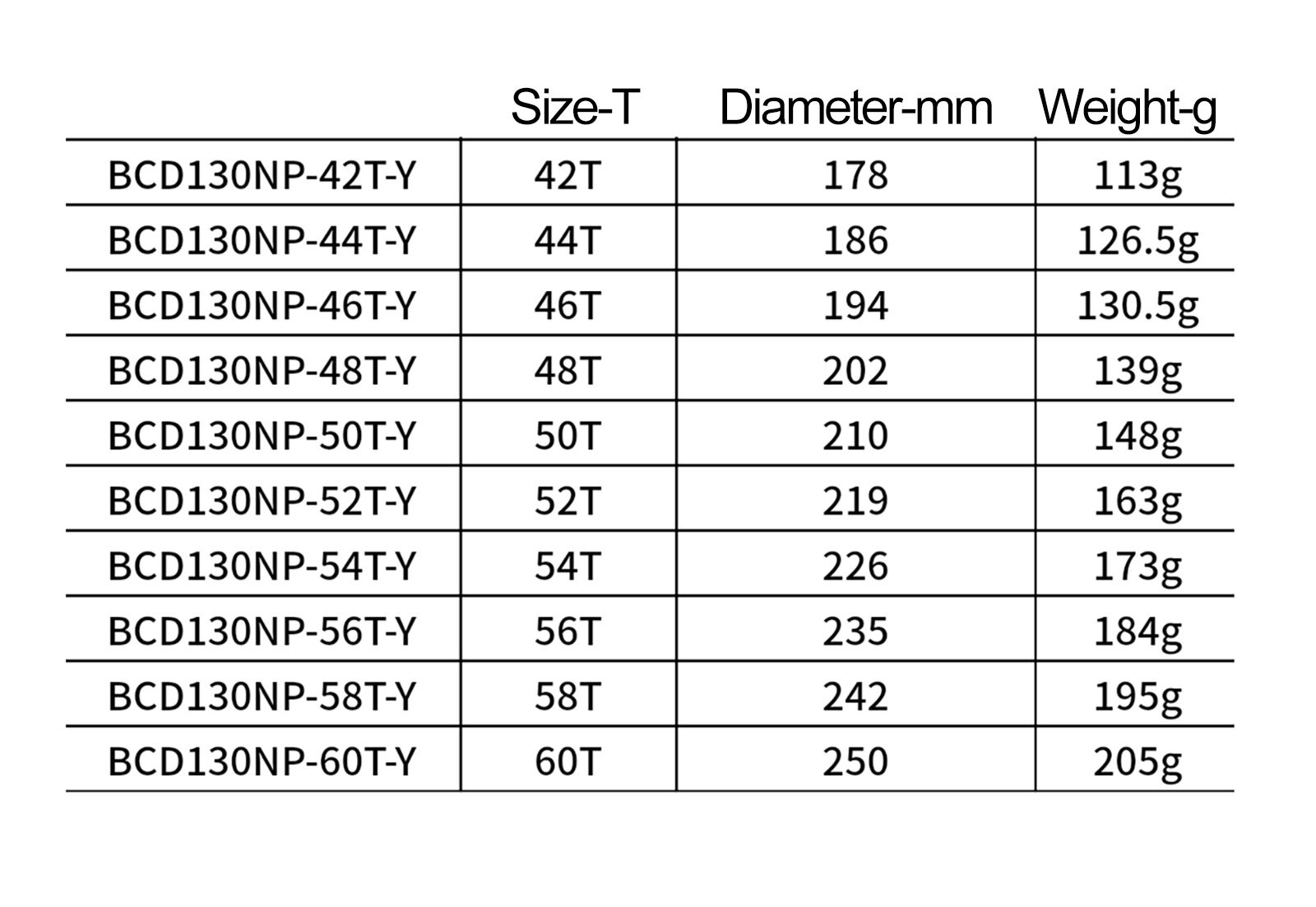

Size, Diameter & Weight
| Teeth | Max Diameter | Weight |
|---|---|---|
| 42T | 178 mm | 113 g |
| 44T | 186 mm | 126.5 g |
| 46T | 194 mm | 130.5 g |
| 48T | 202 mm | 139 g |
| 50T | 210 mm | 148 g |
| 52T | 219 mm | 163 g |
| 54T | 226 mm | 173 g |
| 56T | 235 mm | 184 g |
| 58T | 242 mm | 195 g |
| 60T | 250 mm | 205 g |
Weight may vary slightly due to manufacturing tolerance.
Package Includes
- 1 × Chainring
- 5 × Chainring bolts
