STONE 110BCD 4-Bolt Aero Double Chainring for Shimano 105 R7100, Ultegra R8100 & Dura-Ace R9200 Road Cranksets (46–58T)
A precision CNC-machined aero double chainring built for Shimano 110BCD 4-bolt road cranksets, covering the latest 12-speed groups as well as earlier generations.

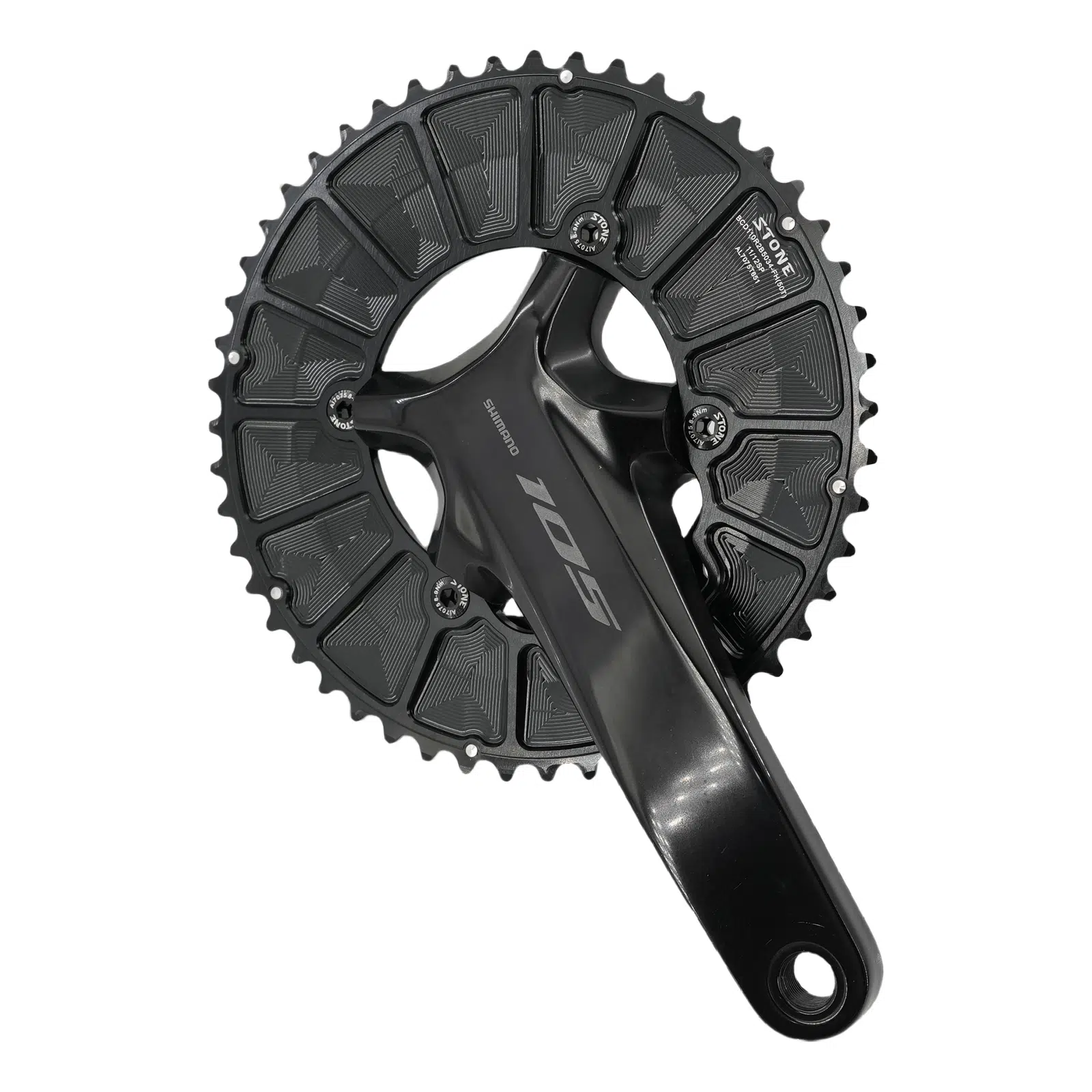

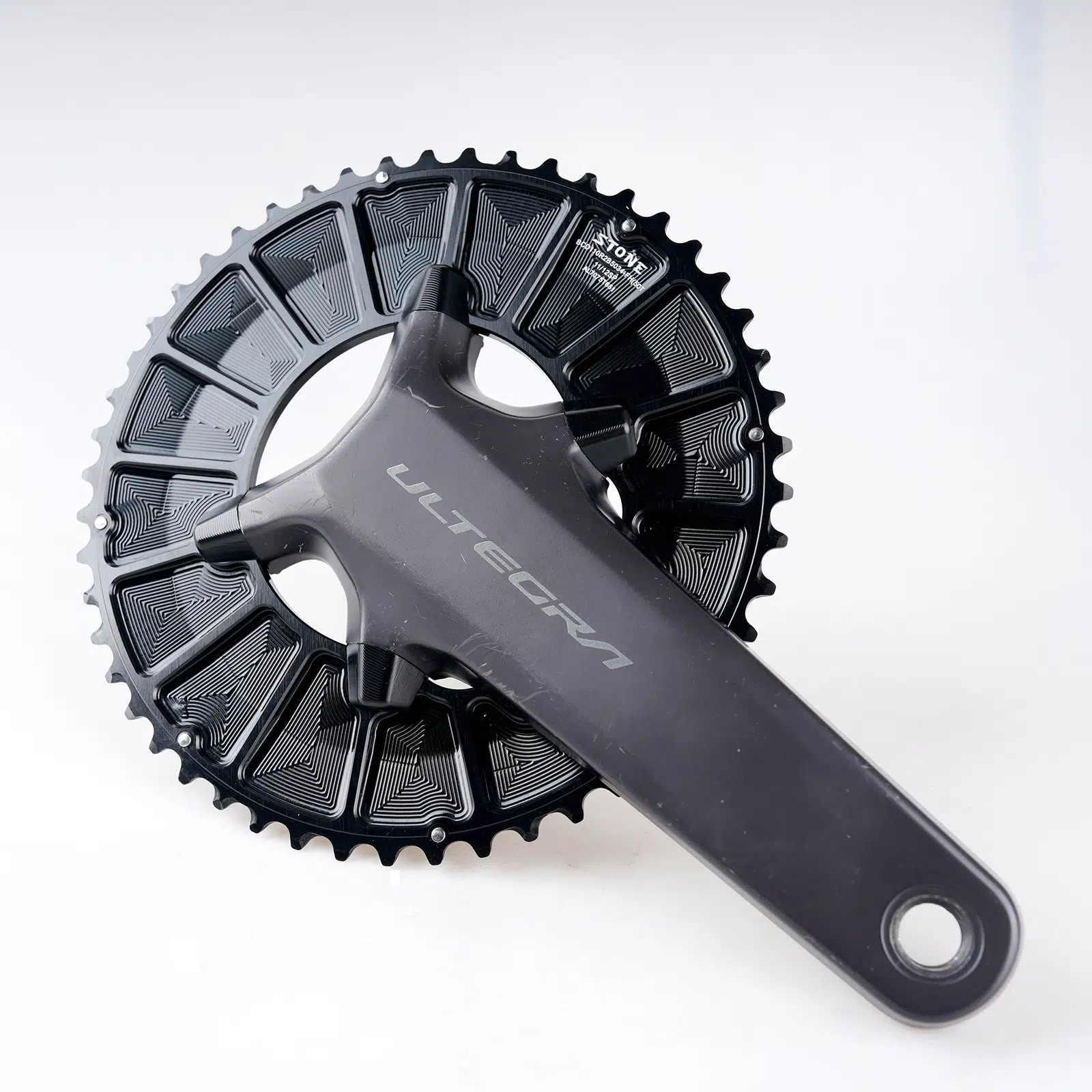

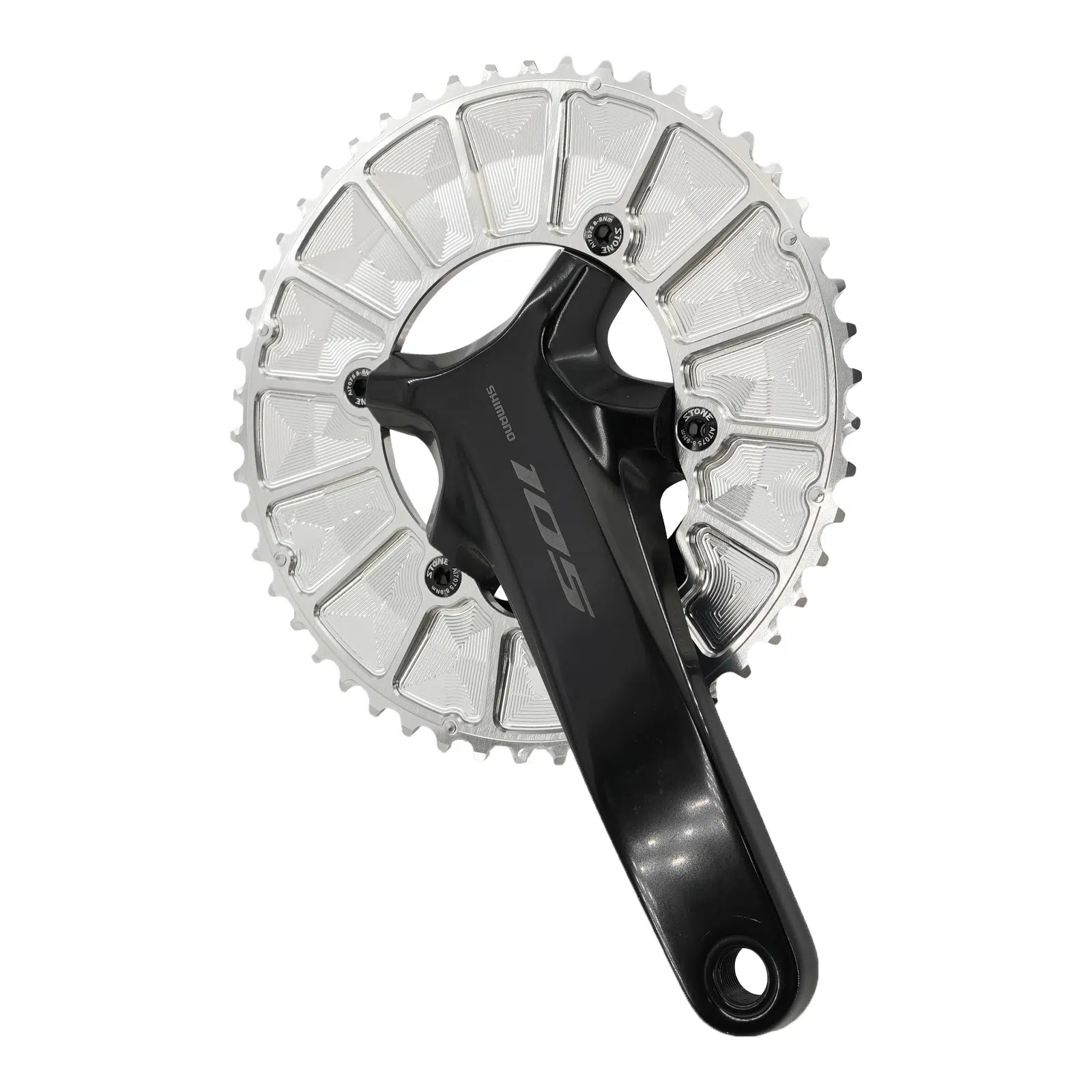

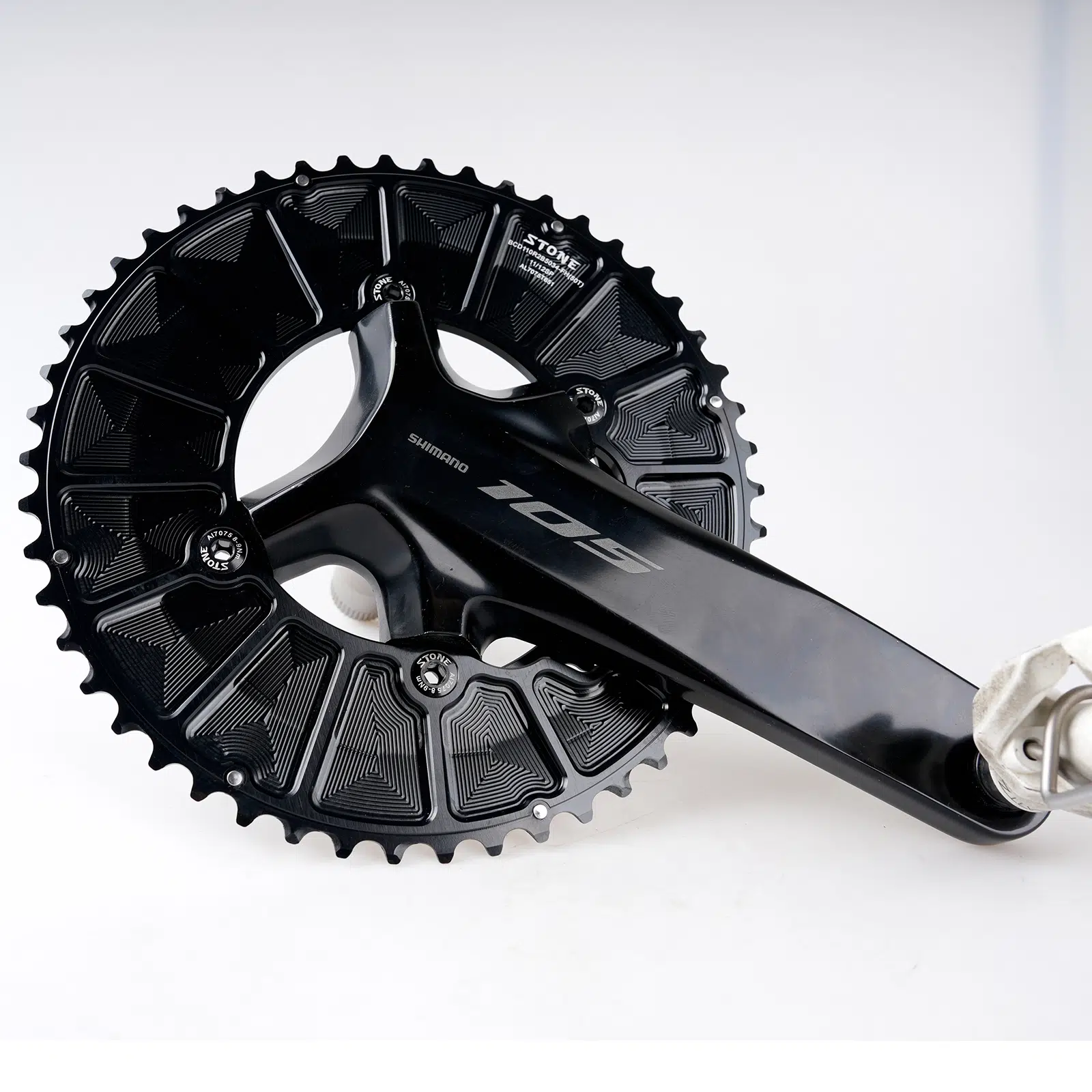

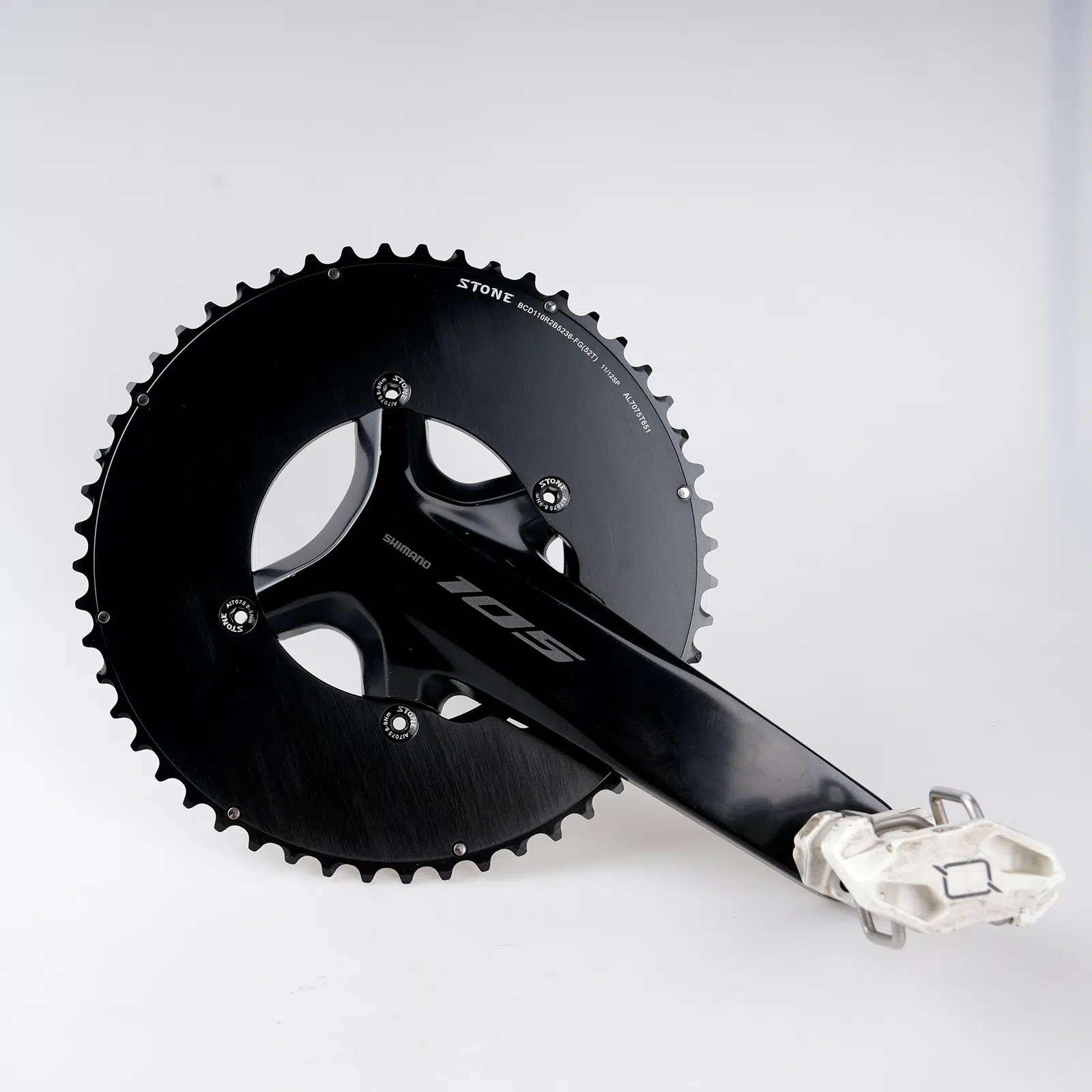

The STONE aero-style double chainring is designed specifically for 110BCD 4-bolt Shimano road cranksets, matching the spider pattern of current and previous Shimano groupsets.
It delivers fast, stable front shifting and is suitable for most 9–12 speed road drivetrains.

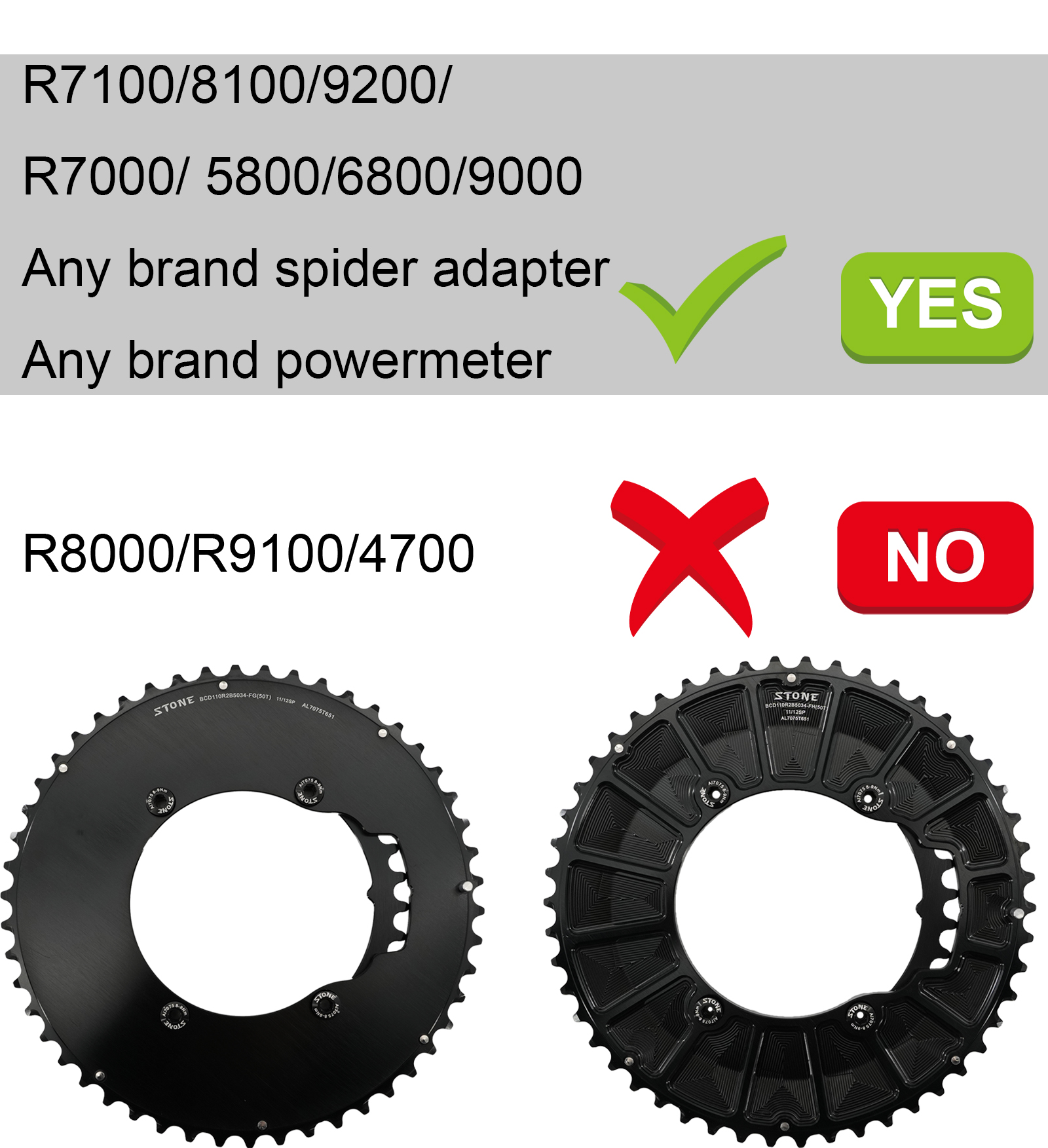

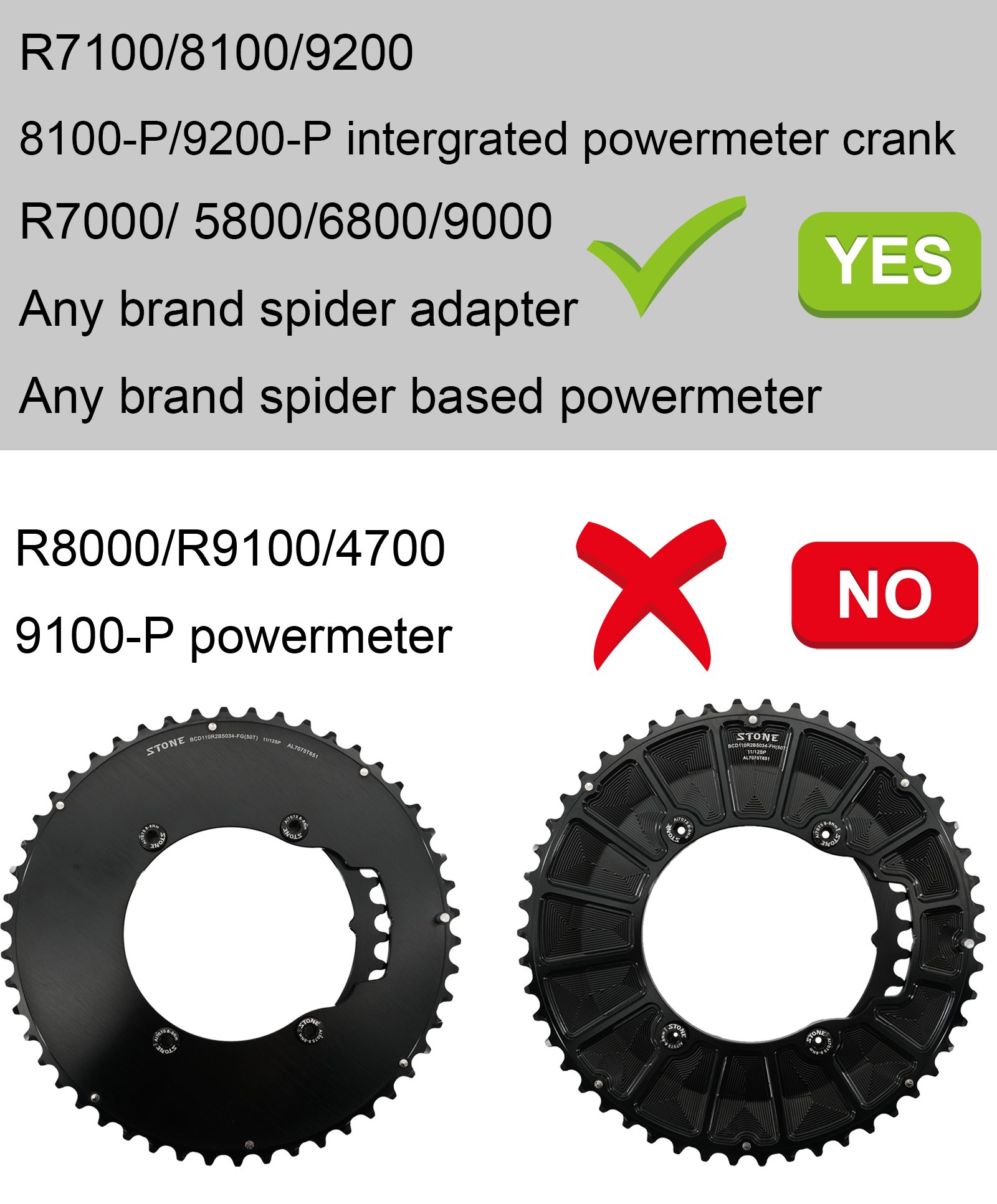

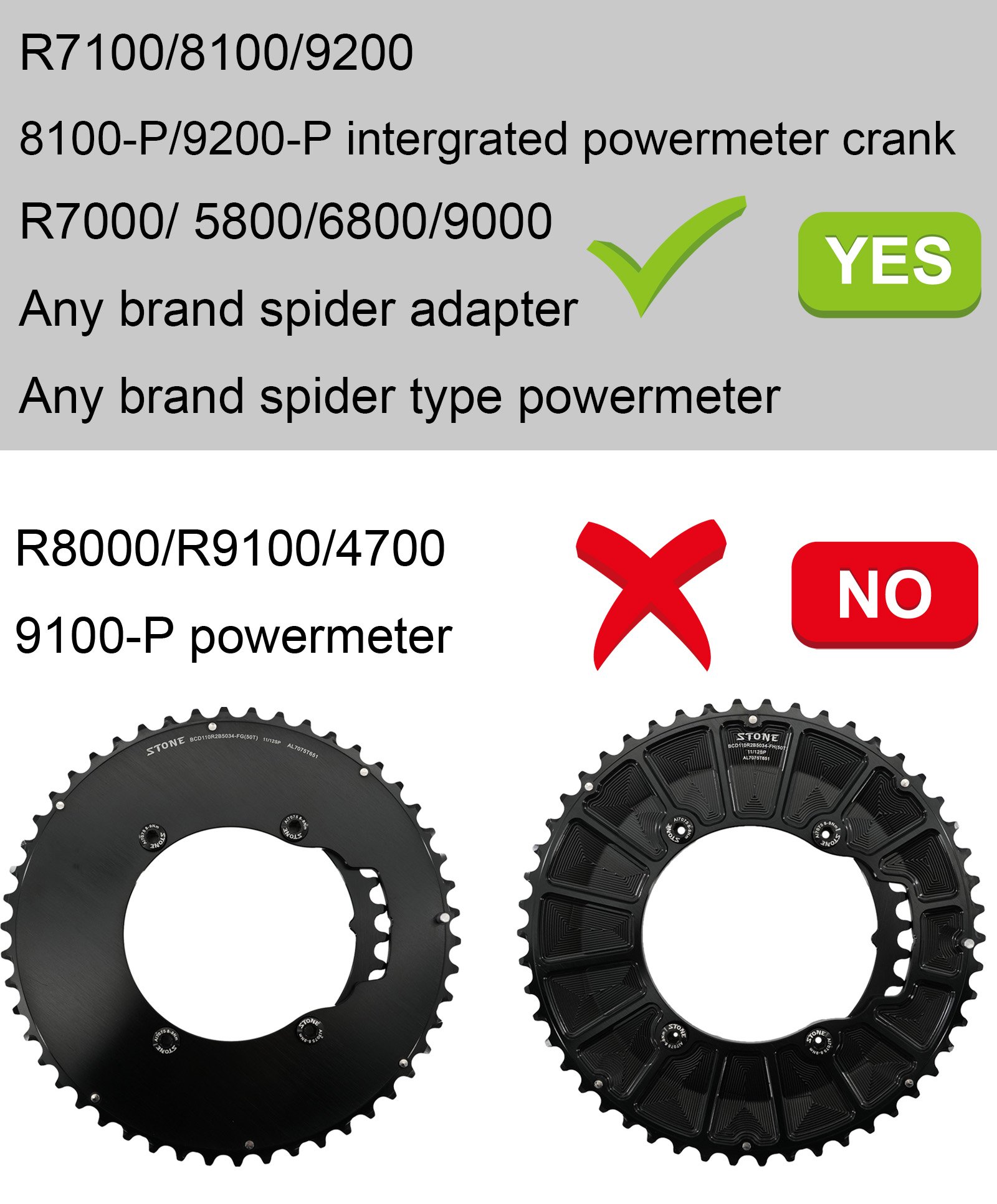

Compatibility
Shimano 12-Speed Series
• Shimano 105 R7100
• Shimano Ultegra R8100
• Shimano Dura-Ace R9200
Shimano Di2 Disc Series
• R7170
• R8170
• R9270
Previous Shimano Series
• R7000
• 5800
• 6800
• 9000
Compatible Spider-Type Power Meters (110BCD 4-Bolt)
• Sigeyi
• Xcadey
• Magene
Compatible Integrated Power Meter Cranksets
• Ultegra R8100-P
• Dura-Ace R9200-P
Not compatible with:
• Shimano R8000
• Shimano R9100
• Shimano Tiagra 4700
• Dura-Ace 9100-P power meter
Material & Manufacturing
Material: 7075-T651 high-strength aluminum
Manufacturing: full CNC precision machining
Color: Black
BCD: 110mm
Bolt pattern: 4-arm
Advantage: fast and stable chain shifting performance.
Chainring Size Options
46 / 32T
48 / 33T
50 / 34T
52 / 36T
53 / 39T
54 / 40T
55 / 40T
56 / 42T
58 / 44T
Weight
Standard Version
46/32T — 132g
48/33T — 153g
50/34T — 155g
52/36T — 184g
53/39T — 195g
54/40T — 199g
55/40T — 199g
56/42T — 209g
58/44T — 224g

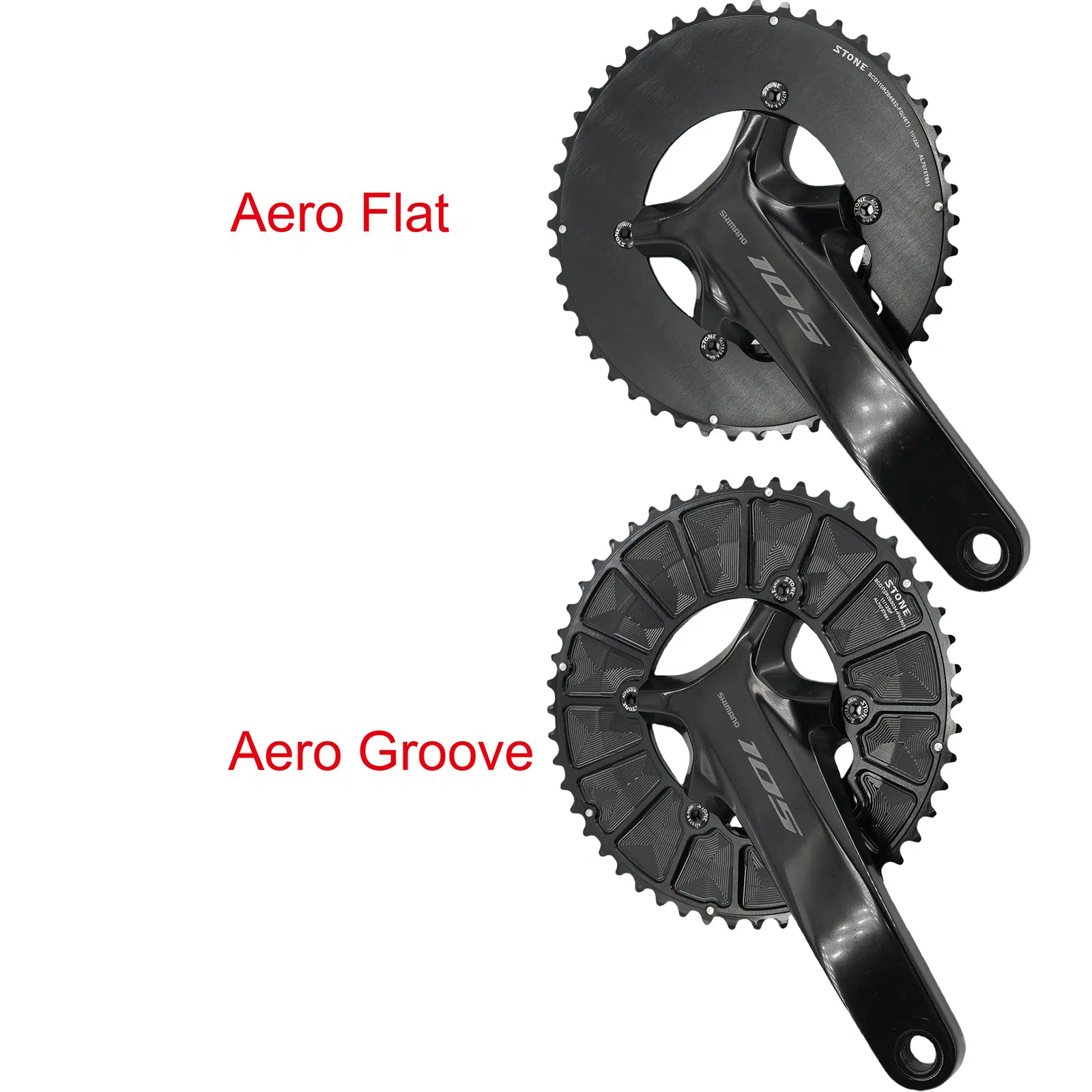

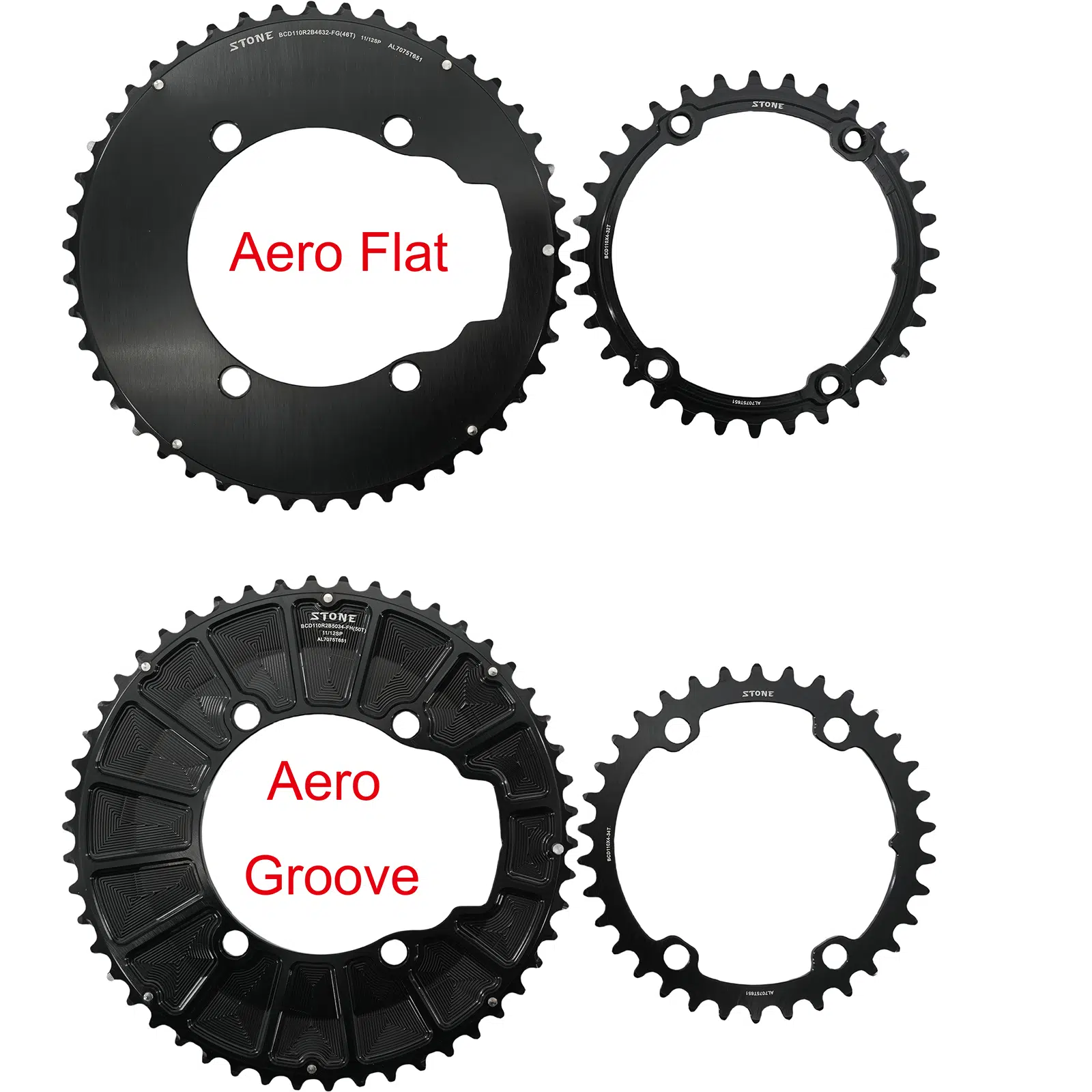

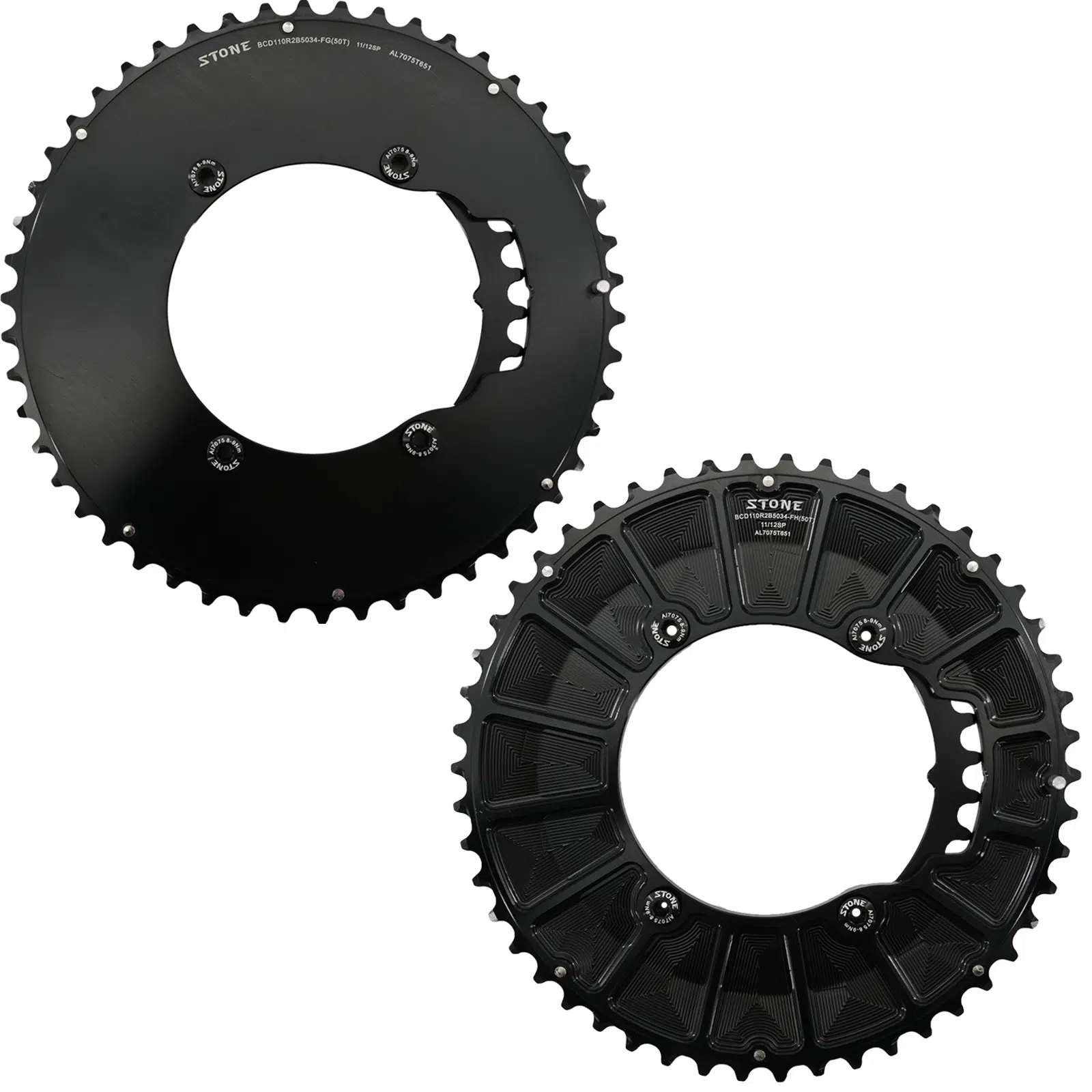

Aero Flat Version
46/32T — 129g
48/33T — 149g
50/34T — 163g
52/36T — 178g
53/39T — 197g
54/40T — 203g
55/40T — 214g
56/42T — 238g
58/44T — 257g
Offset
All sizes use a 0mm offset.
The 46/32T has a 2mm inner offset, which becomes 0mm once the two included spacers are installed with the chainring.
Important Notice

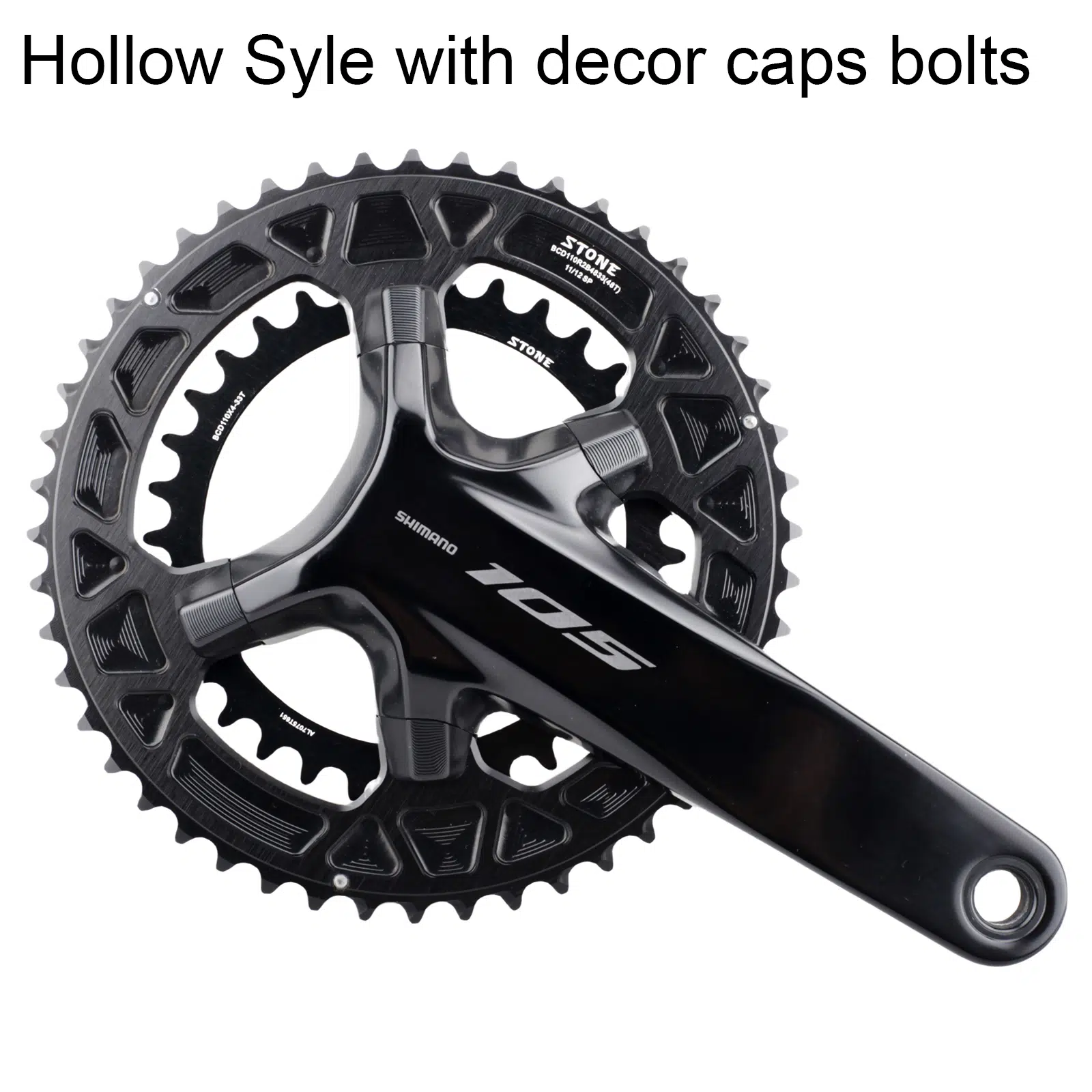

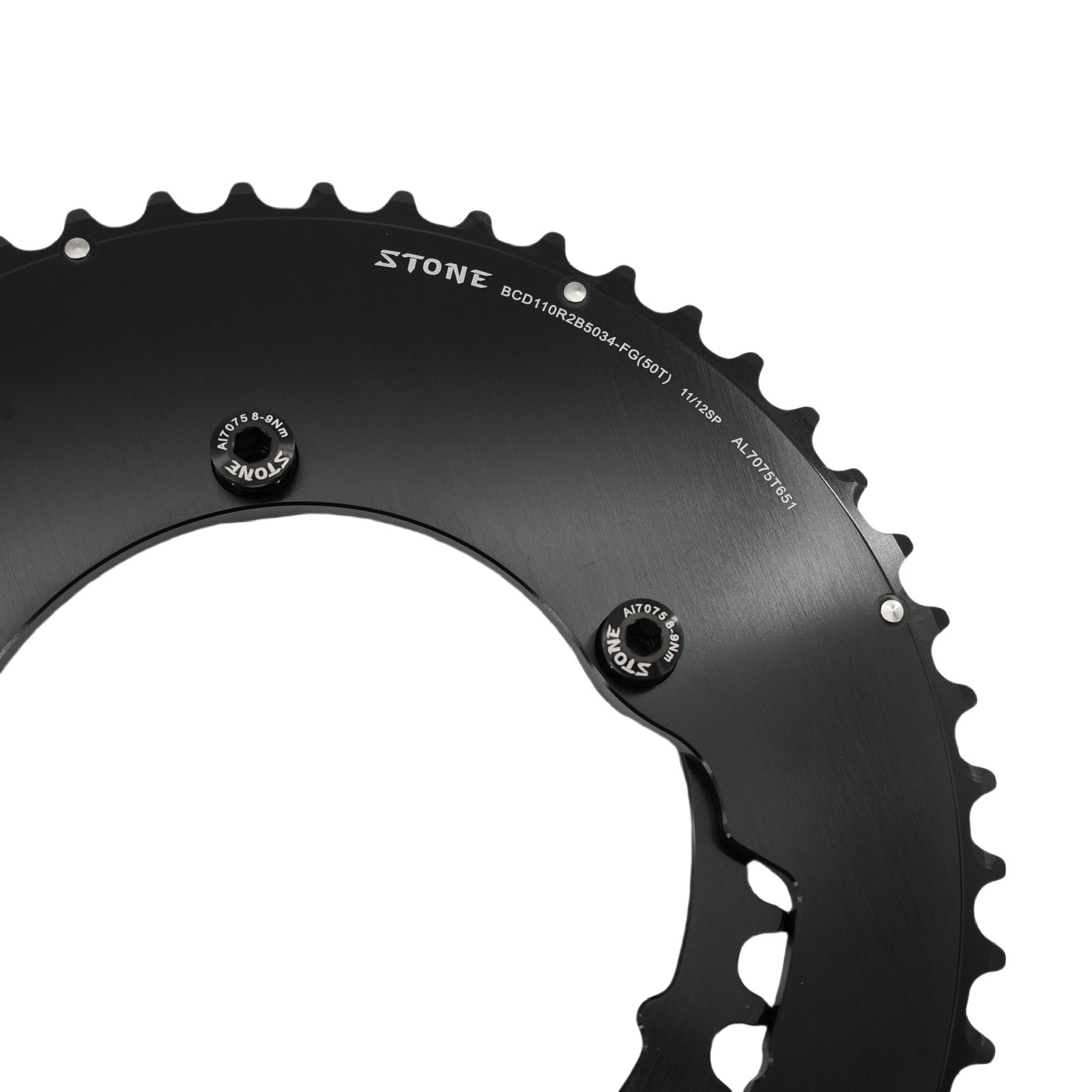

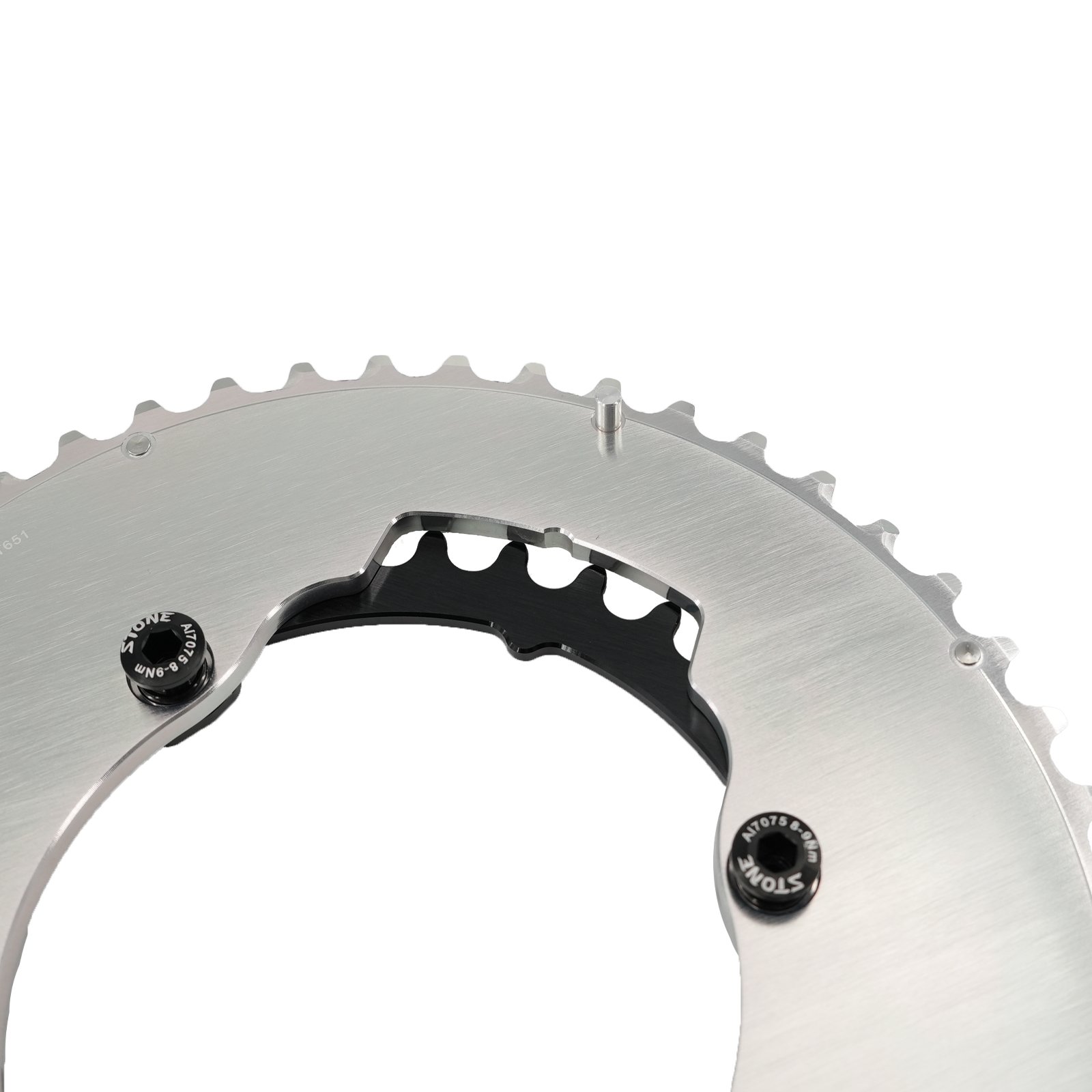

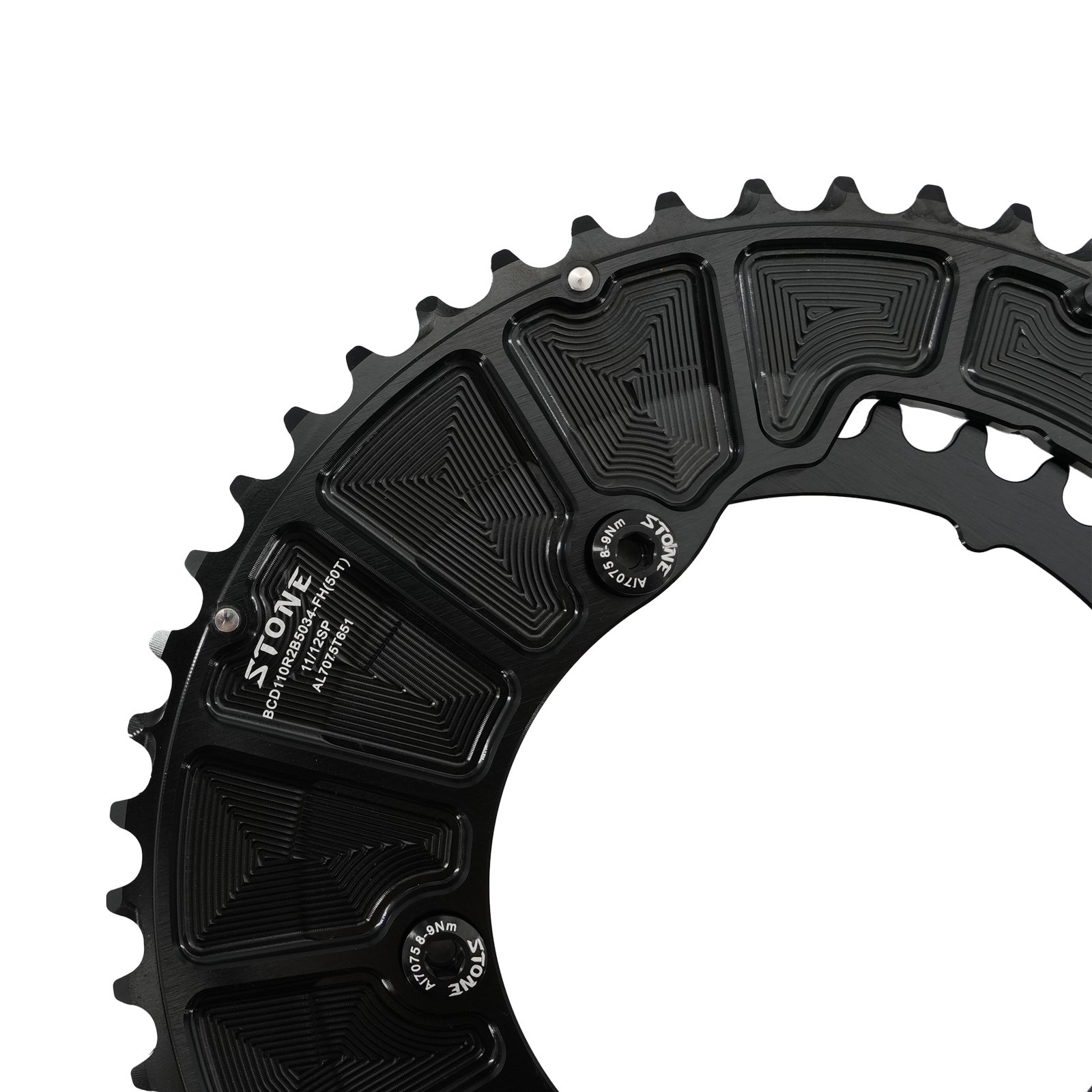

Decorative bolt sets fit STONE 2X chainrings only and cannot be used with other brands.

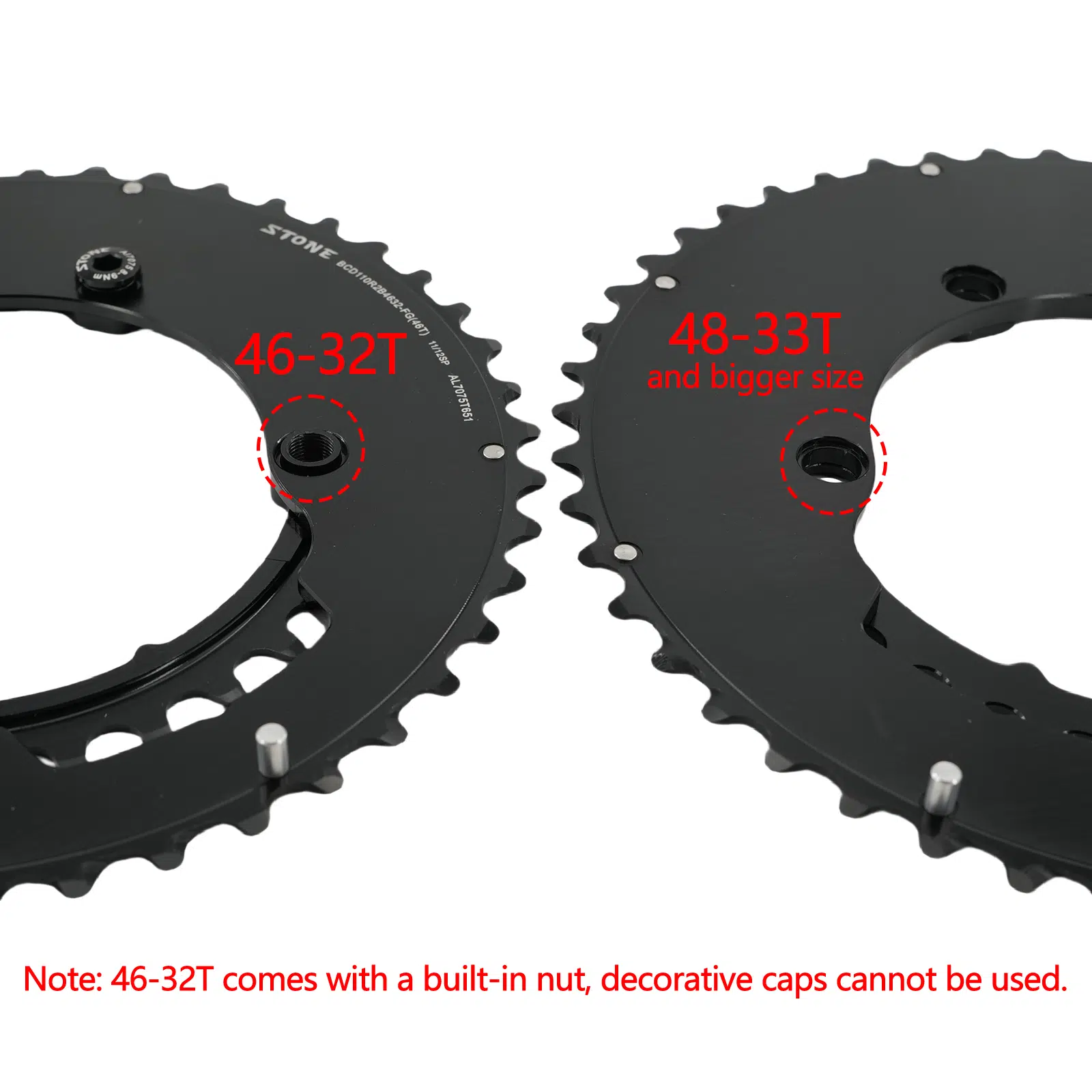

46T / 32T cannot use decorative bolts, because the 32T chainring uses a built-in female bolt structure.
If you choose a chainring larger than 54T or smaller than 48T, you may need a front derailleur extender to adjust the derailleur height.
